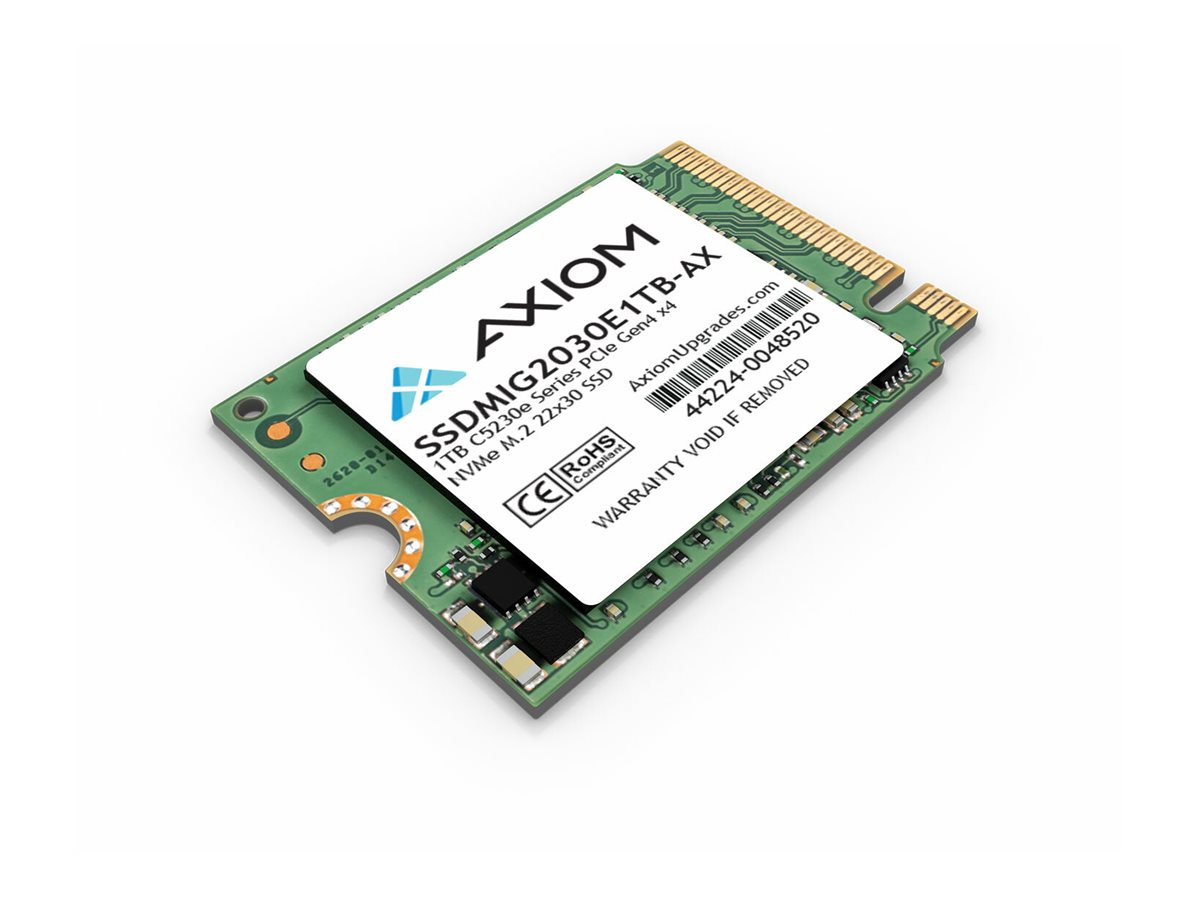

Axiom C5230e Series - SSD
MSRP$762.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Axiom C5230e Series - SSD
- encrypted
- 1 TB
- internal
- M.2 2230
- PCIe 4.0 x4 (NVMe)
- TCG Opal Encryption 2.0
- TAA Compliant
- for Dell Latitude 5420, 5431, 7330, 7440; OptiPlex 5080 (micro)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $762.00 |
| Mfr Part #: | SSDMIG2030E1TB-AX |
| SHI Part #: | 47549835 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Axiom Memory |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Axiom C5230e Series - SSD - encrypted - 1 TB - internal - M.2 2230 - PCIe 4.0 x4 (NVMe) - TCG Opal Encryption 2.0 - TAA Compliant - for Dell Latitude 5420, 5431, 7330, 7440; OptiPlex 5080 (micro) |
| Manufacturer | Axiom Memory |
| MSRP | $762.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 3 cm |
| Dimensions & Weight / Weight | 6.8 g |
| Dimensions & Weight / Width | 2.2 cm |
| Hard Drive / Capacity | 1 TB |
| Hard Drive / Form Factor | M.2 2230 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 4.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 4.0 x4 (NVMe) |
| Header / Brand | Axiom |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / Type | Solid state drive |
| Compatibility Information | |
| Designed For |
|
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 3.1 g @ 2-500 Hz |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2230 |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) |
| General | |
| Bytes per Sector | 512 |
| Capacity | 1 TB |
| Depth | 3 cm |
| Device Type | Solid state drive - internal |
| Features | 3D NAND Technology, Advanced Encrypting Standard (AES), Dynamic and Static Wear Leveling, dynamic SLC caching, Error Correction Code (ECC), Garbage Collection technology, Global Wear Leveling, HMB (Host Memory Buffer) supported, IG5220 controller, Low-Density Parity Check, NVM Express (NVMe) 1.4, NVM Express (NVMe) deallocate support, NVMe Secure Erase support, StaticDataRefresh Technology, S.M.A.R.T., 256-bit AES |
| Form Factor | M.2 2230 |
| Hardware Encryption | Yes |
| Interface | PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | Single-level cell (SLC) |
| Weight | 6.8 g |
| Width | 2.2 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS |
| TAA Compliant | Yes |
| Performance | |
| Drive Writes Per Day (DWPD) | 0.446 |
| Internal Data Rate | 5200 MBps (read) / 4370 MBps (write) |
| Maximum 4KB Random Read | 195000 IOPS |
| Maximum 4KB Random Write | 289000 IOPS |
| SSD Endurance | 500 TB |
| Power | |
| Power Consumption |
|
| Voltage Required | DC 3.3 V |
| Reliability | |
| MTBF | 1,500,000 hours |
| Non-Recoverable Errors | 1 per 10^15 |
