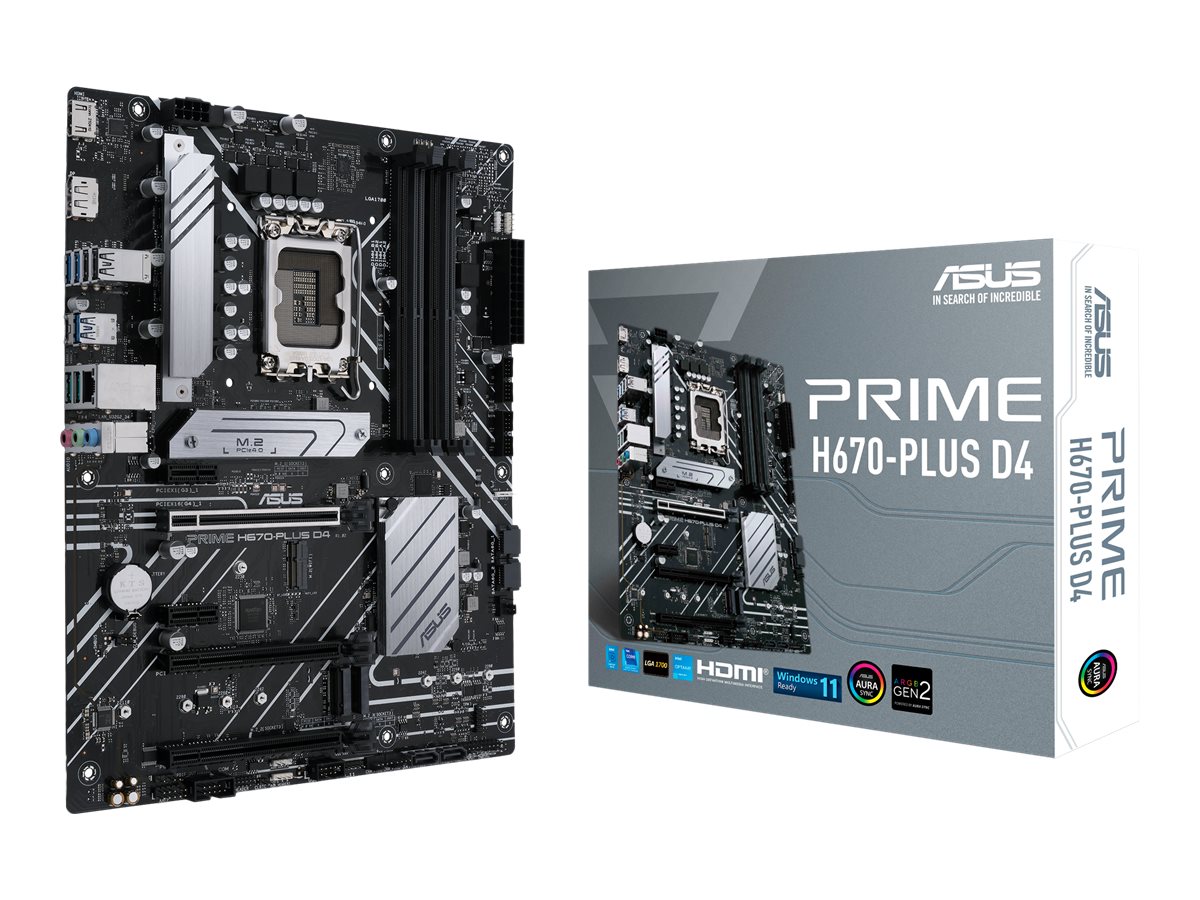

ASUS PRIME H670-PLUS D4
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ASUS PRIME H670-PLUS D4
- Motherboard
- ATX
- LGA1700 Socket
- H670 Chipset
- USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C Gen2
- 2.5 Gigabit LAN
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Mfr Part #: | PRIME H670-PLUS D4 |
| SHI Part #: | 44304232 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS PRIME H670-PLUS D4 - Motherboard - ATX - LGA1700 Socket - H670 Chipset - USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C Gen2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASUS |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | Intel H670 |
| Mainboard / Processor Socket | LGA1700 Socket |
| Networking / Data Link Protocol | 2.5 Gigabit Ethernet |
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| RAID Features | Intel Rapid Storage Technology |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| BIOS Type | AMI |
| Hardware Features | Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, ASUS OptiMem, Intel Optane Memory Ready, LANGuard, jack retasking, audio jack detect technology, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, ESD Guards, ASUS Overvoltage Protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, ASUS Aura Sync, Armoury Crate, ASUS Fan Xpert 2+, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), Preboot eXecution Environment (PXE), ASUS EZ DIY, CrashFree BIOS 3 |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| General | |
| Chipset Type | Intel H670 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - ATX |
| LAN | |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | DisplayPort 1.4 |
| Depth | 24.4 cm |
| Included Accessories | I/O back plate, 1 x M.2 rubber package, 3 x M.2 screws |
| Software Included | ASUS AURA Creator, ASUS CPU-Z, Norton AntiVirus (Trial), WinRAR, drivers & utilities |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 2133 MHz, 2400 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 4000 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 5000 MHz (O.C.), 5066 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR4 |
