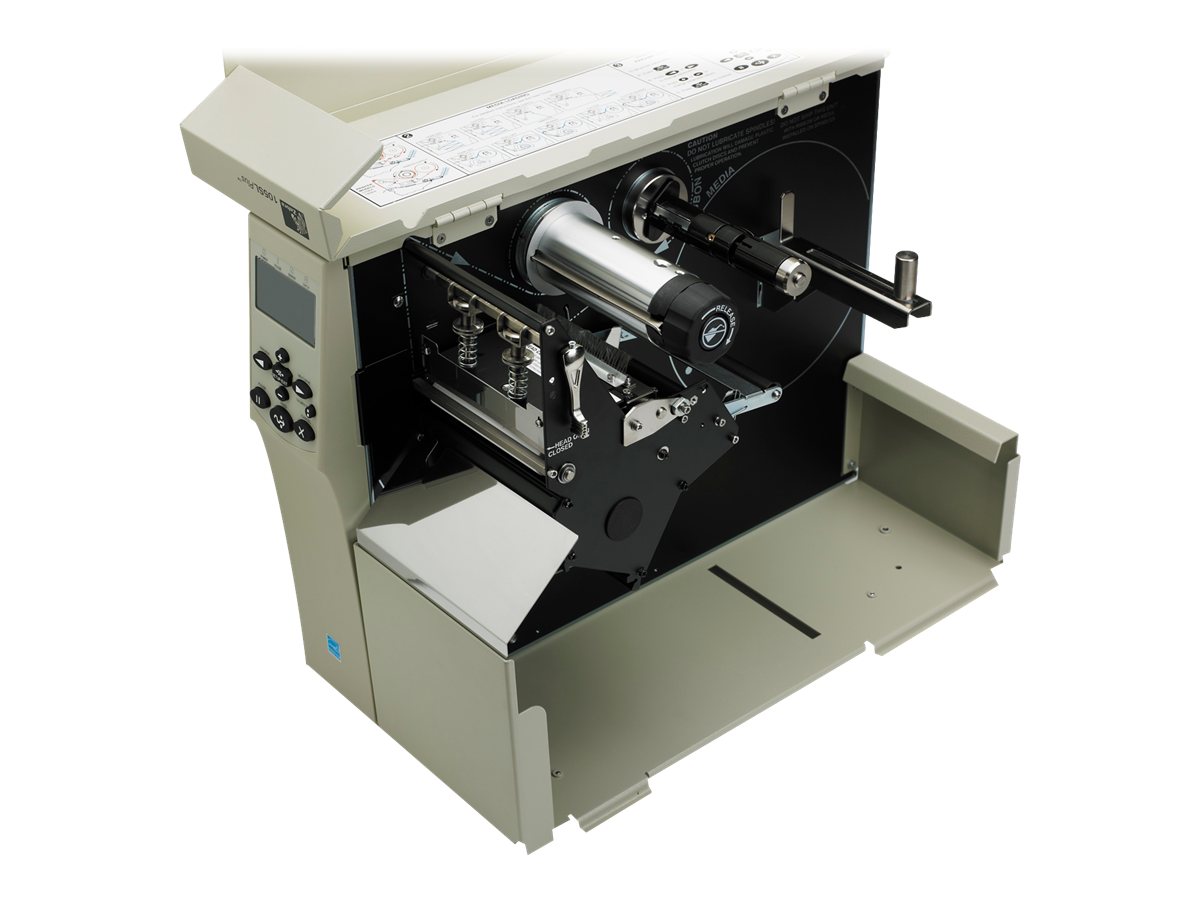

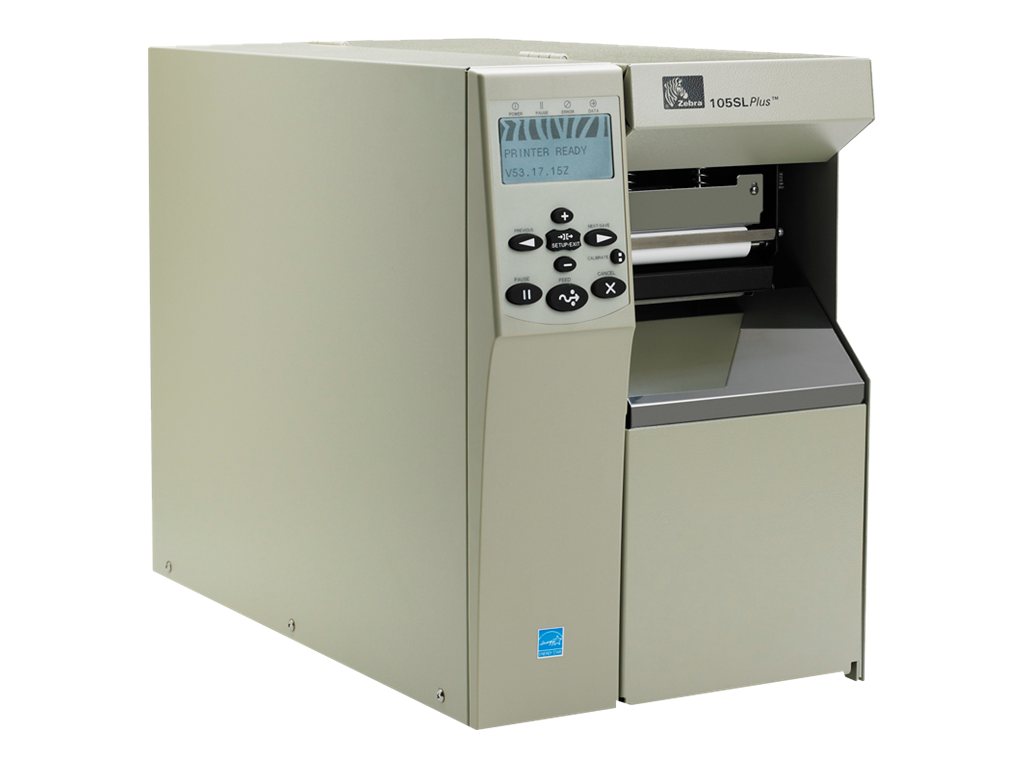

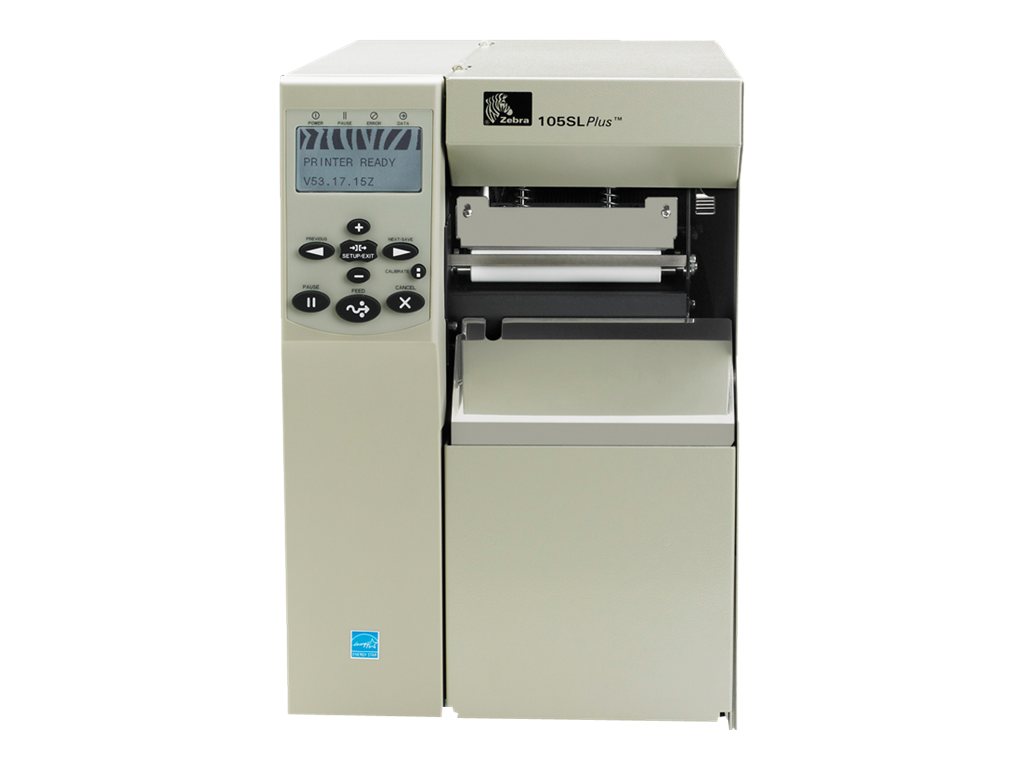

Zebra 105SL Plus - Label printer
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Zebra 105SL Plus - Label printer
- direct thermal / thermal transfer
- Roll (11.4 cm)
- 300 dpi
- up to 254 mm/sec
- parallel, USB 2.0, LAN, serial, Wi-Fi
- rewinder, peeler, tear bar
| Additional Details | |
|---|---|
| Mfr Part #: | 103-8K1-00200 |
| SHI Part #: | 27073608 |
| Category: | Thermal tape printers |
| UNSPSC: | 43212108 |
| Manufacturer: | Zebra Technologies |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Thermal tape printers |
| Description | Zebra 105SL Plus - Label printer - direct thermal / thermal transfer - Roll (11.4 cm) - 300 dpi - up to 254 mm/sec - parallel, USB 2.0, LAN, serial, Wi-Fi - rewinder, peeler, tear bar |
| Manufacturer | Zebra Technologies |
| UNSPSC | 43212108 |
| Main Specifications | |
| Dimensions & Weight / Depth | 51.75 cm |
| Dimensions & Weight / Height | 39.37 cm |
| Dimensions & Weight / Weight | 22.7 kg |
| Dimensions & Weight / Width | 26.19 cm |
| Header / Brand | Zebra |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | Gray |
| Networking / Type | Print server |
| Office Machine / Functions | Printer |
| Office Machine / Printing Output Type | Monochrome |
| Office Machine / Printing Technology | Direct thermal / thermal transfer |
| Office Machine / Type | Printer |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection |
|
| Power Device / Type | Power supply |
| Printer / Connectivity Technology | Wired |
| Printer / Type | Label printer |
| Scanner / Type | None |
| Dimensions & Weight | |
| Depth | 51.75 cm |
| Height | 39.37 cm |
| Weight | 22.7 kg |
| Width | 26.19 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Expansion / Connectivity | |
| Connections |
|
| Flash Memory | |
| Flash Memory | 8 MB |
| General | |
| Localization | North America |
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Media Handling | |
| Max Media Size | Roll (11.4 cm) |
| Max Media Size (Custom) | 114 mm x 991 mm |
| Max Printing Length | 2540 mm |
| Max Printing Width | 104 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.4 cm) |
| Media Sizes | Roll (2 - 11.4 cm) |
| Media Thickness Range | 0.076 mm - 0.305 mm |
| Media Type | Labels, continuous forms, die cut labels |
| Min Media Size (Custom) | 20 mm |
| Roll Core Diameter | 76 mm, 25.4 mm |
| Roll Maximum Outer Diameter | 203 mm |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, EN 61000-3-3, EN55024, EN55022 Class B, CCC, IEC 60950-1, KCC, GOST-R, S Mark, cTUVus, UkrSEPRO |
| Features | Rugged |
| Networking | |
| Network Controller Name | ZebraNet 10/100 Print Server and ZebraNet b/g Print Server |
| Networking | Print server |
| Power | |
| Frequency Required | 50/60 Hz |
| Power Device | Power supply - internal |
| Power Factor Correction | Yes |
| Printer | |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, CODABLOCK, ISBT 128, GS1 DataBar, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Code 2 of 5, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, TLC39, Plessey, Code 128B, Code 128C, Code 128A |
| Built-in Devices | Status LCD |
| Connectivity Technology | Wired |
| Features | Rewinder, transmissive media sensor, reflective media sensor, peeler, tear bar |
| Fonts | CG Triumvirate Bold Condensed, Swiss 721 |
| Fonts Included |
|
| Interface | Parallel, USB 2.0, LAN, serial, Wi-Fi |
| Language Simulation | ZPL, ZPL II, Extensible Mark-up Language (XML) |
| Max Resolution (B&W) | 300 dpi |
| Print Speed | Up to 254 mm/sec - max speed - 300 dpi |
| Printer Features | Multi-level Element Energy Equalizer (E3) |
| RAM | |
| RAM Installed (Max) | 16 MB |
| Technology / Form Factor | SDRAM |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, ZebraDesigner Pro, ZebraDesigner for XML, ZebraNet Bridge Enterprise, ZebraNet Utilities 7.0 |
