WD Red Pro WD241KFGX
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
WD Red Pro WD241KFGX
- Hard drive
- Enterprise
- 24 TB
- internal
- 3.5"
- SATA 6Gb/s
- 7200 rpm
- buffer: 512 MB
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | WD241KFGX |
| SHI Part #: | 49801968 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Western Digital |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | WD Red Pro WD241KFGX - Hard drive - Enterprise - 24 TB - internal - 3.5" - SATA 6Gb/s - 7200 rpm - buffer: 512 MB |
| Manufacturer | Western Digital |
| MSRP | $0.00 |
| UNSPSC | 43201803 |
| Main Specifications | |

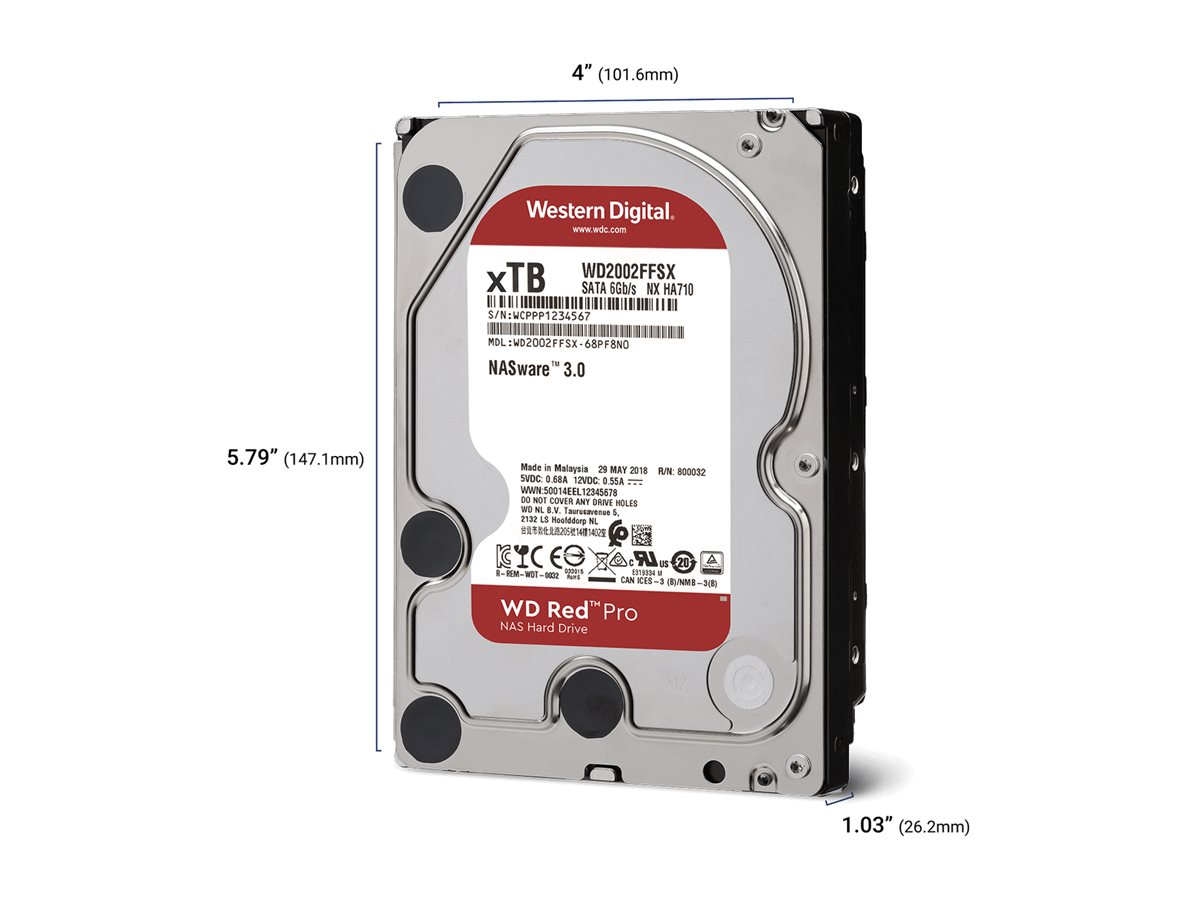

| Dimensions & Weight / Depth | 147 mm |
| Dimensions & Weight / Height | 26.1 mm |
| Dimensions & Weight / Weight | 670 g |
| Dimensions & Weight / Width | 101.6 mm |
| Hard Drive / Capacity | 24 TB |
| Hard Drive / Form Factor | 3.5" |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface | Serial ATA-600 |
| Header / Brand | WD |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Hard drive |
| Environmental Parameters | |
| Max Operating Temperature | 65 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (non-operating) | 200 g @ 2 ms |
| Shock Tolerance (operating) | 40 g @ 2 ms |
| Sound Emission | 25 dBA |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" |
| Interfaces | 1 x SATA 6 Gb/s |
| General | |
| Buffer Size | 512 MB |
| Capacity | 24 TB |
| Depth | 147 mm |
| Device Type | Hard drive - internal |
| Features | 24x7 continuous operation, Conventional magnetic recording (CMR), Rotational Vibration (RV) sensor, Multi-axis shock sensor, Dynamic fly height technology, Error Recovery Control, workload up to 550 TB per year, NASware technology, Helium technology, OptiNAND technology, Advanced Format technology, Native Command Queuing (NCQ) |
| Form Factor | 3.5" |
| Height | 26.1 mm |
| Interface | SATA 6Gb/s |
| Weight | 670 g |
| Width | 101.6 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | BSMI, ICES-003, NMB-003, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB Scheme, TUV, UL, ROHS Directive 2011/65/EU, ROHS Directive 2015/863/EU |
| Performance | |
| Drive Class | Enterprise |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 287 MBps |
| Spindle Speed | 7200 rpm |
| Power | |
| Power Consumption |
|
| Reliability | |
| 24x7 Operation | Yes |
| Load / Unload Cycles | 600,000 |
| MTBF | 2,500,000 hours |
| Non-Recoverable Errors | 10 per 10^15 |
