WD Red Pro WD103KFBX
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

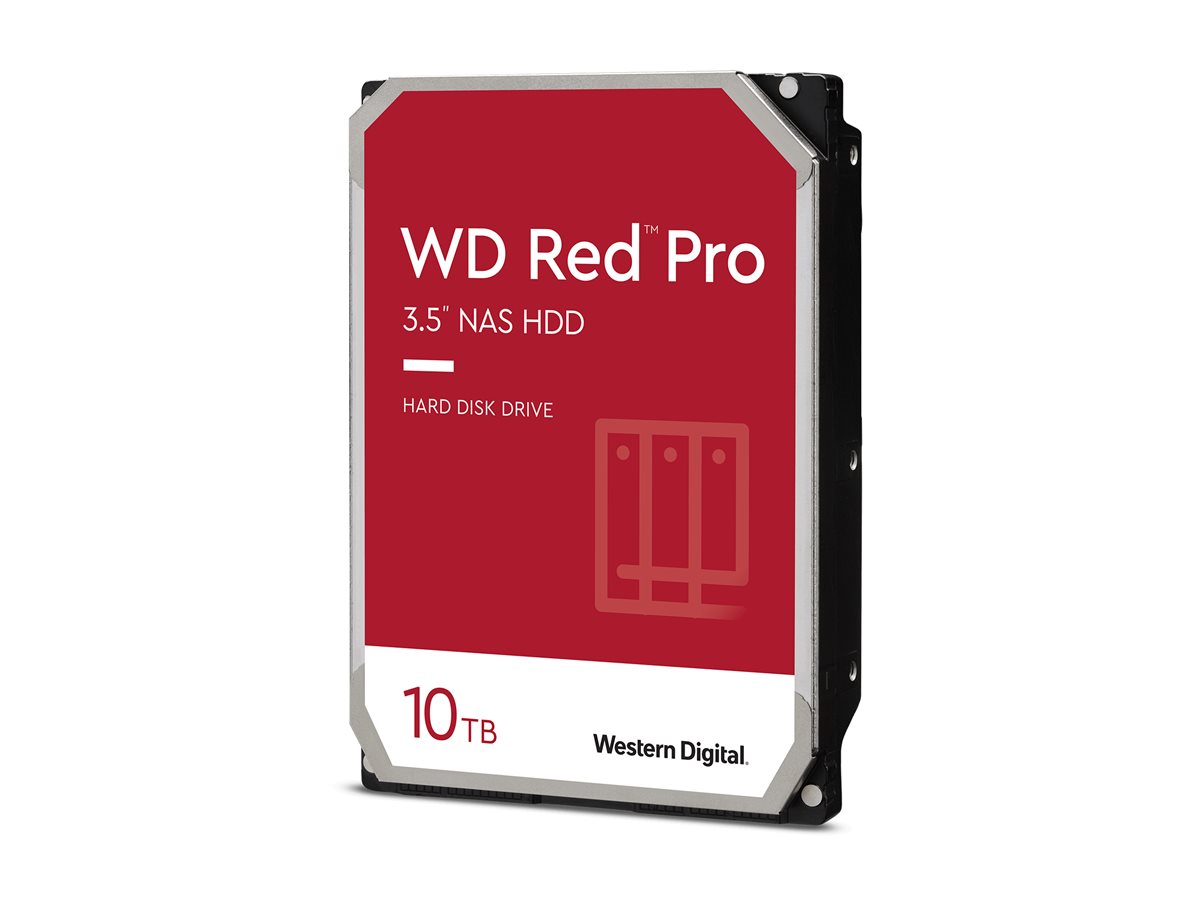

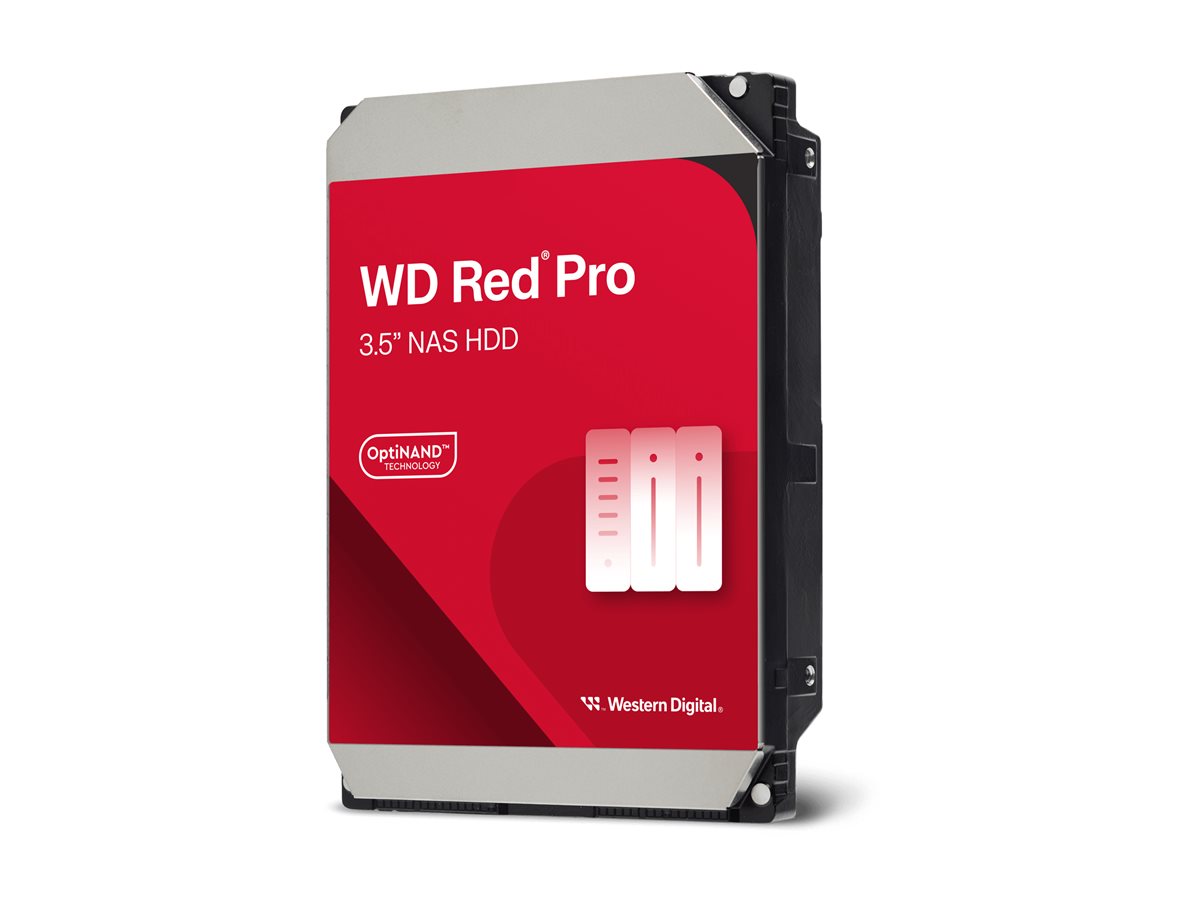

WD Red Pro WD103KFBX
- Hard drive
- Enterprise
- 10 TB
- internal
- 3.5"
- SATA 6Gb/s
- 7200 rpm
- buffer: 512 MB
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | WD103KFBX |
| SHI Part #: | 48667142 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Western Digital |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | WD Red Pro WD103KFBX - Hard drive - Enterprise - 10 TB - internal - 3.5" - SATA 6Gb/s - 7200 rpm - buffer: 512 MB |
| Manufacturer | Western Digital |
| MSRP | $0.00 |
| UNSPSC | 43201803 |
| Main Specifications | |

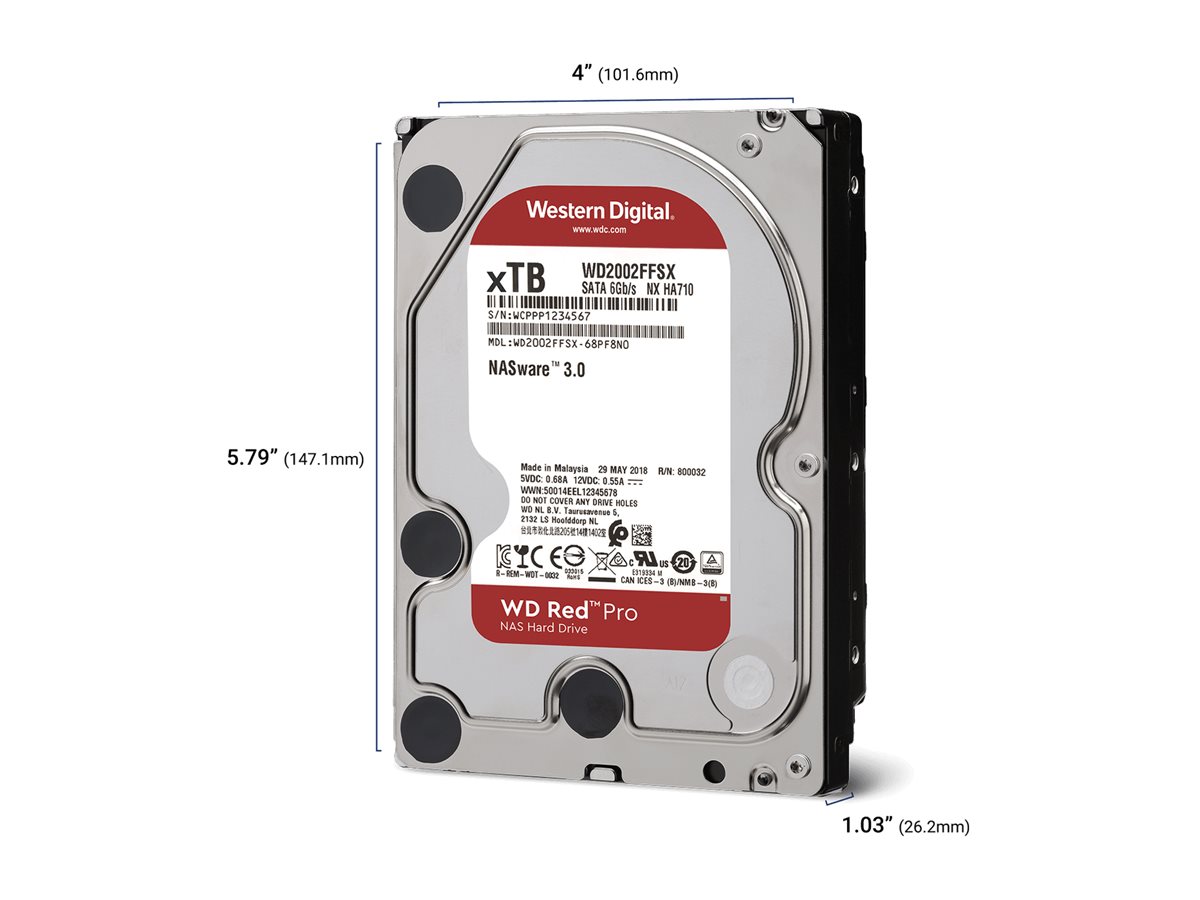

| Dimensions & Weight / Depth | 147 mm |
| Dimensions & Weight / Height | 26.1 mm |
| Dimensions & Weight / Weight | 750 g |
| Dimensions & Weight / Width | 101.6 mm |
| Hard Drive / Capacity | 10 TB |
| Hard Drive / Form Factor | 3.5" |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface | Serial ATA-600 |
| Header / Brand | WD |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Hard drive |
| Environmental Parameters | |
| Max Operating Temperature | 65 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (non-operating) | 250 g @ 2 ms |
| Shock Tolerance (operating) | 70 g @ 2 ms |
| Sound Emission | 34 dBA |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" |
| Interfaces | 1 x SATA 6 Gb/s |
| General | |
| Buffer Size | 512 MB |
| Capacity | 10 TB |
| Depth | 147 mm |
| Device Type | Hard drive - internal |
| Features | Workload up to 550 TB per year, Conventional magnetic recording (CMR), Air Drive Design, Advanced Format technology, Native Command Queuing (NCQ), RV Sensor, 24x7 continuous operation, Dynamic fly height technology, Multi-axis shock sensor, NASware 3.0 technology, 3D Active Balance Plus, Error Recovery Control |
| Form Factor | 3.5" |
| Height | 26.1 mm |
| Interface | SATA 6Gb/s |
| Weight | 750 g |
| Width | 101.6 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | RoHS, BSMI, ICES-003, NMB-003, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB Scheme, TUV, UL |
| Performance | |
| Drive Class | Enterprise |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 267 MBps |
| Spindle Speed | 7200 rpm |
| Power | |
| Power Consumption |
|
| Reliability | |
| 24x7 Operation | Yes |
| Load / Unload Cycles | 600,000 |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 10 per 10^15 |
