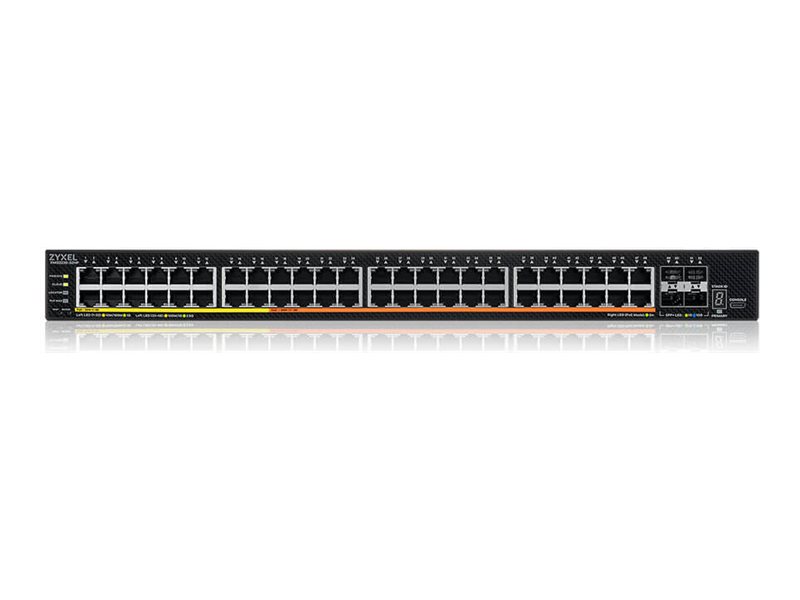

Zyxel XMG2230-52HP - Switch
MSRP$1,699.99
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Zyxel XMG2230-52HP - Switch
- L3
- managed
- 32 x 10/100/1000 + 16 x 100/1000/2.5G + 4 x 10 Gigabit SFP+
- rack-mountable
- PoE (960 W)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,699.99 |
| Mfr Part #: | XMG2230-52HP |
| SHI Part #: | 50641734 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | ZyXEL |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Zyxel XMG2230-52HP - Switch - L3 - managed - 32 x 10/100/1000 + 16 x 100/1000/2.5G + 4 x 10 Gigabit SFP+ - rack-mountable - PoE (960 W) |
| Manufacturer | ZyXEL |
| MSRP | $1,699.99 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 33 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 5.03 kg |
| Dimensions & Weight / Width | 44.1 cm |
| Header / Brand | ZyXEL |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 52 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 33 cm |
| Height | 4.4 cm |
| Weight | 5.03 kg |
| Width | 44.1 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 50.3 cm |
| Shipping Height | 9.5 cm |
| Shipping Weight | 7.33 kg |
| Shipping Width | 58 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2) |
| Capacity |
|
| Compliant Standards | IEEE 802.3at, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af |
| Device Type | Switch - 52 ports - L3 - managed |
| Enclosure Type | Rack-mountable |
| Encryption Algorithm | SSL |
| Features | 2KV ESD Protector, 6KV ESD Protector, 8KV ESD Protector, 2MB packet buffer, STP support, MSTP support, VLAN support, GVRP, sFlow, port mirroring, Broadcast Storm Control, Multicast Storm Control, IPv4 support, IPv6 support, flow control, RSTP support, tagged VLAN, CoS, Loop Guard, STP Root Guard, ErrDisable Recovery, dual firmware images, Protocol-based VLANs support, VLAN filtering, Port Security, MAC address filtering, IP address filtering, DHCP snooping, ARP inspection, IP-MAC binding, port isolation, IP source guard, ACL support, CPU protection, QoS, SPQ, WFQ, WRR queuing, DSCP support, IGMP snooping, IGMP throttling, MVR, IGMP filtering, IGMP proxy, MLD snooping, SNMP trap, ICMP, Syslog support, ZyXEL iStacking Technology, firmware upgradable, DHCP relay, NTP time synchronization, MIB, ZON |
| Flash Memory | 64 MB |
| Jumbo Frame Support | 12KB |
| MAC Address Table Size | 32K entries |
| Performance |
|
| PoE Budget | 960 W |
| Ports | 32 x 10/100/1000 + 16 x 100/1000/2.5G + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE |
| RAM | 1 GB |
| Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, HTTP, TFTP, CLI |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, MLD, static IP routing |
| Status Indicators | Power, status, system, stack ID |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | LVD, BSMI, FCC Part 15 A, EMC Class A, BSMI ENC, RoHS |
| MTBF | 389,089.55 hours |
| Rack Mounting Kit | Included |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
