D-Link DIS 210G-12P - Switch
MSRP$649.99
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

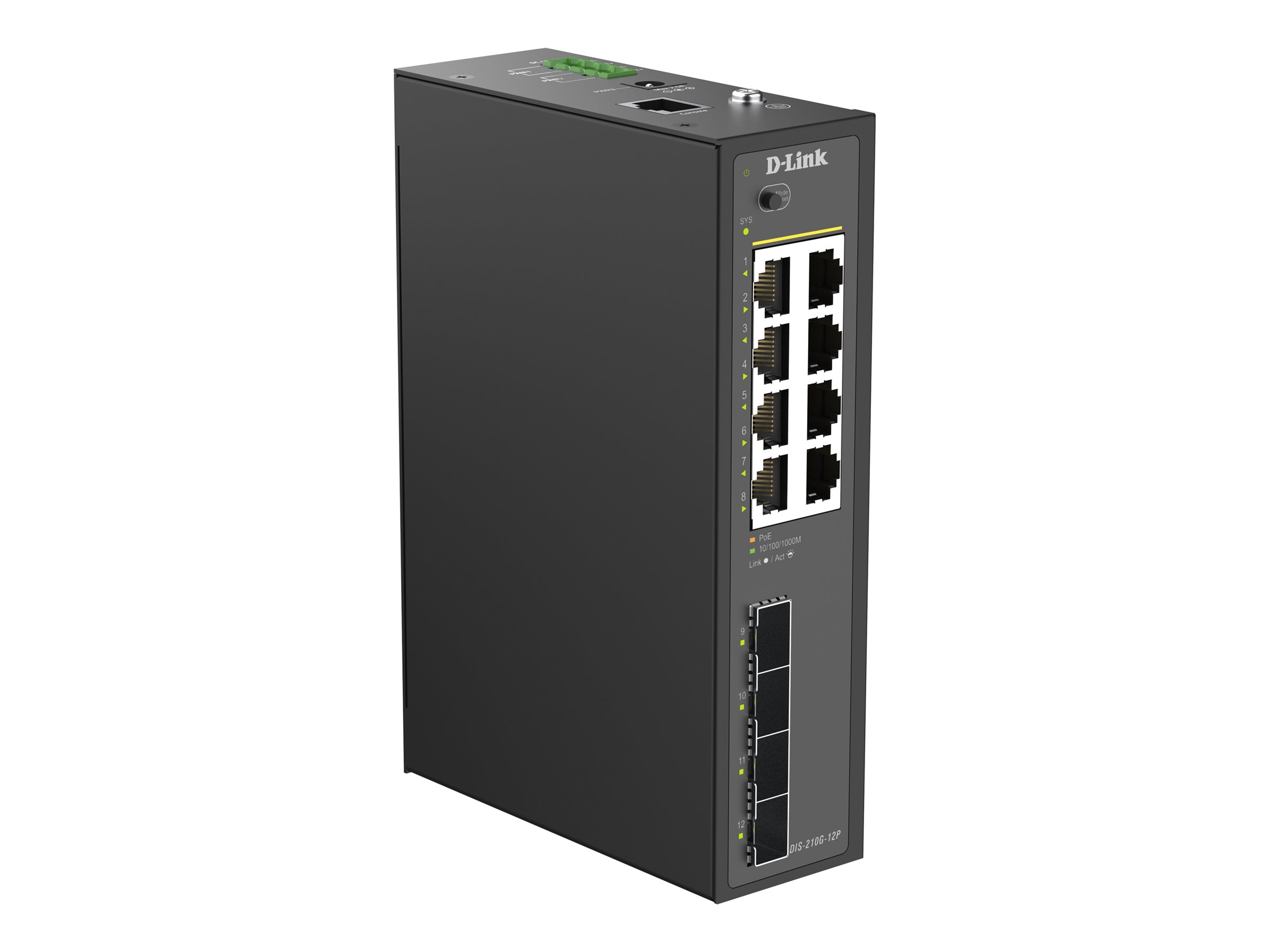

D-Link DIS 210G-12P - Switch
- industrial
- smart
- 8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
- DIN rail mountable
- PoE+ (240 W)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $649.99 |
| Mfr Part #: | DIS-210G-12P |
| SHI Part #: | 50538454 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | D-Link |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | D-Link DIS 210G-12P - Switch - industrial - smart - 8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - DIN rail mountable - PoE+ (240 W) |
| Manufacturer | D-Link |
| MSRP | $649.99 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.4 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 820 g |
| Dimensions & Weight / Width | 10.7 cm |
| Header / Brand | D-Link |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | DIN rail mountable |
| Networking / Ports Qty | 12 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 16.4 cm |
| Height | 4.4 cm |
| Weight | 820 g |
| Width | 10.7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH |
| Humidity Range Storage | 5 - 95% RH |
| Max Operating Temperature | 75 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | Secure Shell v.2 (SSH2), RADIUS, TACACS+ |
| Capacity |
|
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1ag, IEEE 802.3ah, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.1v, IEEE 802.1x |
| Device Type | Switch - 12 ports - smart |
| Enclosure Type | DIN rail mountable |
| Encryption Algorithm | TLS 1.2, MD5 |
| Features | Fanless, 6KV Surge protection, ERPS, CFM, STP support, Rapid Reconfiguration of Spanning Tree (RSTP), MSTP support, port mirroring, Link Aggregation, bandwidth control, Broadcast Storm Control, IGMP snooping, MLD snooping, loop detection, EEE, auto-uplink (auto MDI/MDI-X), store and forward, metal housing, LLDP, LLDP-MED, STP BPDU Filtering, HOL Blocking Prevention, RSPAN, VLAN mirroring, port-based VLAN, GVRP, MAC based VLAN, Voice VLAN, SPQ, WRR, DoS attack prevention, IP source guard, DAI, DHCP snooping, 802.1x authentication, Cable Diagnostics Function, NTP, SNTP, ICMPv4/ICMPv6 support, reset button, wall mountable |
| Flash Memory | 16 MB |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 8K entries |
| Performance |
|
| PoE Budget | 240 W |
| Ports | 8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 128 MB |
| Remote Management Protocol | CLI, HTTPS, Telnet, DHCP, RMON 1, RMON 2, SNMP, SNMP 2, SNMP 3 |
| Routing Protocol | Static IP routing, IGMP |
| Status Indicators | Power, system, link/activity/speed |
| Subtype | Gigabit Ethernet |
| Miscellaneous | |
| Cables Included | 1 x console cable |
| Compliant Standards | IP40, ITU Y.1731, cUL, CB, BSMI, VCCI Class A, EMI FCC Class A, IC, RCM |
| Included Accessories | DC terminal block, DIN-rail mounting kit, 4-port dust covers(SFP) |
| MTBF | >200,000 hours |
| Power | |
| Power Device | External power adapter (not included) |
| Power Redundancy | Yes |
| Voltage Required | DC 48 - 55 V |
