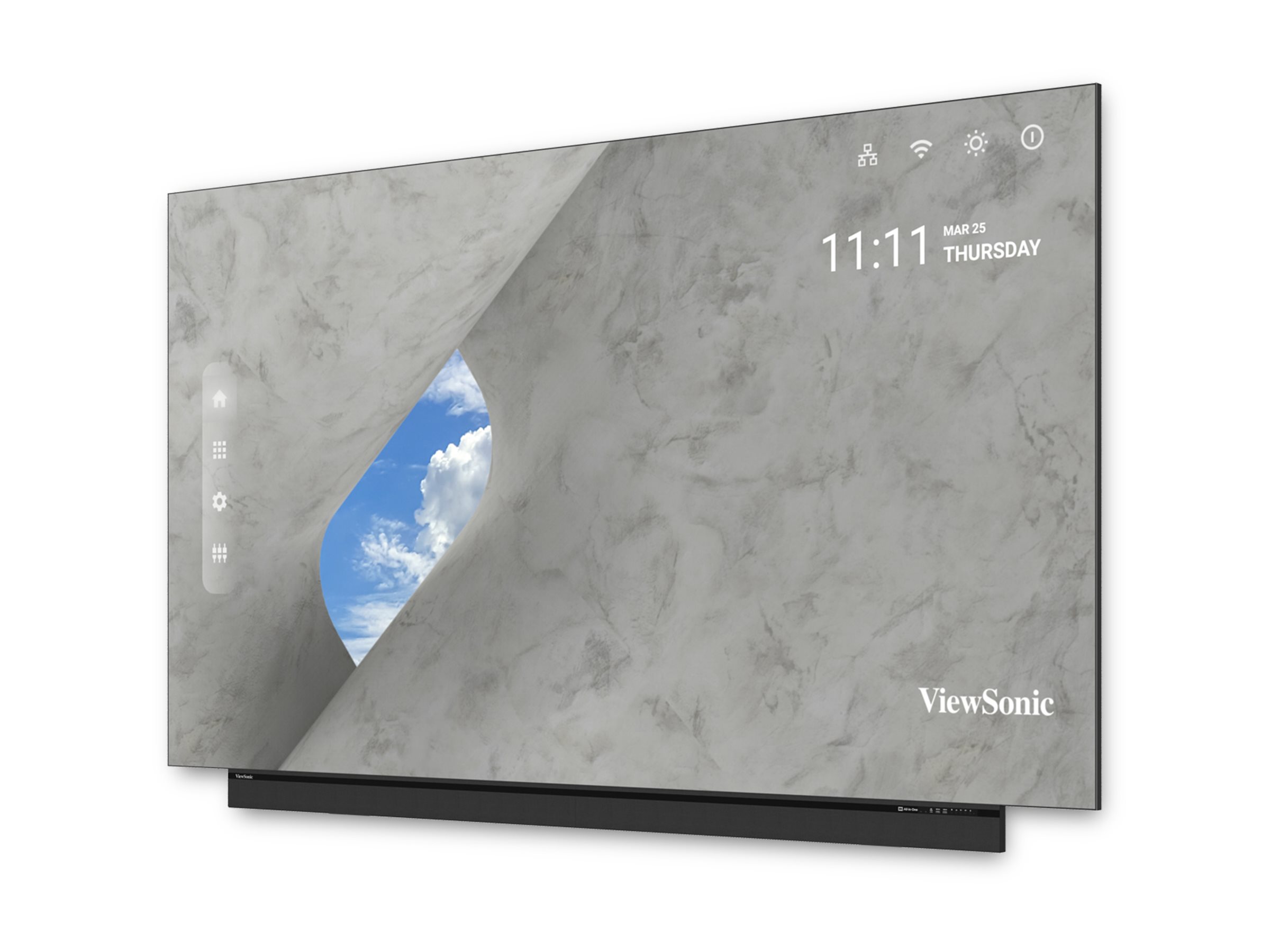

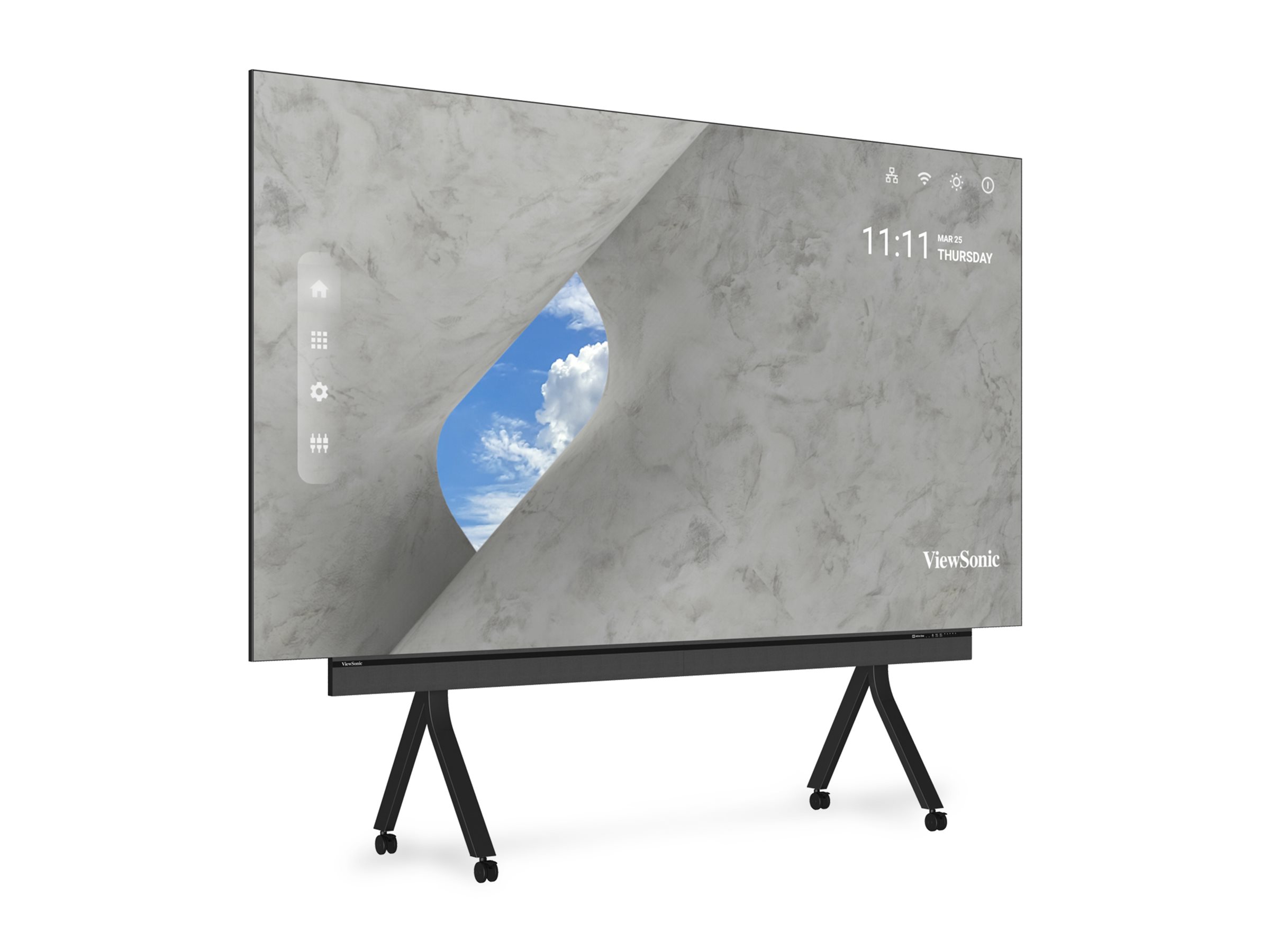

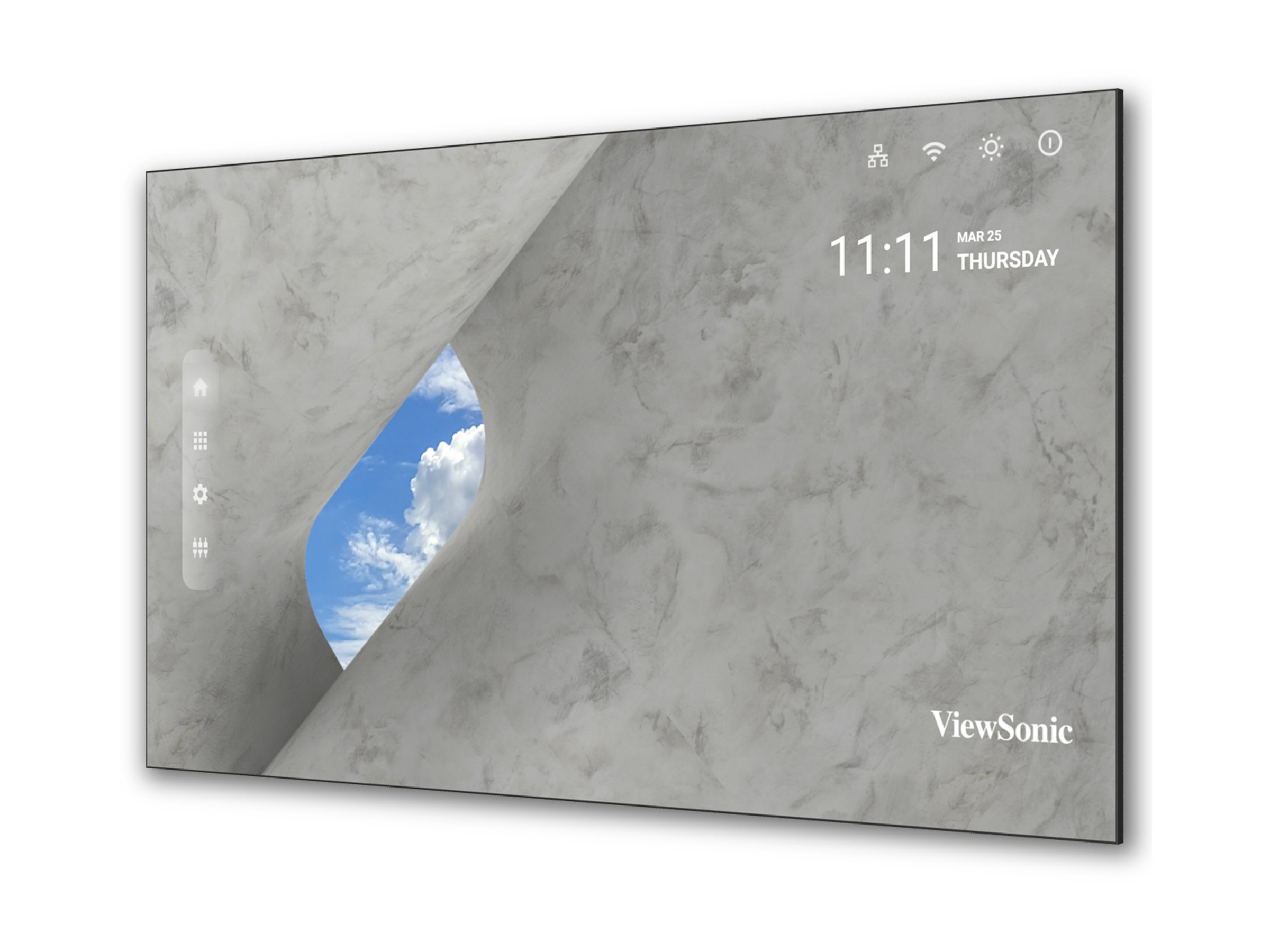

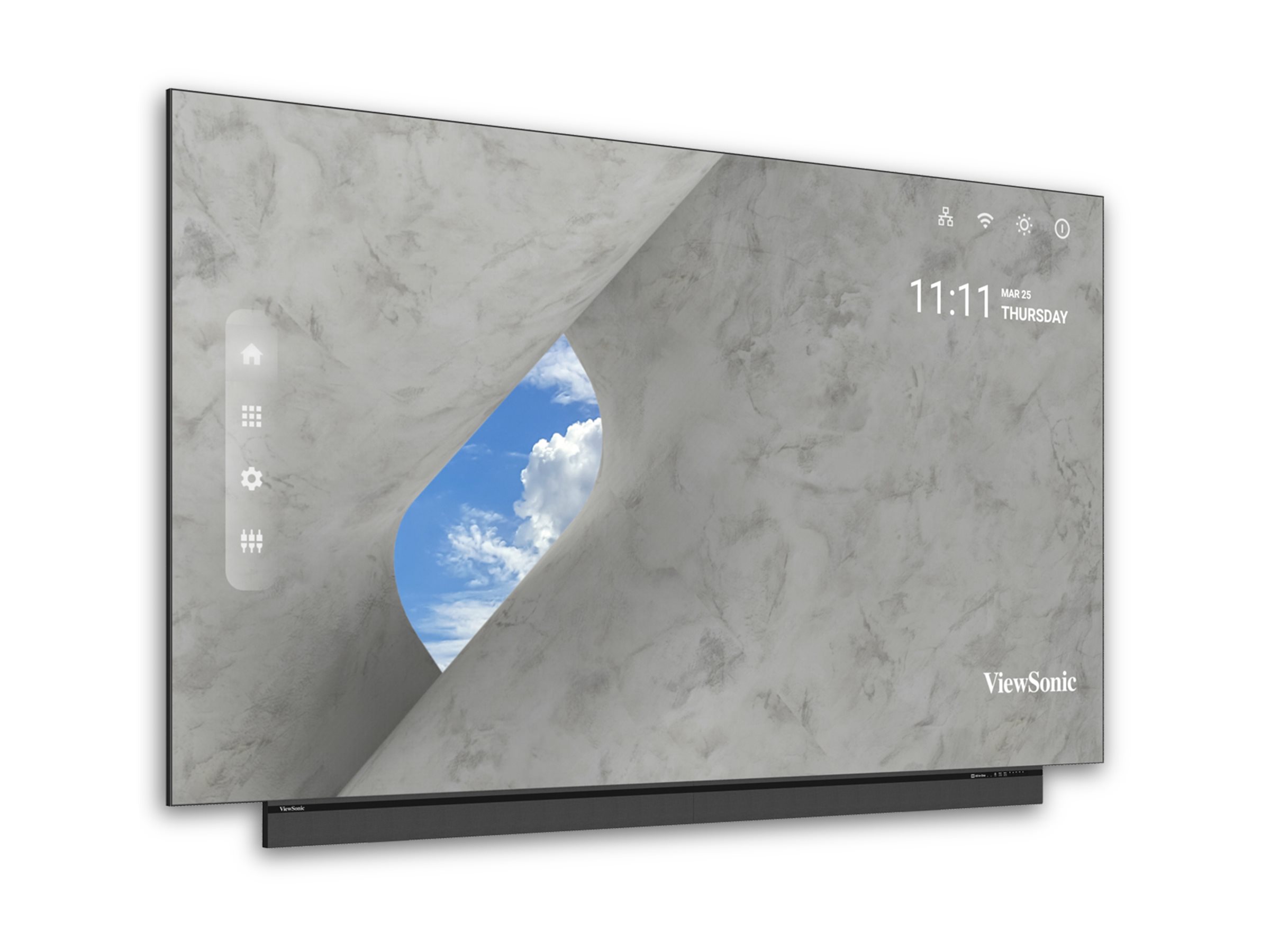

163IN PRECONFIGURED 4K ALL-IN-O WITH 3840X2160 3840HZ HDMI
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
163IN PRECONFIGURED 4K ALL-IN-O WITH 3840X2160 3840HZ HDMI
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | LDP163-091C |
| SHI Part #: | 50413738 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | ViewSonic |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | 163IN PRECONFIGURED 4K ALL-IN-O WITH 3840X2160 3840HZ HDMI |
| Manufacturer | ViewSonic |
| UNSPSC | 43211902 |
| Main Specifications | |
| Height | 42.52 |
| Length | 47.24 |
| UPC | 0766907033168 |
| Width | 89.76 |
| Audio System | |
| Output Power / Total | 60 Watt |
| Speaker System | 2 speakers |
| Speakers | 2 x speaker - 30 Watt |
| Connections | |
| Connector Type |
|
| Dimensions & Weight (Shipping) | |
| Depth (Shipping) | 120 cm |
| Height (Shipping) | 108 cm |
| Weight (Shipping) | 361 kg |
| Width (Shipping) | 228 cm |
| Dimensions & Weight Details | |
| Dimensions & Weight Details |
|
| Display | |
| Additional Features | Picture-in-picture (PIP), picture-by-picture (PBP), LAN Control, 13-bit LED grayscale, Hot-Swappable LED Modules, LED Module Quantity: 288 |
| Backlight Life | 100,000 hours |
| Brightness | 600 cd/m² |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate |
| Image Aspect Ratio | 16:9 |
| Image Contrast Ratio | 10000:1 |
| LCD Backlight Technology | Direct View LED |
| LED Type | Chip On Board (CoB) |
| Pixel Pitch | 0.93 mm |
| Resolution | 3840 x 2160 |
| Viewing Angle | 170° |
| Viewing Angle (Vertical) | 170° |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Depth | 4.1 cm |
| Design | Modular design |
| Diagonal Class | 163" |
| HDMI Ports Qty | 4 ports |
| Height | 217.1 cm |
| Operating System | Android OS 9.0 |
| Picture Enhancements | 120% Rec.709 color gamut |
| Power Consumption (Max) | 2154 Watt |
| Power Consumption Operational | 647 Watt |
| Product Type | LED-backlit LCD flat panel display |
| Series | LDP Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| Weight | 232 kg |
| Width | 361.2 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Media Player | |
| Configuration | Rockchip RK3399 - 4 GB DDR4 - 32 GB (available 26 GB) - ARM Mali-T860MP4 |
| USB Port | Yes |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | IP54 front, IK08 front, cTUVus, FCC, RoHS |
| Included Accessories | Wall mount, maintenance tool LD-MK-004, maintenance tool LD-MK-006 |
| Network & Internet Multimedia | |
| Connectivity | LAN, Wi-Fi |
| Power | |
| Input Voltage | AC 100-120 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| Power Device | Power supply |
| Remote Control | |
| Type | Remote control |
| Stands & Mounts | |

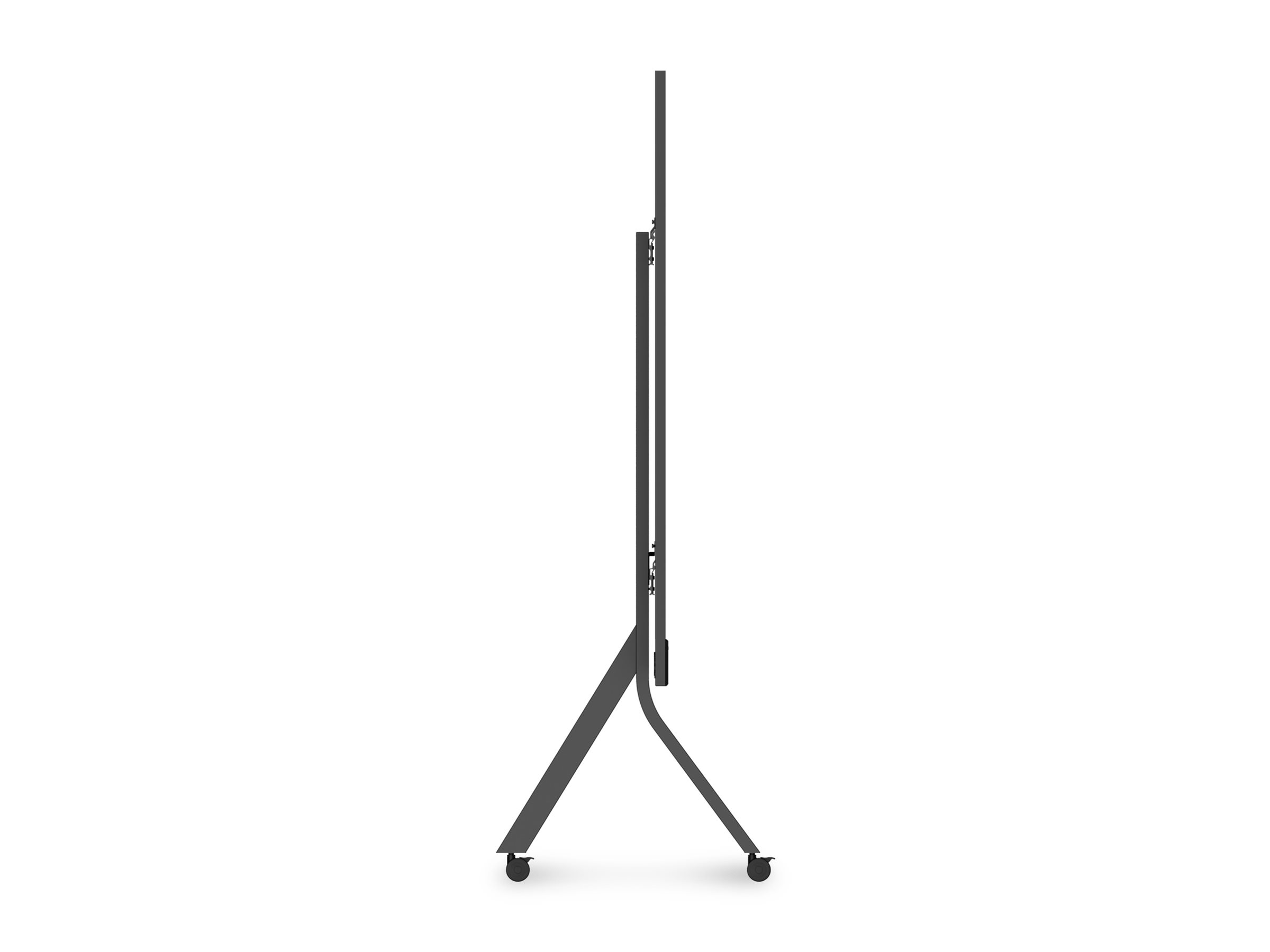

| Stand | Optional |
