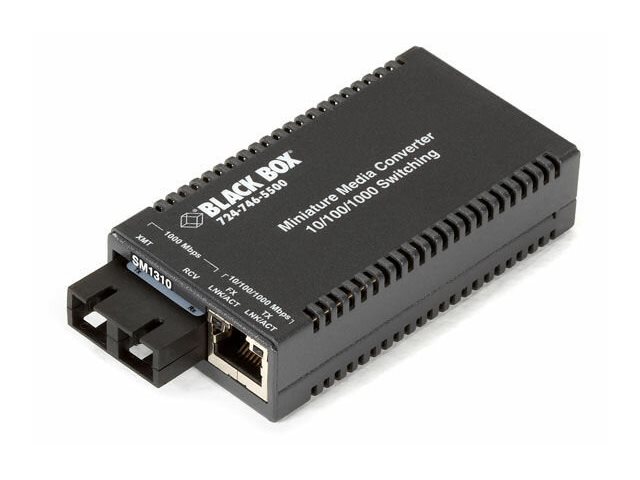

Black Box MultiPower Miniature
MSRP$668.52
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Black Box MultiPower Miniature
- Fiber media converter
- 1GbE
- 10Base-T, 100Base-TX, 1000Base-T, 1000Base-LX
- RJ-45 / SC single-mode
- up to 10 km
- 1310 nm
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $668.52 |
| Mfr Part #: | LGC121A-R4 |
| SHI Part #: | 49486834 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Black Box |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Black Box MultiPower Miniature - Fiber media converter - 1GbE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-LX - RJ-45 / SC single-mode - up to 10 km - 1310 nm |
| Manufacturer | Black Box |
| MSRP | $668.52 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.6 cm |
| Dimensions & Weight / Height | 2 cm |
| Dimensions & Weight / Weight | 100 g |
| Dimensions & Weight / Width | 4.6 cm |
| Header / Brand | Black Box |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 8.6 cm |
| Height | 2 cm |
| Weight | 100 g |
| Width | 4.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Miscellaneous | |
| Compliant Standards | RoHS, EN 62368, ESD, WEEE Directive 2002/96/EC |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-LX |
| Compliant Standards | IEEE 802.3, IEEE 802.3u |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Features | Auto-uplink (auto MDI/MDI-X), full duplex capability, auto-negotiation, Link Fault Pass-Through (LFPT) support |
| Max Transfer Distance | 10 km |
| Optical Wave Length | 1310 nm |
| Status Indicators | Transmit, receive, link/activity |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
