Hardware Audio/Visual
Add to My Favorites
Audio/Visual

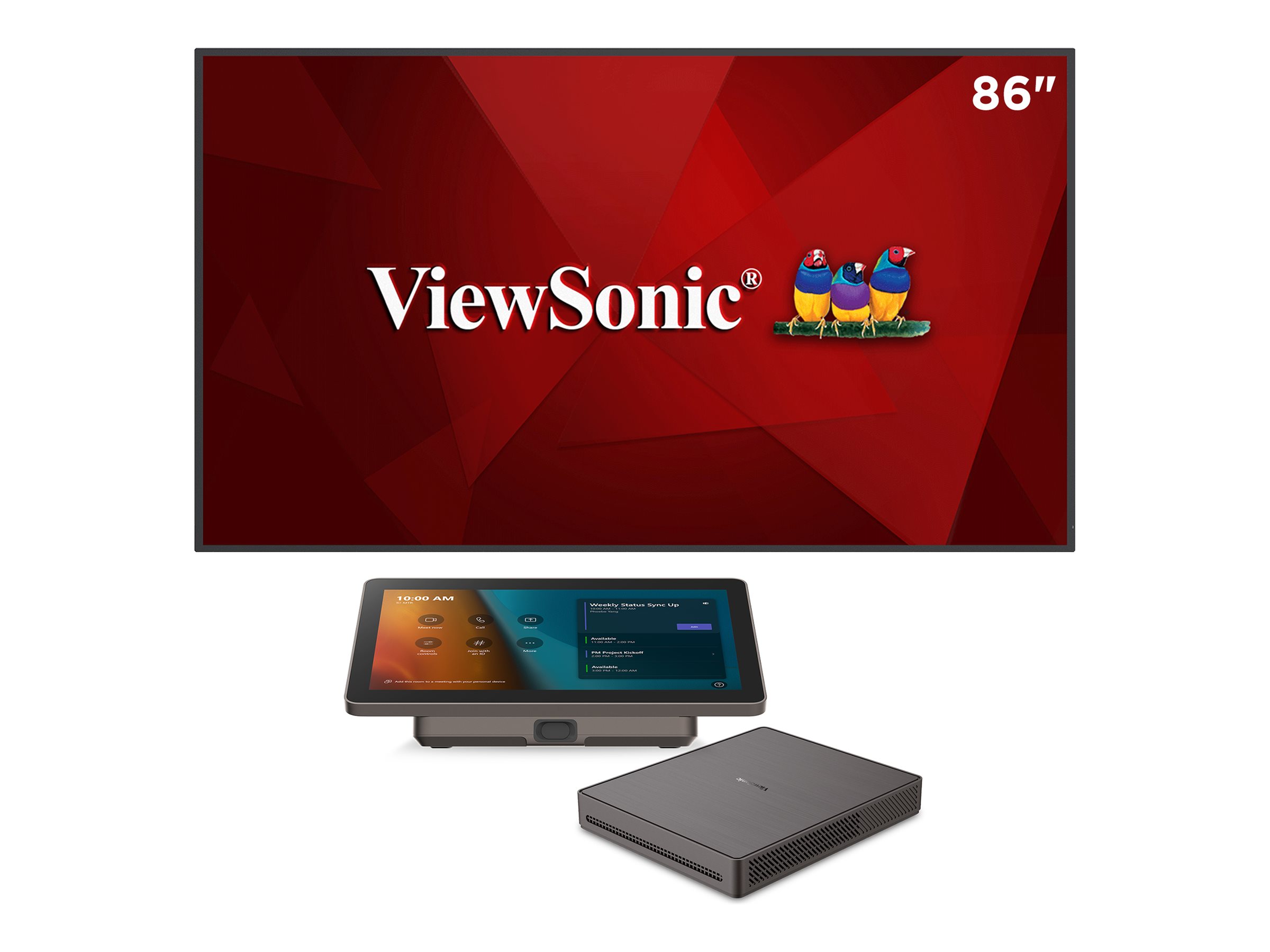

Viewsonic TeamJoin CDE8630-MTRC

$4,326.94
Viewsonic TeamJoin CDE8630-MTRC
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • For Microsoft Teams Rooms
  • video conferencing kit
  • Certified for Microsoft Teams Rooms
Contracts
   DIR-CPO-5094
Viewsonic TeamJoin CDE8630-MTRC
  • For Microsoft Teams Rooms
  • video conferencing kit
  • Certified for Microsoft Teams Rooms
  Additional Details
Price: $4,326.94
Mfr Part #: CDE8630-MTRC
SHI Part #: 48408446
Category: Videoconferencing systems
UNSPSC: 45111902
Manufacturer: ViewSonic
Product Type: Hardware
General Information
CategoryVideoconferencing systems
DescriptionViewsonic TeamJoin CDE8630-MTRC - For Microsoft Teams Rooms - video conferencing kit - Certified for Microsoft Teams Rooms
ManufacturerViewSonic
UNSPSC45111902
Main Specifications
Audio Input / Type6 beam-forming microphones
Display / Diagonal Size86 in
Display / Diagonal Size (metric)218.4 cm
Header / BrandViewSonic
Input Device / Type10.1" touchscreen
Miscellaneous / Product Color
  • Black
  • Gray
  • Silver
Networking / TypeNetwork adapter
Packaged Quantity1
System Requirements / OS RequiredWindows 11 IoT
Audio Input
Microphone Operation ModeBeamforming
Type6 beam-forming microphones - integrated
Audio Output
Output Power / Channel11 Watt
TypeSpeaker(s)
Display
Diagonal Size86"
Image Aspect Ratio16:9
Image Brightness450 cd/m²
Image Contrast Ratio1200:1
Monitor FeaturesLED-backlit, anti-glare, landscape mode, portrait mode, Direct LED, 25% haze
Native Resolution3840 x 2160
Response Time8 ms
TechnologyTFT active matrix
Expansion / Connectivity
Expansion SlotsM.2 (SATA)
Interfaces
  • 1 x headset
  • 2 x USB 2.0
  • 3 x USB-C 3.0 - 24 pin USB-C
  • 3 x USB-C / DisplayPort - 24 pin USB-C
  • 2 x network / power - 10/100/1G Ethernet - RJ-45
  • 4 x SuperSpeed USB 3.0 - 9 pin USB Type A
  • 6 x display / video - 19 pin HDMI Type A
  • 1 x display / video - 20 pin DisplayPort
  • 2 x audio - 3.5mm audio jack
  • 1 x serial - RS-232
  • 4 x USB-A 3.2 Gen1
  • 1 x audio - line-out - mini-phone 3.5 mm
  • 1 x power - RJ-45
General
Built-in DevicesSpeaker, camera, antenna, presence sensor, microphone array, motion sensor
Device TypeVideo conferencing kit
Dimensions & Weight Details
  • Compute system - Width 23 cm Depth 27.55 cm Height 4.3 cm Weight 1.86 kg
  • Touch screen - Width 24.5 cm Depth 9.8 cm Height 16 cm Weight 930 g
  • Display - Width 193.08 cm Depth 8.16 cm Height 110.18 cm
  • Sound bar - Width 46.17 cm Depth 9.3 cm Height 7.64 cm
Kit ContentViewsonic TeamJoin MPC310-W31-TU computing engine, Viewsonic TeamJoin MRC1010-TN touch console, ViewSonic UMB202 4K Video Bar System, ViewSonic CDE8630 4K digital display
Video CodecsMJPEG, H.264 AVC, YUY2, NV12
Input Device
Connectivity TechnologyWired
FeaturesLED backlight, 1920 x 1200 resolution, multi-touch, security slot (Kensington security lock compatible)
Type10.1" touchscreen
Miscellaneous
Cables Included
  • 1 x HDMI cable - 1.5 m
  • 1 x USB-C cable - 1.5 m
  • 1 x RS-232 adapter
Compliant StandardsFCC, RoHS, LVD, TSCA, FCC-ID, IC ID
Included AccessoriesRemote control, wall mount, mounting bracket
Mounting KitIncluded
Software CertificationCertified for Microsoft Teams Rooms
Networking
Compliant StandardsBluetooth 5.3
Connectivity TechnologyWireless, wired
Data Link ProtocolGigabit Ethernet, Bluetooth 5.3
FeaturesCable management
PerformanceFrame rate: 30 fps
TypeNetwork adapter
Power
Power Consumption Operational111.9 Watt
Power DevicePower supply - internal
Voltage RequiredAC 100-240 V (50/60 Hz)
Software / System Requirements
OS RequiredWindows 11 IoT
Software IncludedWindows 11 IoT Enterprise
Video Input
Digital Video Capture Resolution1280 x 720, 640 x 480, 320 x 240, 352 x 288, 800 x 600, 1920 x 1080, 640 x 360, 2560 x 1440, 3840 x 2160, 1024 x 576, 960 x 540, 480 x 270
Digital Zoom5
FeaturesDigital noise reduction, white balance, ePTZ, auto-framing, voice tracking, exposure mode, 117.8° diagonal field of view (DFOV), 109° horizontal field of view (HFOV), 74.4° vertical field of view (VFOV), Direction-of-Arrival (DOA) voice tracking technology, 8 m microphone pick up range
Interface TypeSuperSpeed USB 3.0
TypeDigital camera
Video Output
PC ConfigurationCore i3-1220P, 8GB RAM, 128GB SSD
