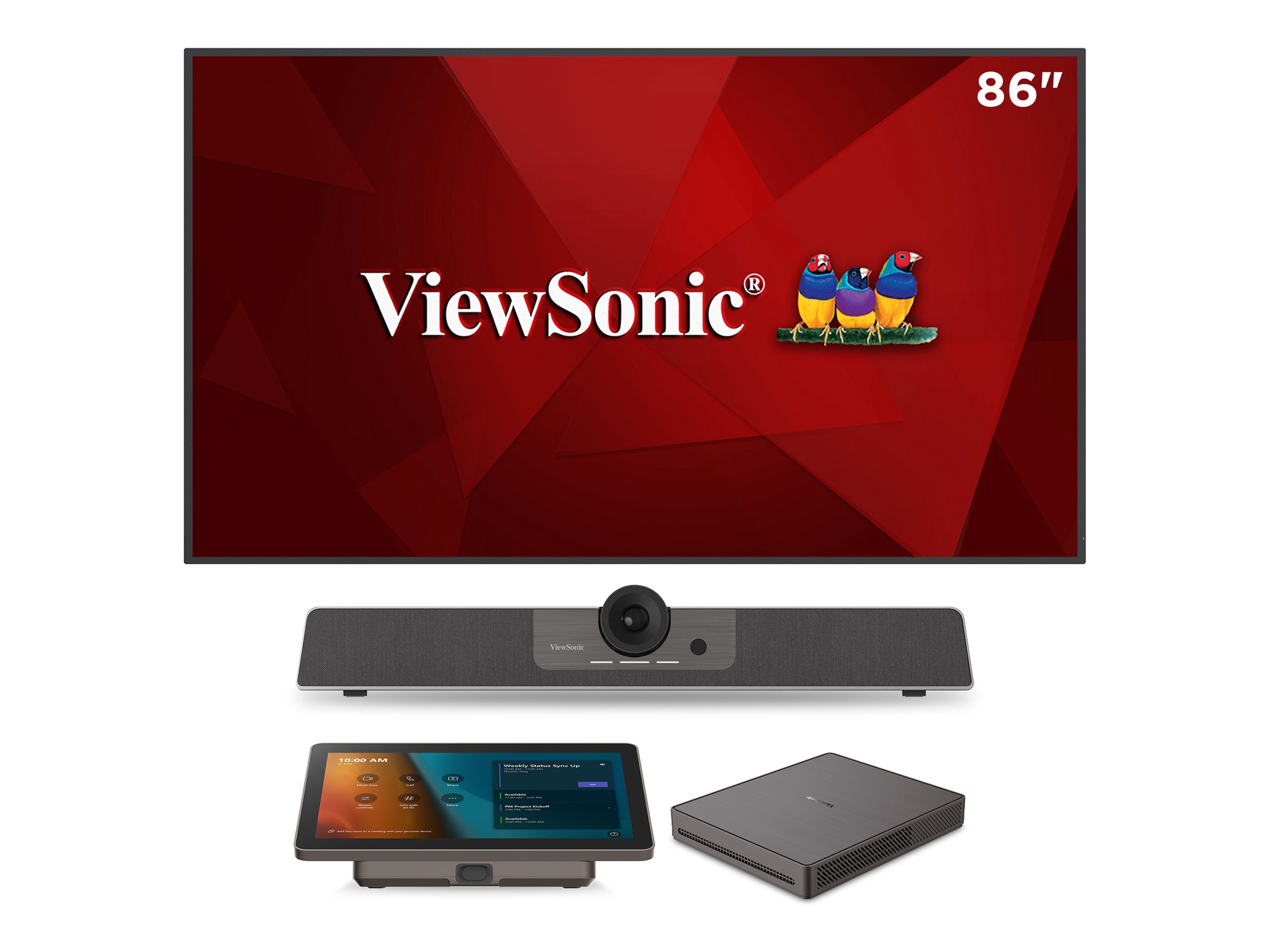

ViewSonic MN CDE8630-MTR TeamJoin TRS10 w 86 Display Bundle MPC310-W31-TU


$3,708.48
ViewSonic MN CDE8630-MTR TeamJoin TRS10 w 86 Display Bundle MPC310-W31-TU

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
Contracts
   DIR-CPO-5094
ViewSonic MN CDE8630-MTR TeamJoin TRS10 w 86 Display Bundle MPC310-W31-TU
  Additional Details
Price: $3,708.48
Mfr Part #: CDE8630-MTR
SHI Part #: 48408445
Category: Televisions
UNSPSC: 52161505
Manufacturer: ViewSonic
Product Type: Other
General Information
CategoryTelevisions
DescriptionViewSonic MN CDE8630-MTR TeamJoin TRS10 w 86 Display Bundle MPC310-W31-TU
ManufacturerViewSonic
UNSPSC52161505
Main Specifications
Height48.31
Length8.86
UPC0766907017502
Width83.07
Display
Diagonal Size86"
Image Aspect Ratio16:9
Image Brightness450 cd/m²
Image Contrast Ratio1200:1
Monitor FeaturesLED-backlit, anti-glare, landscape mode, portrait mode, Direct LED, 25% haze
Native Resolution3840 x 2160
Response Time8 ms
TechnologyTFT active matrix
Expansion / Connectivity
Expansion SlotsM.2 (SATA)
Interfaces
  • 1 x headset
  • 2 x USB 2.0
  • 3 x USB-C 3.0 - 24 pin USB-C
  • 3 x USB-C / DisplayPort - 24 pin USB-C
  • 2 x network - 10/100/1G Ethernet - RJ-45
  • 4 x SuperSpeed USB 3.0 - 9 pin USB Type A
  • 5 x display / video - 19 pin HDMI Type A
  • 2 x audio out - 3.5mm audio jack
  • 1 x audio out - SPDIF output
  • 1 x serial - RS-232
General
Built-in DevicesAntenna
Device TypeVideo conferencing kit
Dimensions & Weight Details
  • Compute system - Width 23 cm Depth 27.55 cm Height 4.3 cm Weight 1.86 kg
  • Touch screen - Width 24.5 cm Depth 9.8 cm Height 16 cm Weight 930 g
  • Display - Width 193.08 cm Depth 8.16 cm Height 110.18 cm
Kit ContentViewsonic TeamJoin MPC310-W31-TU computing engine, Viewsonic TeamJoin MRC1010-TN touch console, ViewSonic CDE8630 4K digital display
Input Device
Connectivity TechnologyWired
FeaturesLED backlight, 1920 x 1200 resolution, multi-touch, security slot (Kensington security lock compatible)
Type10.1" touchscreen
Miscellaneous
Cables Included
  • 1 x HDMI cable
  • 1 x USB-C cable
  • 1 x RS-232 cable
Compliant StandardsFCC, RoHS, LVD, TSCA, FCC-ID, IC ID
Included AccessoriesWall mount screws
Mounting KitIncluded
Software CertificationCertified for Microsoft Teams Rooms
Networking
Compliant StandardsBluetooth 5.3
Connectivity TechnologyWireless, wired
Data Link ProtocolGigabit Ethernet, Bluetooth 5.3
FeaturesCable management
TypeNetwork adapter
Power
Power Consumption Operational111.9 Watt
Power DevicePower supply - internal
Voltage RequiredAC 100-240 V (50/60 Hz)
Software / System Requirements
OS RequiredWindows 11 IoT
Software IncludedWindows 11 IoT Enterprise
Video Output
PC ConfigurationCore i3-1220P, 8GB RAM, 128GB SSD
