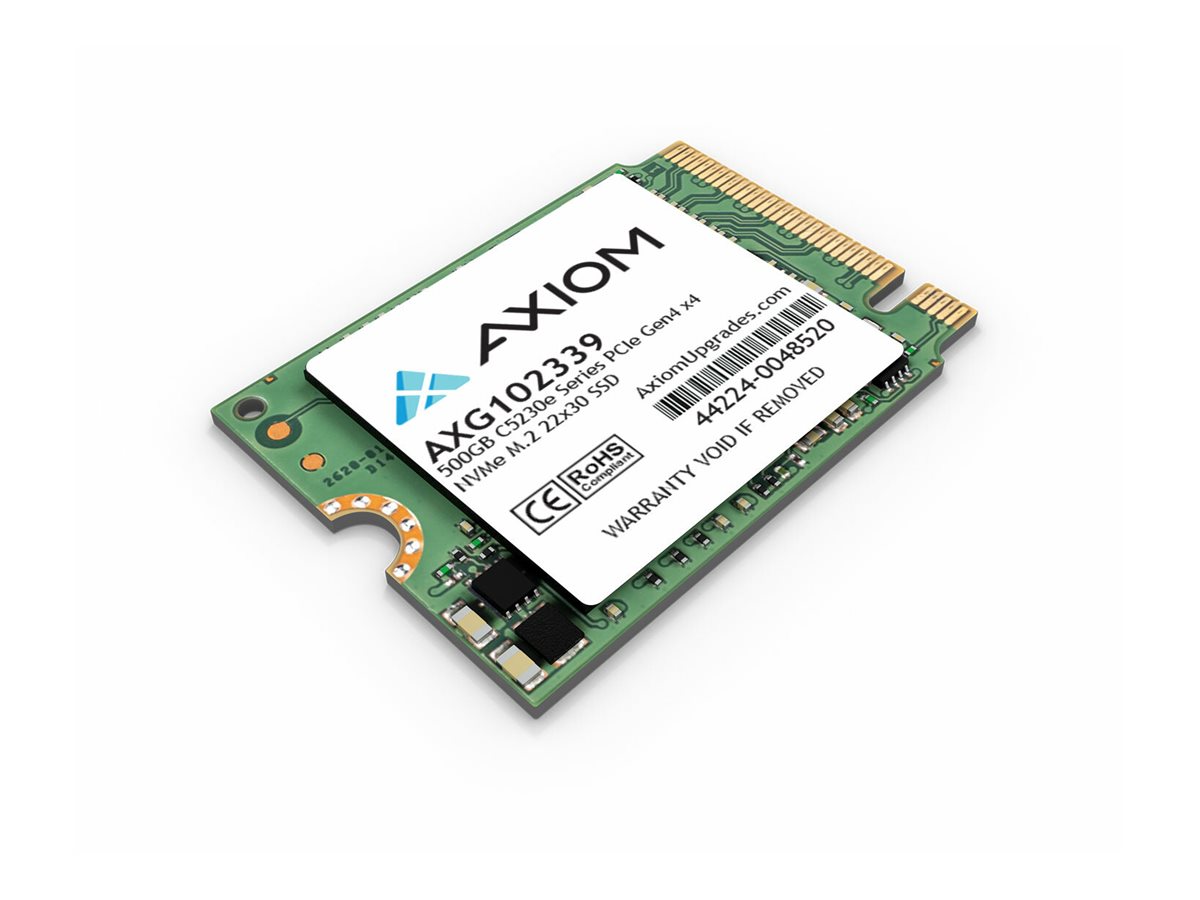

Axiom C5230e Series - SSD
MSRP$1,037.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Axiom C5230e Series - SSD
- encrypted
- 500 GB
- internal
- M.2 2230
- PCIe 4.0 x4 (NVMe)
- TCG Opal Encryption 2.0
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,037.00 |
| Mfr Part #: | AXG102339 |
| SHI Part #: | 47549828 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Axiom Memory |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Axiom C5230e Series - SSD - encrypted - 500 GB - internal - M.2 2230 - PCIe 4.0 x4 (NVMe) - TCG Opal Encryption 2.0 - TAA Compliant |
| Manufacturer | Axiom Memory |
| MSRP | $1,037.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 3 cm |
| Dimensions & Weight / Weight | 6.8 g |
| Dimensions & Weight / Width | 2.2 cm |
| Hard Drive / Capacity | 500 GB |
| Hard Drive / Form Factor | M.2 2230 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 4.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 4.0 x4 (NVMe) |
| Header / Brand | Axiom |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 3.1 g @ 2-500 Hz |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2230 |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) |
| General | |
| Bytes per Sector | 512 |
| Capacity | 500 GB |
| Depth | 3 cm |
| Device Type | Solid state drive - internal |
| Features | 3D NAND Technology, IG5220 controller, dynamic SLC caching, NVM Express (NVMe) 1.4, Garbage Collection technology, Global Wear Leveling, HMB (Host Memory Buffer) supported, Low-Density Parity Check, NVM Express (NVMe) deallocate support, StaticDataRefresh Technology, Advanced Encrypting Standard (AES), NVMe Secure Erase support, Dynamic and Static Wear Leveling, S.M.A.R.T., 256-bit AES |
| Form Factor | M.2 2230 |
| Hardware Encryption | Yes |
| Interface | PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | Single-level cell (SLC) |
| Weight | 6.8 g |
| Width | 2.2 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS |
| TAA Compliant | Yes |
| Performance | |
| Drive Writes Per Day (DWPD) | 0.446 |
| Internal Data Rate | 4725 MBps (read) / 2525 MBps (write) |
| Maximum 4KB Random Read | 195000 IOPS |
| Maximum 4KB Random Write | 289000 IOPS |
| SSD Endurance | 250 TB |
| Power | |
| Power Consumption |
|
| Voltage Required | DC 3.3 V |
| Reliability | |
| MTBF | 1,500,000 hours |
| Non-Recoverable Errors | 1 per 10^15 |
