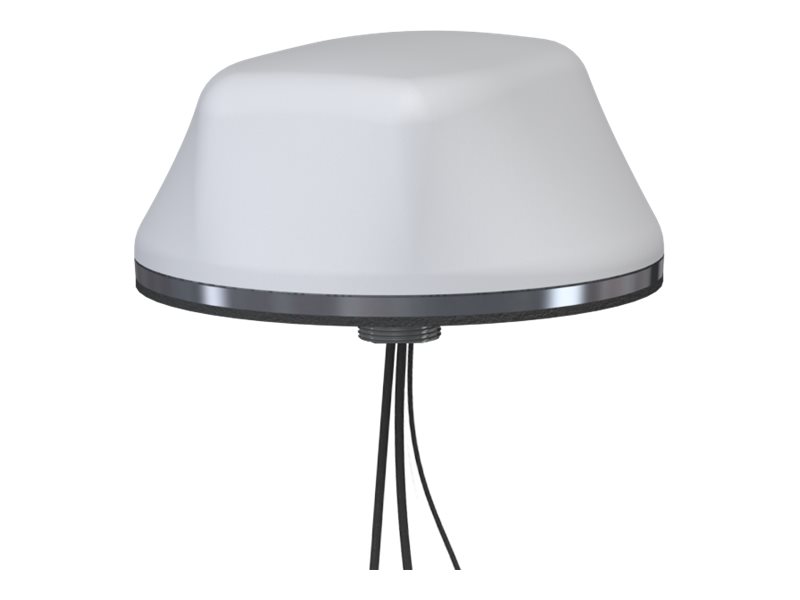

Mobile Mark LTM Series LTMG308

MSRP$281.85

$272.61

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Antenna radome navigation, cellular surface mountable

Contracts
DIR-CPO-5094

Mobile Mark LTM Series LTMG308

General Information
Category	Radio antennas
Description	Mobile Mark LTM Series LTMG308 - Antenna - radome - navigation, cellular - surface mountable
Manufacturer	Mobile Mark
MSRP	$281.85
UNSPSC	43221706
Main Specifications
Antenna / Wave Band	5G Band 14 Band 71 BeiDou CBRS GALILEO GLONASS GNSS GPS LTE QZSS
Dimensions & Weight / Depth	13.9 cm
Dimensions & Weight / Height	6 cm
Dimensions & Weight / Width	13.9 cm
Header / Brand	Mobile Mark
Miscellaneous / Product Color	White
Packaged Quantity	1
Antenna
Compatibility	GNSS, LTE, 5G, GPS, GLONASS, QZSS, GALILEO, BeiDou, CBRS, Band 14, Band 71
Features	MIMO technology, MIL-STD 810G, VSWR < 2.2, VSWR < 2.1, EN 61373, TIA 329.2-C, IEEE-1478, IP69K, IP67, RoHS, right-hand circular polarization (RHCP)
Frequency Range	617 - 960 MHz, 1710 - 6000 MHz, 1561 MHz, 1575 MHz, 1602 MHz
Impedance	50 ohm
Max Power	10 watt
Connector Provided
Type	3 x GPS / cellular antenna - SMA (male)
General
Antenna Placing / Mounting	Surface mountable
Color	White
Depth	13.9 cm
Form Factor	Radome
Height	6 cm
Intended For	Navigation, cellular
Product Material	Acrylonitrile styrene acrylate (ASA), UV-inhibitive plastic, corrosion resistant aluminum
Product Type	Antenna
Width	13.9 cm
Miscellaneous
Cables Included	3 x antenna cable - 3.05 m
