ASRock H610M-ITX/eDP
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

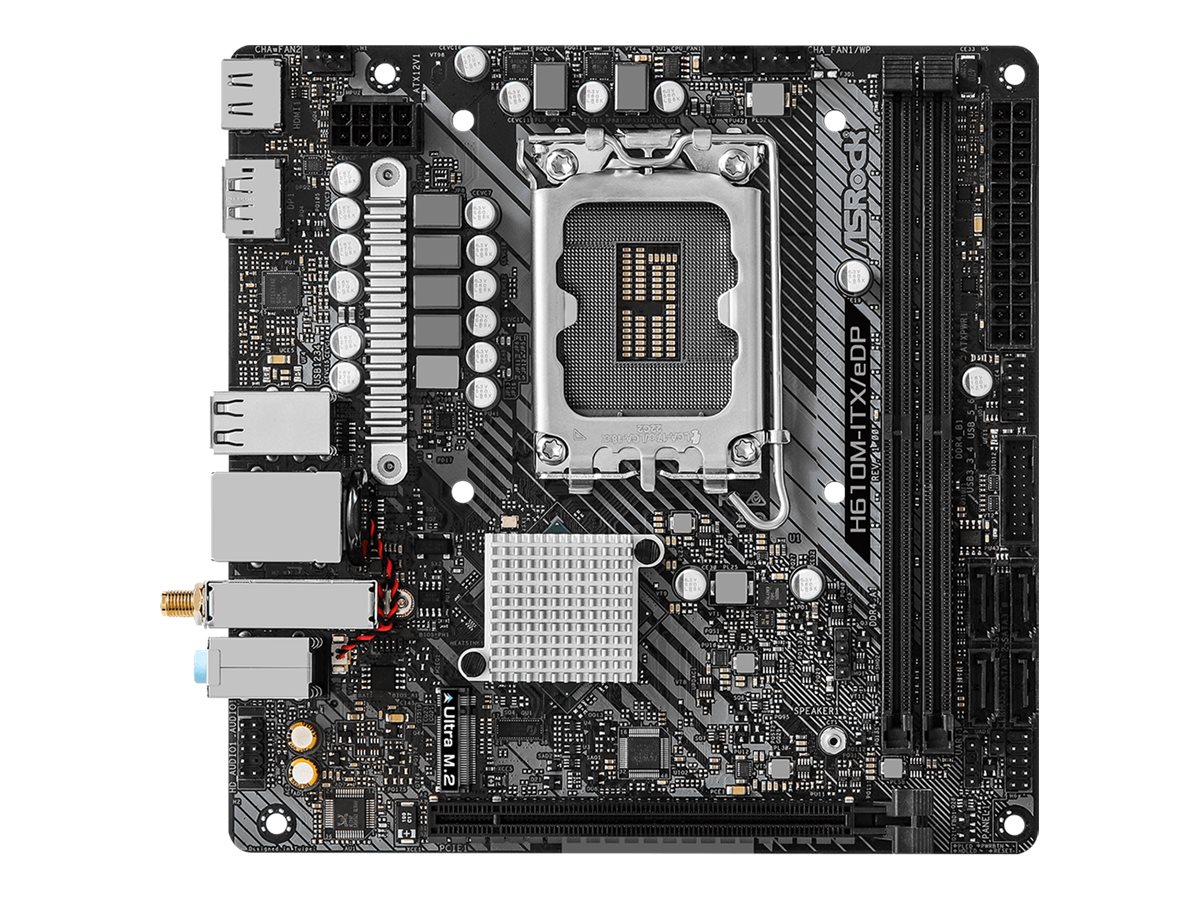

ASRock H610M-ITX/eDP
- Motherboard
- mini ITX
- LGA1700 Socket
- H610 Chipset
- USB 3.2 Gen 1
- Gigabit LAN, Wi-Fi, Bluetooth
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | H610M-ITX/EDP |
| SHI Part #: | 46217026 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock H610M-ITX/eDP - Motherboard - mini ITX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASRock |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17 cm |
| Dimensions & Weight / Width | 17 cm |
| Header / Brand | ASRock |
| Mainboard / Chipset Type | Intel H610 |
| Mainboard / Processor Socket | LGA1700 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS, Multilingual BIOS, ACPI 6.0 support, SMBIOS 2.7 support |
| BIOS Type | AMI |
| Hardware Features | ASRock Super Alloy, Premium Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB, ASRock Ultra M.2, ASRock Full Spike Protection, ASRock Live Update, ASRock APP Shop, 6 Phase Power Design, Digi Power Design, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock A-Tuning, ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, ASRock Internet Flash, All-Solid Capacitor motherboard Design |
| Hardware Monitoring | Chassis fan tachometer, CPU fan tachometer, CPU core voltage, system voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| General | |
| Chipset Type | Intel H610 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - mini ITX |
| LAN | |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 5.1 |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | FCC Part 15 Subpart B, ERP, EuP Ready, RoHS, DisplayPort 1.4, HDCP 1.3 |
| Depth | 17 cm |
| Included Accessories | I/O back plate, 1 x M.2 screw, 2 x ASRock WiFi 2.4/5GHz Antennas |
| Software Included | Drivers & utilities, Antivirus (Trial version), ASRock A-Tuning, ASRock XFast LAN |
| Width | 17 cm |
| Supported RAM | |
| Bus Clock | 3200 MHz |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Technology | DDR4 |
