Mobile Mark LTM Series LTM308

MSRP$264.80

$256.11

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Antenna radome navigation, cellular vehicle, surface mountable

Contracts
DIR-CPO-5094

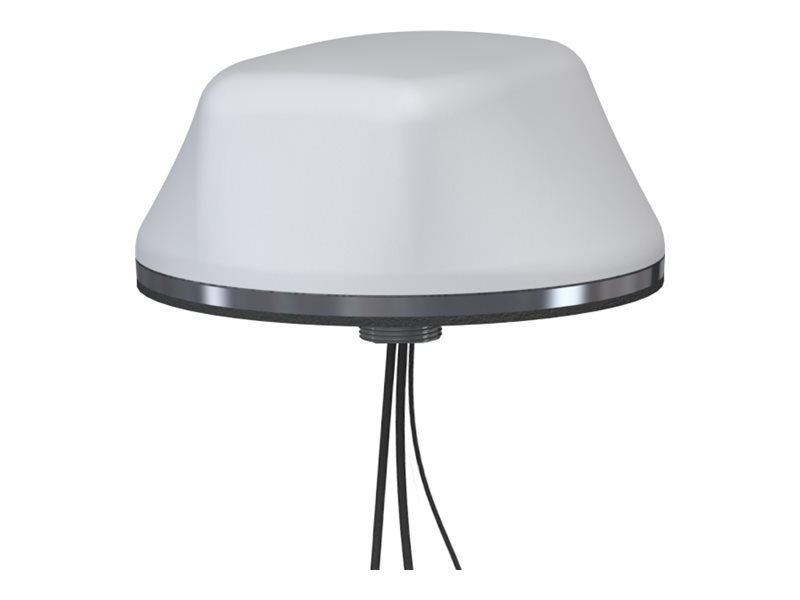

Mobile Mark LTM Series LTM308

General Information
Category	Radio antennas
Description	Mobile Mark LTM Series LTM308 - Antenna - radome - navigation, cellular - vehicle, surface mountable
Manufacturer	Mobile Mark
MSRP	$264.80
UNSPSC	43221706
Main Specifications
Antenna / Wave Band	5G Band 14 Band 71 BeiDou CBRS FirstNet GALILEO GLONASS GNSS GPS LTE QZSS
Dimensions & Weight / Depth	13.9 cm
Dimensions & Weight / Height	6 cm
Dimensions & Weight / Width	13.9 cm
Header / Brand	Mobile Mark
Miscellaneous / Product Color	White
Packaged Quantity	1
Antenna
Antenna Amplifier Gain	26dB
Compatibility	GNSS, GPS, GALILEO, GLONASS, QZSS, BeiDou, Band 71, CBRS, FirstNet, Band 14, LTE, 5G
Features	MIMO technology, VSWR < 2.2, IP67, IEEE-1478, EN 61373, MIL-STD 810G, TIA 329.2-C, IP69K, VSWR < 2.1, RoHS, low profile
Frequency Range	617 - 960 MHz, 1.71 - 6 GHz, 1561 MHz, 1575 MHz, 1602 MHz
Impedance	50 ohm
Max Power	10 watt
Connector Provided
Type	3 x antenna - SMA (male)
General
Antenna Placing / Mounting	Vehicle, surface mountable
Color	White
Depth	13.9 cm
Form Factor	Radome
Height	6 cm
Intended For	Navigation, cellular
Product Material	Acrylonitrile styrene acrylate (ASA), UV-inhibitive plastic, corrosion resistant aluminum
Product Type	Antenna - active (GPS)
Width	13.9 cm
Miscellaneous
Cables Included	3 x antenna cable - 4.57 m

	Product	Qty	Price

We currently have limited stock of this product.
For availability options and shipping info, contact your sales team.

Overview
