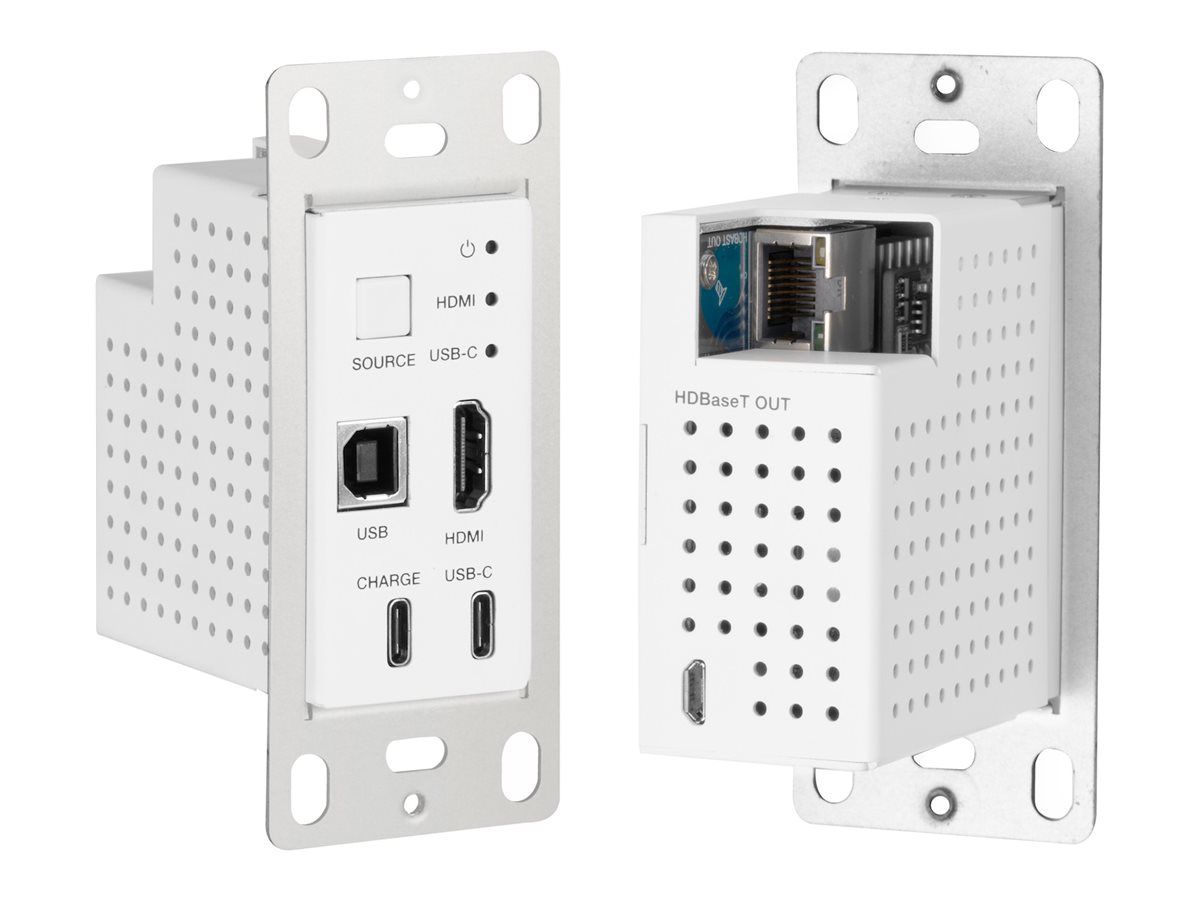

KanexPro - Extender Kit

MSRP$899.95
$870.43
KanexPro - Extender Kit
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • KVM / video / audio extender
  • HDBaseT
  • over CAT 6
  • up to 70 m
Contracts
   DIR-CPO-5094
KanexPro - Extender Kit
  • KVM / video / audio extender
  • HDBaseT
  • over CAT 6
  • up to 70 m
  Additional Details
Price: $870.43
MSRP: $899.95
Mfr Part #: WP-EXTHDTC70
SHI Part #: 45736793
Category: Serial port cards
UNSPSC: 43201559
Manufacturer: KanexPro
Product Type: Hardware
General Information
CategorySerial port cards
DescriptionKanexPro - Extender Kit - KVM / video / audio extender - HDBaseT - over CAT 6 - up to 70 m
ManufacturerKanexPro
MSRP$899.95
UNSPSC43201559
Main Specifications
Header / BrandKanexPro
Networking / Connectivity TechnologyWired
Networking / Data Link ProtocolHDBaseT
Networking / Data Transfer Rate18 Gbps
Networking / Form FactorIn-wall mountable
Networking / TypeKVM / video / audio extender
Packaged Quantity1
Service & Support / Type1-year warranty
Dimensions & Weight
Dimensions (WxDxH) / Weight Details
  • Transmitter: 3.33 cm x 6.57 cm x 6.87 cm / 196 g
  • Receiver: 20 cm x 9.8 cm x 2.3 cm / 511 g
Environmental Parameters
Humidity Range Operating20 - 90% RH (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 1 x HDMI (transmitter input) - 19 pin HDMI Type A female
  • 1 x USB (transmitter input) - Type C
  • 1 x HDBaseT (transmitter output) - RJ-45
  • 1 x USB (power only) (transmitter output) - Type C
  • 1 x USB (control) - micro-USB
  • 1 x HDMI (receiver input) - 19 pin HDMI Type A female
  • 1 x HDBaseT (receiver input) - RJ-45
  • 1 x HDMI (receiver output) - 19 pin HDMI Type A
  • Audio (receiver output)
  • 2 x USB (KVM) - Type A
  • 1 x USB (receiver) - micro-USB
General
ColorBlack, white
Device TypeKVM / video / audio extender
Form FactorIn-wall mountable
Manufacturer Warranty
Service & SupportLimited warranty - 1 year
Networking
Compliant StandardsUSB 2.0, HDCP 2.2
Connectivity TechnologyWired
Data Link ProtocolHDBaseT
Data Transfer Rate18 Gbps
FeaturesAuto-switching, 4K60Hz support, 4:4:4 chroma subsampling support, HDR10 support, HDR10+ support, Dolby Atmos support, Dolby TrueHD support, Dolby Digital Plus support, DTS:X support, DTS-HD Master Audio support
Max Transfer Distance70 m
Power
Power Over Ethernet (PoE)PoE
