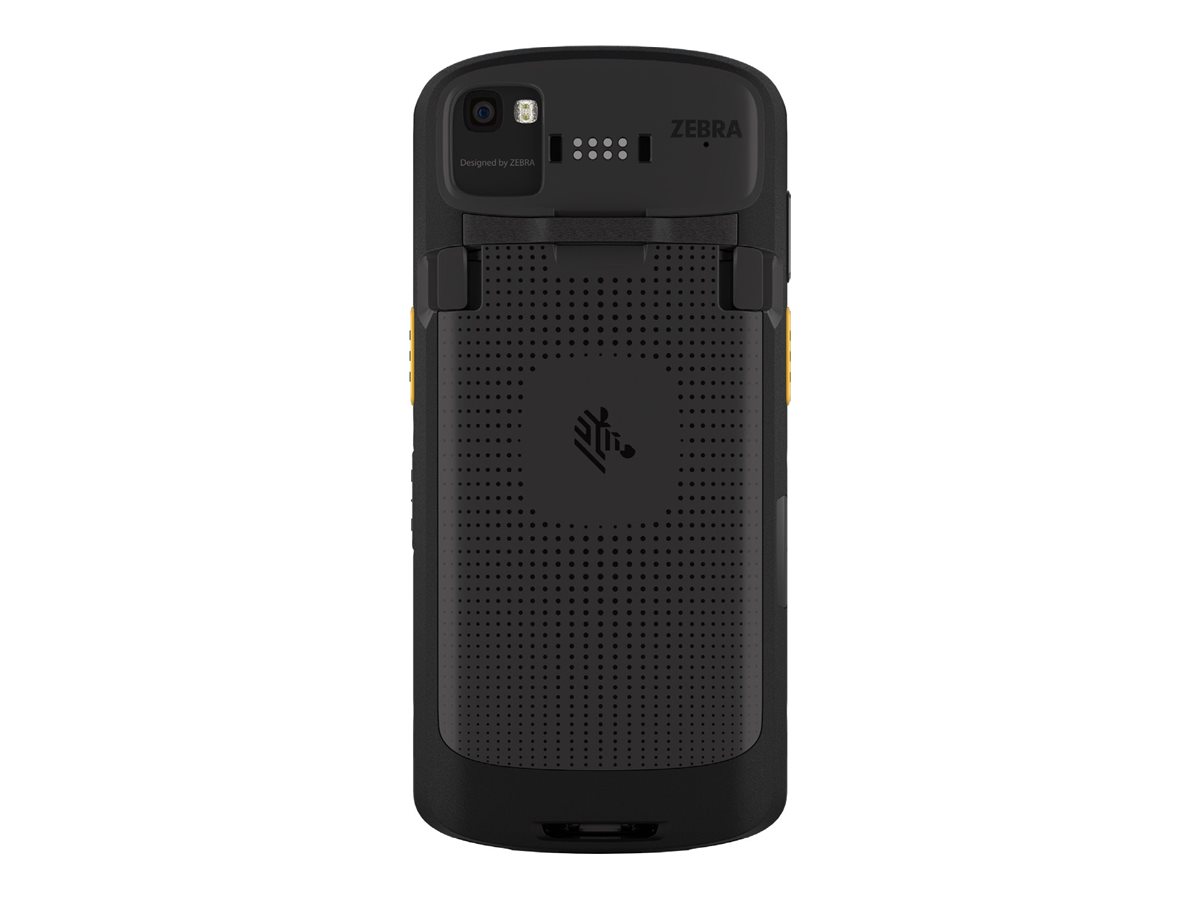

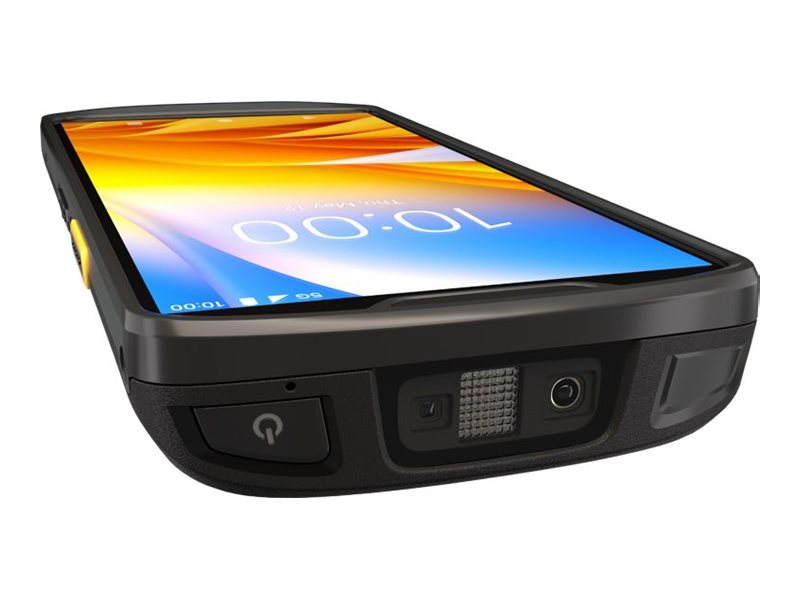

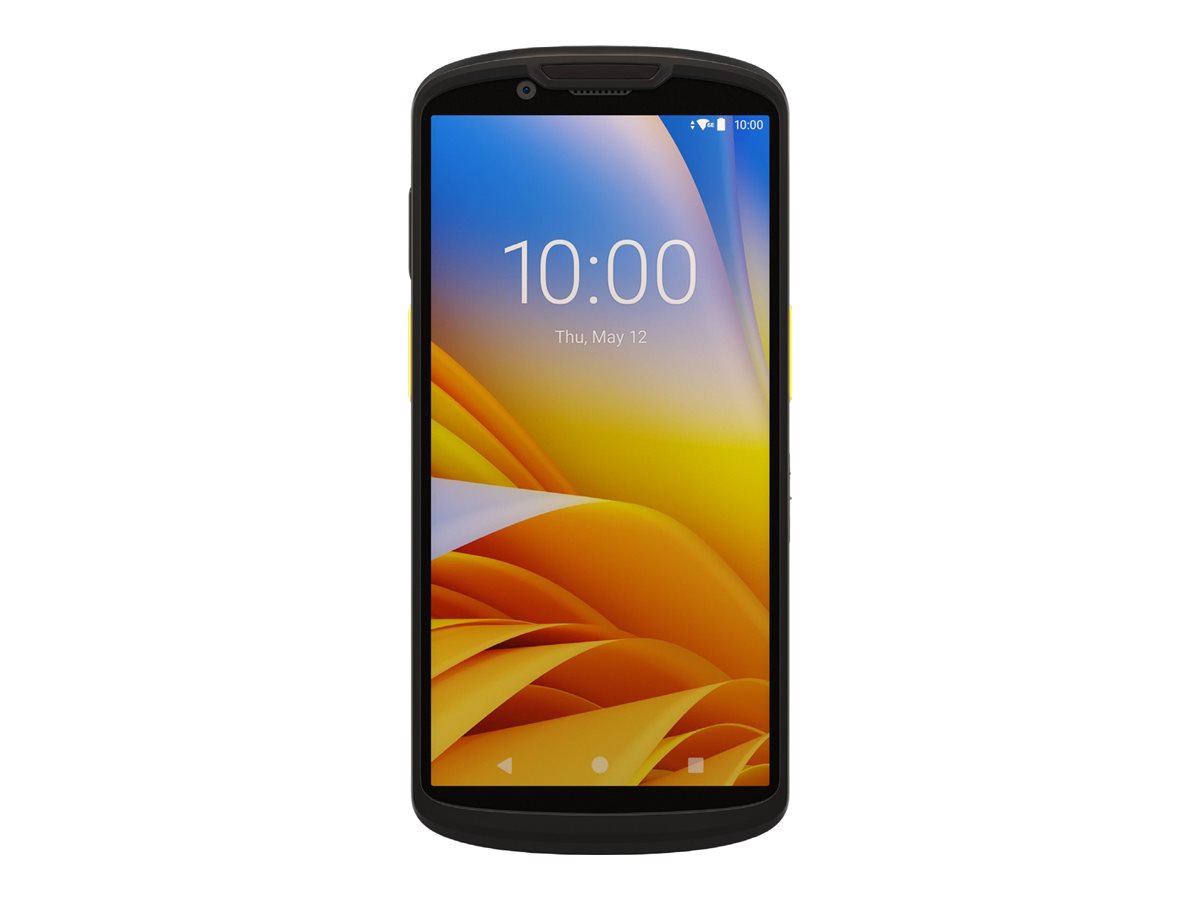

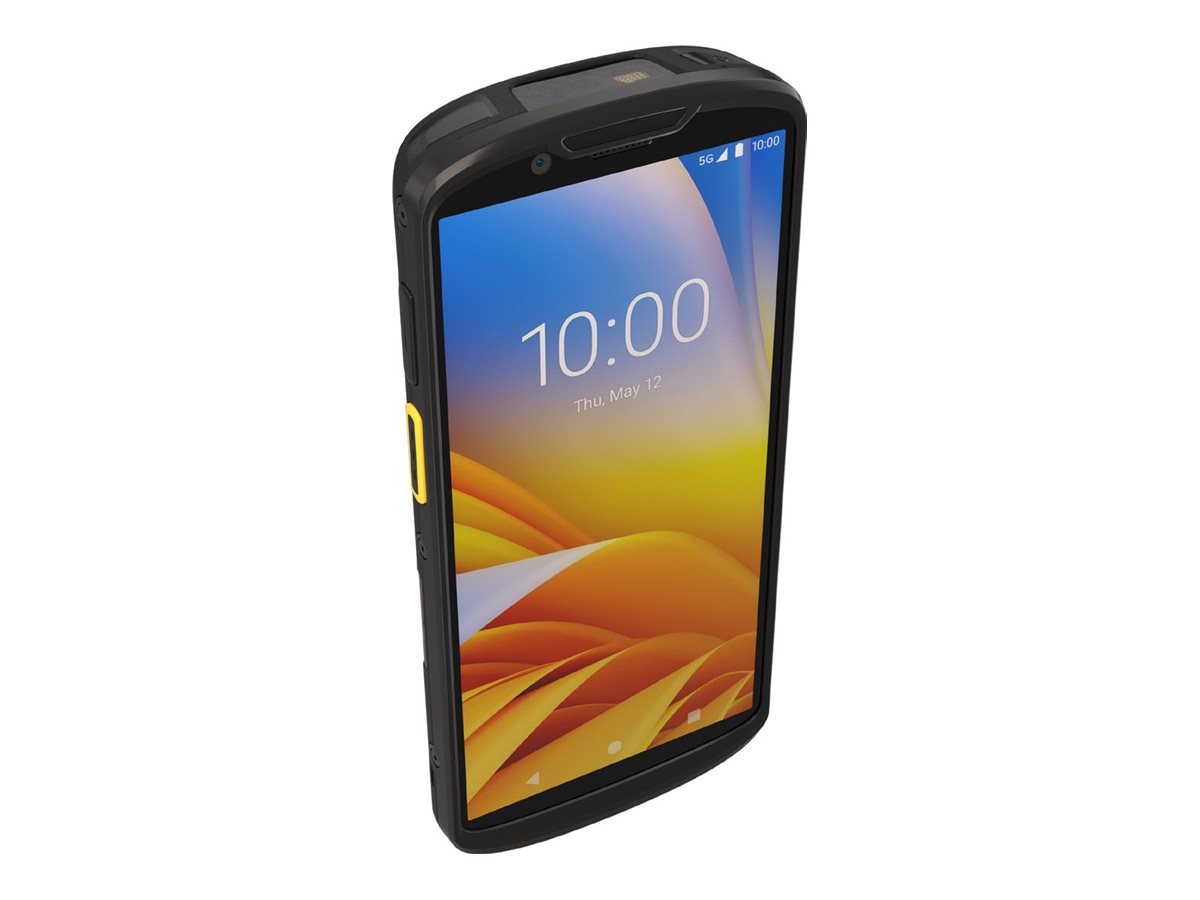

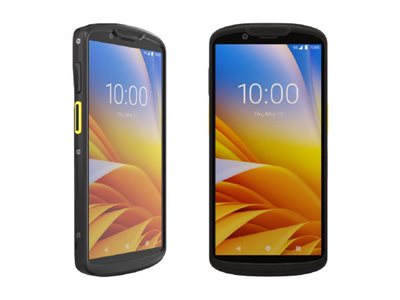

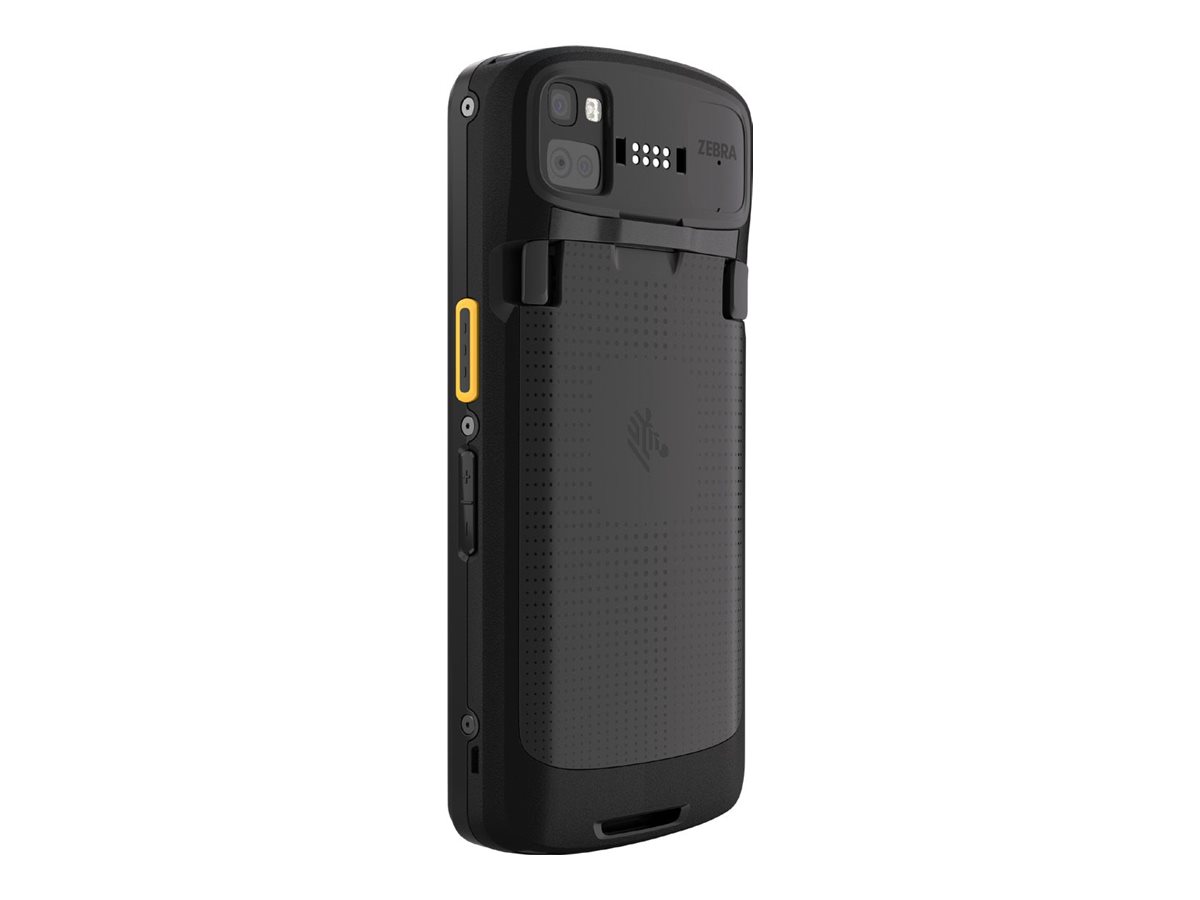

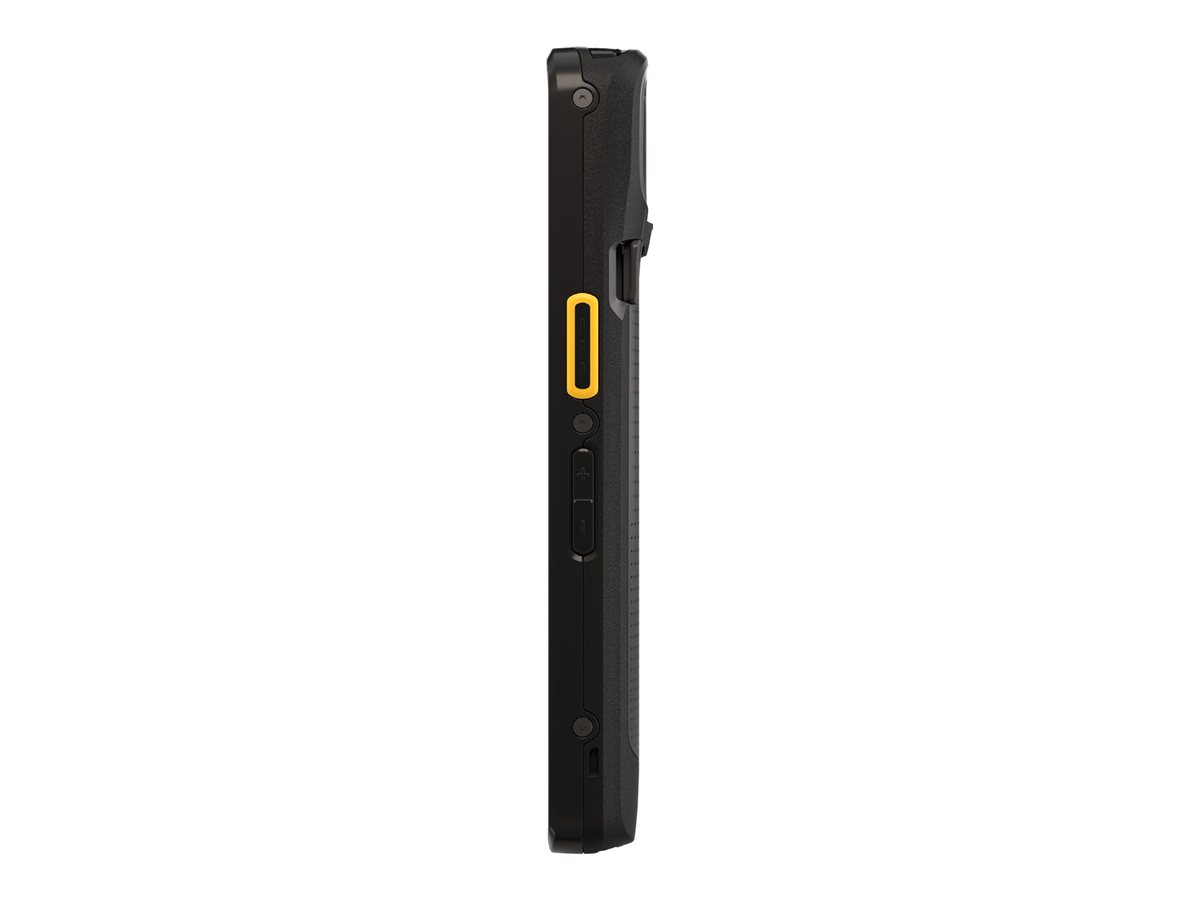

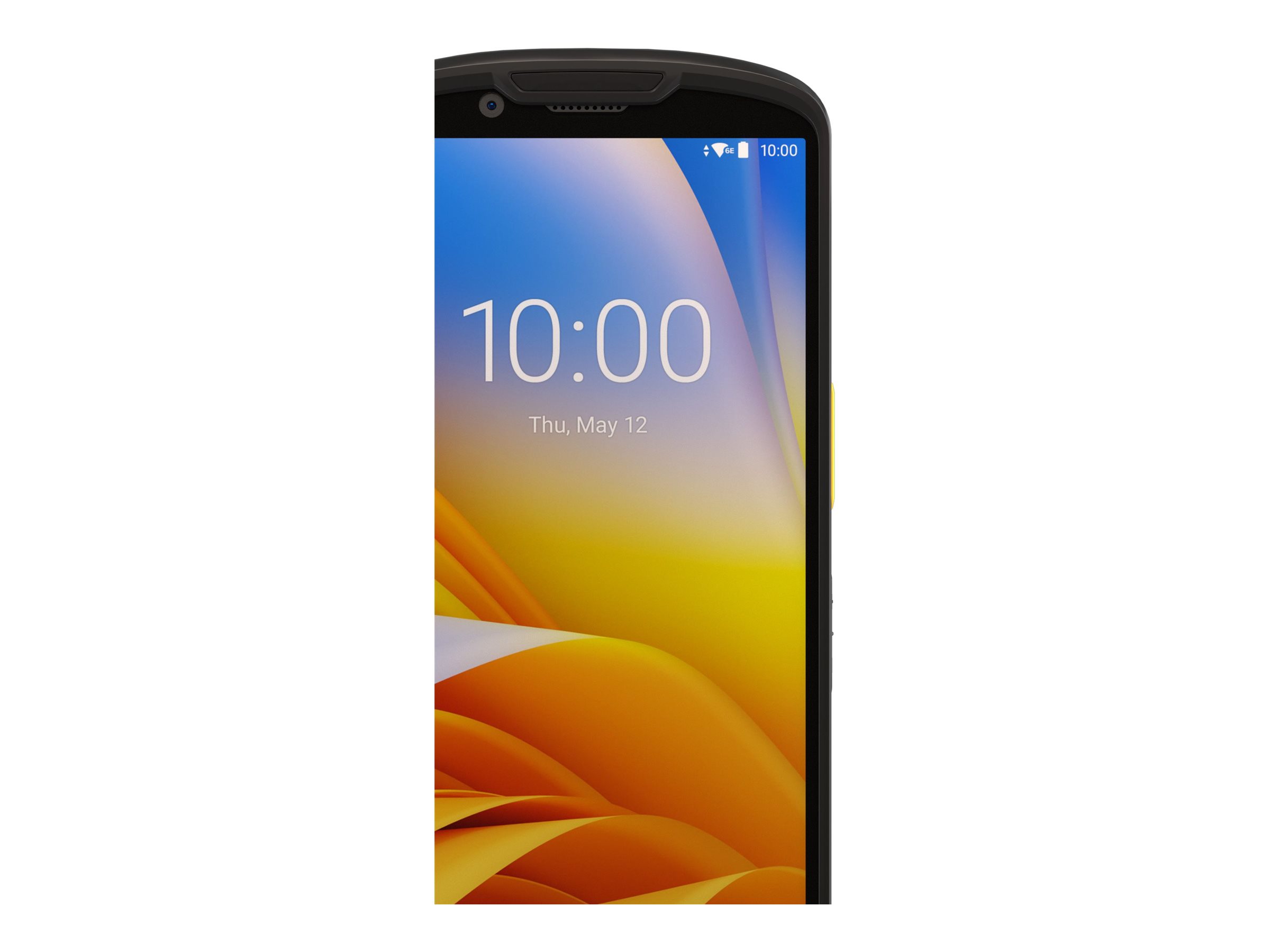

Zebra TC53 - Data collection terminal
MSRP$3,379.07
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Zebra TC53 - Data collection terminal
- rugged
- Android 11
- 64 GB
- 6" (1080 x 2160)
- rear camera + front camera
- barcode reader
- (2D imager)
- USB host
- microSD slot
- Bluetooth, Wi-Fi 6E
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,379.07 |
| Mfr Part #: | TC5301-0T1E4B1000-NA |
| SHI Part #: | 44701771 |
| Category: | PDAs or pen-based computers |
| UNSPSC: | 43211504 |
| Manufacturer: | Zebra Technologies |
| Product Type: | Hardware |
Laptop Docks and Port Replication
- Docking cradle
- USB / Ethernet
- HDMI
- for Zebra TC53, TC53 Premium, TC58, TC58 Premium
MSRP $902.75
$873.14
- USB / Ethernet
- HDMI
- 10Mb LAN
- for Zebra TC53, TC58
MSRP $782.61
$756.94
Tablets
| General Information | |
|---|---|
| Category | PDAs or pen-based computers |
| Description | Zebra TC53 - Data collection terminal - rugged - Android 11 - 64 GB - 6" (1080 x 2160) - rear camera + front camera - barcode reader - (2D imager) - USB host - microSD slot - Bluetooth, Wi-Fi 6E |
| Manufacturer | Zebra Technologies |
| MSRP | $3,379.07 |
| UNSPSC | 43211504 |
| Main Specifications | |
| Audio Input / Type | Three microphones |
| Barcode / Barcode Reader | Yes |
| Dimensions & Weight / Depth | 16.48 cm |
| Dimensions & Weight / Height | 1.675 cm |
| Dimensions & Weight / Weight | 293 g |
| Dimensions & Weight / Width | 7.735 cm |
| Display / Diagonal Size | 6 in |
| Display / Diagonal Size (metric) | 15.2 cm |
| Display / Native Resolution | 1080 x 2160 |
| Handheld Type | Data collection terminal |
| Header / Brand | Zebra |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | Black |
| Networking / Wireless Connectivity |
|
| OS Provided / Type | Android 11 |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.7 GHz |
| Service & Support / Type | 1-year warranty |
| Barcodes | |
| Barcode Reader | Yes |
| Scan Element Type | 2D imager |
| Battery | |
| Capacity | 4400 mAh |
| Technology | PowerPrecision+ - lithium ion |
| Communications | |
| Security Protocols & Features | LEAP, WEP, WPA, WPA2, TKIP, AES, EAP-TTLS, EAP-TLS, WPA2-Enterprise, PAP, MS-CHAP, MS-CHAPv2, PEAPv0, PEAPv1, EAP-SIM, EAP-AKA, EAP-GTC, CCKM, IPv6 support, PWD, EAP-PWD, WPA-Enterprise, GCMP, WPA3, WPA3-Enterprise |
| Wireless Connectivity | Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Dimensions & Weight | |
| Depth | 16.48 cm |
| Height | 1.675 cm |
| Weight | 293 g |
| Width | 7.735 cm |
| Display | |
| Features | Anti-fingerprint, anti-smudge, glove touch mode, optical bonding, Corning Gorilla glass 5, capacitive touch screen |
| Image Brightness | 600 cd/m² |
| Resolution | 1080 x 2160 |
| Touchscreen | Multi-Touch |
| Type | 6" - LED backlight |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Min Storage Temperature | -40 °C |
| Expansion and Connectivity | |
| Expansion Slots | 1 x microSD |
| Interfaces |
|
| USB Host | Yes |
| Front Camera | |
| Sensor Resolution | 8 Megapixel |
| General | |
| Operating System | Android 11 |
| Product Type | Data collection terminal - rugged |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Memory | |
| Max Supported Capacity | 2 TB |
| RAM | 4 GB |
| Storage | 64 GB |
| Supported Flash Memory Cards | microSD |
| Miscellaneous | |
| Compliant Standards | Bluetooth Class 2, FIPS 140-2, IP68, IP65, ISO 15408, MIL-STD-810H, EN/IEC 63000:2018, RoHS 2011/65/EU Amendment 2015/863, ISO 19790 |
| Features | Interactive Sensor Technology (IST), drop-resistant, SecureBoot, microphone with noise-cancellation, warm swap, 2x2 MiMo function, SE4720 imager, haptic feedback, verified boot, multi-color LEDs, super-wideband (SWB) audio, fullband (FB) audio, cellular circuit switch voice |
| Localization | North America |
| Sensors | Proximity sensor, gyro sensor, motion sensor, pressure sensor, light sensor |
| Vibrating Alert | Yes |
| Multimedia | |
| Audio | Three microphones, stereo speakers |
| Processor | |
| Number of Cores | 8-core |
| Processor | Qualcomm QCM6490 |
| Processor Clock Speed | 2.7 GHz |
| Rear Camera | |
| Focus Adjustment | Automatic |
| Light Source | LED flash |
| Sensor Resolution | 16 Megapixel |
| Software | |
| Preloaded Software | Google Mobile Services |
