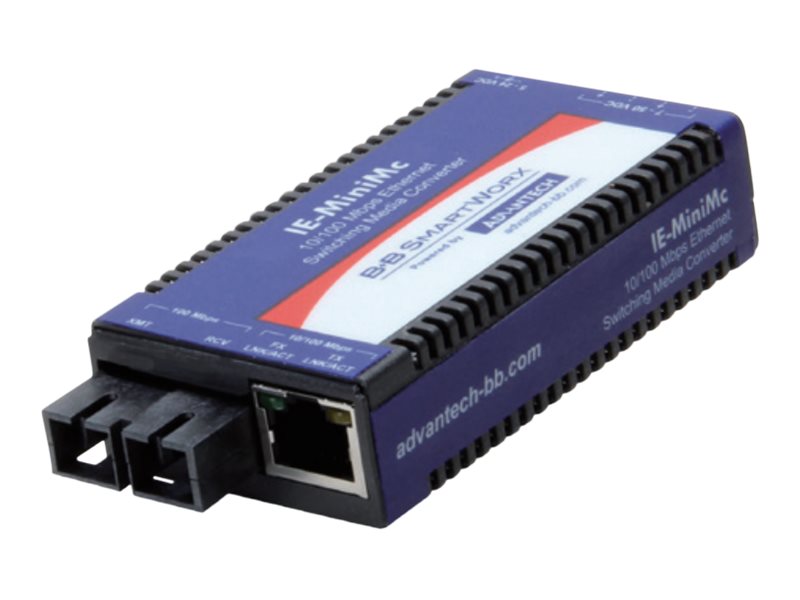

IE-MINIMC, TP-TX/FX-MM1300-SC
MSRP$326.55
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
IE-MINIMC, TP-TX/FX-MM1300-SC
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $326.55 |
| Mfr Part #: | IMC-350I-MM-PS |
| SHI Part #: | 44124481 |
| Category: | Network h/w components and accessories |
| UNSPSC: | 43221700 |
| Manufacturer: | B+B SmartWorx |
| Product Type: | Other |
| General Information | |
|---|---|
| Category | Network h/w components and accessories |
| Description | IE-MINIMC, TP-TX/FX-MM1300-SC |
| Manufacturer | B+B SmartWorx |
| MSRP | $326.55 |
| UNSPSC | 43221700 |
| Main Specifications | |
| ABC Code | A |
| Height | 2.24 |
| Length | 5.75 |
| One Source Flag | NNN N |
| Serialized Flag | Y |
| SKU Created Date | 211109 |
| Width | 5.24 |
| Dimensions & Weight | |
| Depth | 8.51 cm |
| Height | 2.11 cm |
| Weight | 317 g |
| Width | 4.57 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | Plug and Play, CSA, UL, cUL, FCC, RoHS, Directive 2002/95/EC |
| MTBF | 796,650 hours |
| Networking | |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), AutoCross, half duplex mode, full duplex mode, Jumbo Frames support, metal housing |
| Max Transfer Distance | 5 km |
| Optical Wave Length | 1300 nm |
| Status Indicators | Status |
| Power | |
| Power Device | External power adapter |
| Power Over Ethernet (PoE) | PoE |
| Voltage Required | AC 100-240 V (50/60 Hz) |
