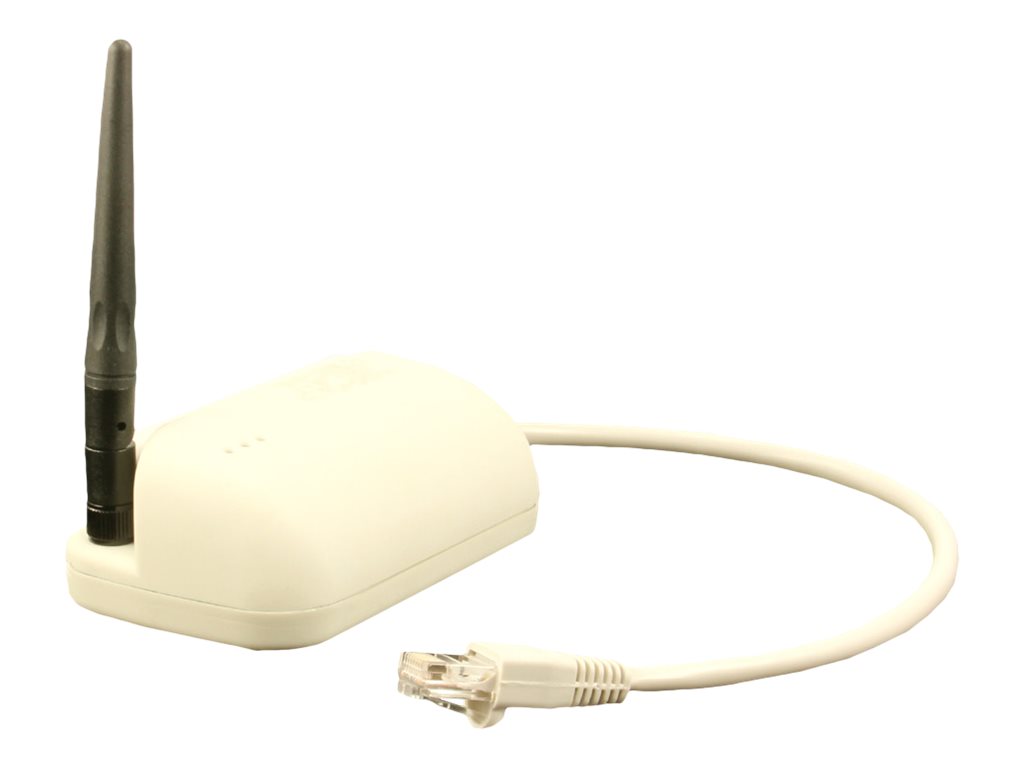

DUAL BAND WI-FI BRIDGE W/USB POWER
MSRP$298.20
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
DUAL BAND WI-FI BRIDGE W/USB POWER
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $298.20 |
| Mfr Part #: | BB-ABDN-ER-DP551U |
| SHI Part #: | 44124147 |
| Category: | Network bridges |
| UNSPSC: | 43222631 |
| Manufacturer: | B+B SmartWorx |
| Product Type: | Other |
| General Information | |
|---|---|
| Category | Network bridges |
| Description | DUAL BAND WI-FI BRIDGE W/USB POWER |
| Manufacturer | B+B SmartWorx |
| MSRP | $298.20 |
| UNSPSC | 43222631 |
| Main Specifications | |
| ABC Code | A |
| Height | 7.60 |
| Length | 10.70 |
| One Source Flag | NNN N |
| Serialized Flag | Y |
| SKU Created Date | 211109 |
| Width | 3.10 |
| Antenna | |
| Antenna | External integrated |
| Antenna Qty | 1 |
| Directivity | Omni-directional |
| Gain Level | 2 dBi |
| Dimensions & Weight | |
| Depth | 9.96 cm |
| Height | 3.18 cm |
| Width | 6.12 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | Secure Shell (SSH), MS-CHAP, MS-CHAP v.2, EAP-FAST, EAP-TLS, EAP-TTLS |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11n, EN55024, FCC CFR47 Part 15 B, EN 62311, Directive 2012/19/EU, Directive 2011/65/EU, MIL-HDBK-217F, EN60950-1+A11+A1+A12+A2, Directive 2014/35/EU, EN 55032, Directive 2014/53/EU, ETSI EN 300 328 V2.1.1, ETSI EN 301 893 V2.1.1, ETSI EN 301 489-1 V2.1.1, ETSI EN 301 489-17 V3.1.1 |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Device Type | Bridge/router |
| Enclosure Type | Desktop |
| Encryption Algorithm | LEAP, AES, 128-bit WEP, 64-bit WEP, PEAP, TKIP, WPA, WPA2, WPA-Enterprise, WPA2-Enterprise |
| Features | USB powered, SSH support, roaming function, DSSS |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, ARP, DHCP, DNS, CSMA/CA |
| Remote Management Protocol | TFTP |
| Status Indicators | Power, link OK, link/activity |
| Line Properties | |
| Line Coding Format | DBPSK, DQPSK, CCK, 64 QAM, BPSK, QPSK, 16 QAM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x USB charge cable |
| Enclosure Color | Gray |
| MTBF | 422,655 hours |
