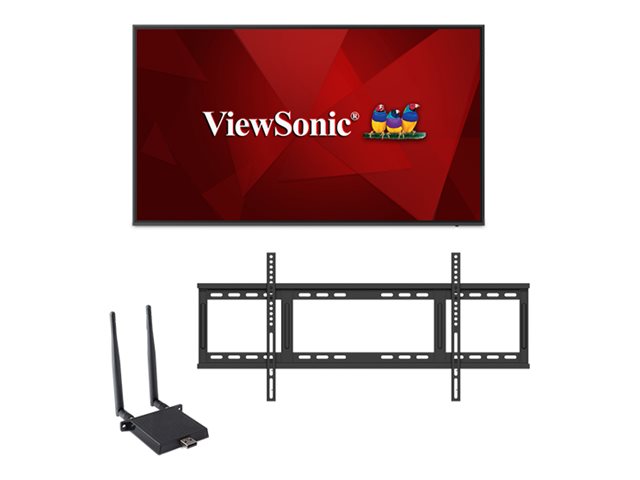

ViewSonic MN CDE7520-E1 75 LDS Bundle with CDE7520-W & LB-WIFI-001 & WMK-077

$2,011.40
ViewSonic MN CDE7520-E1 75 LDS Bundle with CDE7520-W & LB-WIFI-001 & WMK-077
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
Contracts
   DIR-CPO-5094
ViewSonic MN CDE7520-E1 75 LDS Bundle with CDE7520-W & LB-WIFI-001 & WMK-077
  Additional Details
Price: $2,011.40
Mfr Part #: CDE7520-E1
SHI Part #: 43276700
Category: Televisions
UNSPSC: 52161505
Manufacturer: ViewSonic
Product Type: Other
General Information
CategoryTelevisions
DescriptionViewSonic MN CDE7520-E1 75 LDS Bundle with CDE7520-W & LB-WIFI-001 & WMK-077
ManufacturerViewSonic
UNSPSC52161505
Main Specifications
Dimensions & Weight / Weight91.90
Height43.23
Length8.66
UPC0766907004199
Width71.97
Audio System
Additional FeaturesAudio Return Channel (ARC)
Output Power / Total32 Watt
Speaker System2 speakers
Speakers2 x main channel speaker - 16 Watt
Connections
Connector Type
  • 2 x HDMI input
  • VGA input
  • DisplayPort input
  • Audio input
  • RS-232 input
  • USB 3.0
  • 2 x USB 2.0
  • SPDIF output
  • Audio output
  • LAN
Dimensions & Weight (Shipping)
Depth (Shipping)22 cm
Height (Shipping)109.8 cm
Weight (Shipping)41.7 kg
Width (Shipping)182.8 cm
Display
Additional FeaturesAMX Device Discovery, Open Pluggable Specification slot, Crestron Connected Compatible, myViewBoard software, ViewBoard Cast software, 1.07 billion colors
Backlight Life50,000 hours
Brightness450 cd/m²
CoatingAnti-glare, 2H Hard, 3% haze
Display Format4K UHD (2160p)
Image Aspect Ratio16:9
Image Contrast Ratio1200:1
LCD Backlight TechnologyDirect-lit LED
LCD Display TechnologyIPS
Operation Hours / Days24 / 7
Resolution3840 x 2160
Response Time8 ms
Viewing Angle178°
Viewing Angle (Vertical)178°
Environmental Parameters
Humidity Range Operating20 - 80% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
General
Commercial UseYes - digital signage
Depth7 cm
Diagonal Class75"
DimensionsWithout stand
HDMI Ports Qty2 ports
Height95.5 cm
ModesLandscape mode
Operating SystemAndroid OS 8.0
PC InterfaceVGA (HD-15), DisplayPort
Power Consumption (Max)300 Watt
Power Consumption Operational240 Watt
Product TypeLED-backlit LCD flat panel display
TV TunerNo tuner
TV Tuner PresenceNo
Video InterfaceHDMI
Weight29.3 kg
Width167.2 cm
Manufacturer Warranty
Service & Support
  • Limited warranty - parts and labor - 3 years
  • Limited warranty - backlight - 3 years
Media Player
ConfigurationARM Cortex-A73 Dual-Core + ARM Cortex-A53 Dual-Core - 3 GB DDR4 - 16 GB SSD - Mali G51 MP2
USB PortYes
USB Ports Qty3
Miscellaneous
Cables Included
  • HDMI cable
  • RS-232 cable
Compliant StandardsFCC, RoHS, cULus, HDCP 2.2
Included AccessoriesWi-Fi module, mounting screws
Network & Internet Multimedia
Bluetooth VersionBluetooth 4.0
Connect & ShareScreen Share
ConnectivityWi-Fi, LAN
LAN ProtocolFast Ethernet
Wi-Fi Protocol802.11b, 802.11g, 802.11n, 802.11a, 802.11ac
Power
Input VoltageAC 100-240 V (50 - 60 Hz)
On / Off SwitchYes
Power Consumption Stand by0.5 Watt
Power DevicePower supply
Remote Control
Battery Form FactorAAA type
Battery IncludedYes
Battery Included Qty2
Battery Required Qty2
TypeRemote control
Stands & Mounts
Flat Panel Mount Interface400 x 200 mm
StandOptional
VESA CompatibilityYes
Wall Mount IncludedYes
Sustainability Information
ENERGY STAR CertifiedYes
