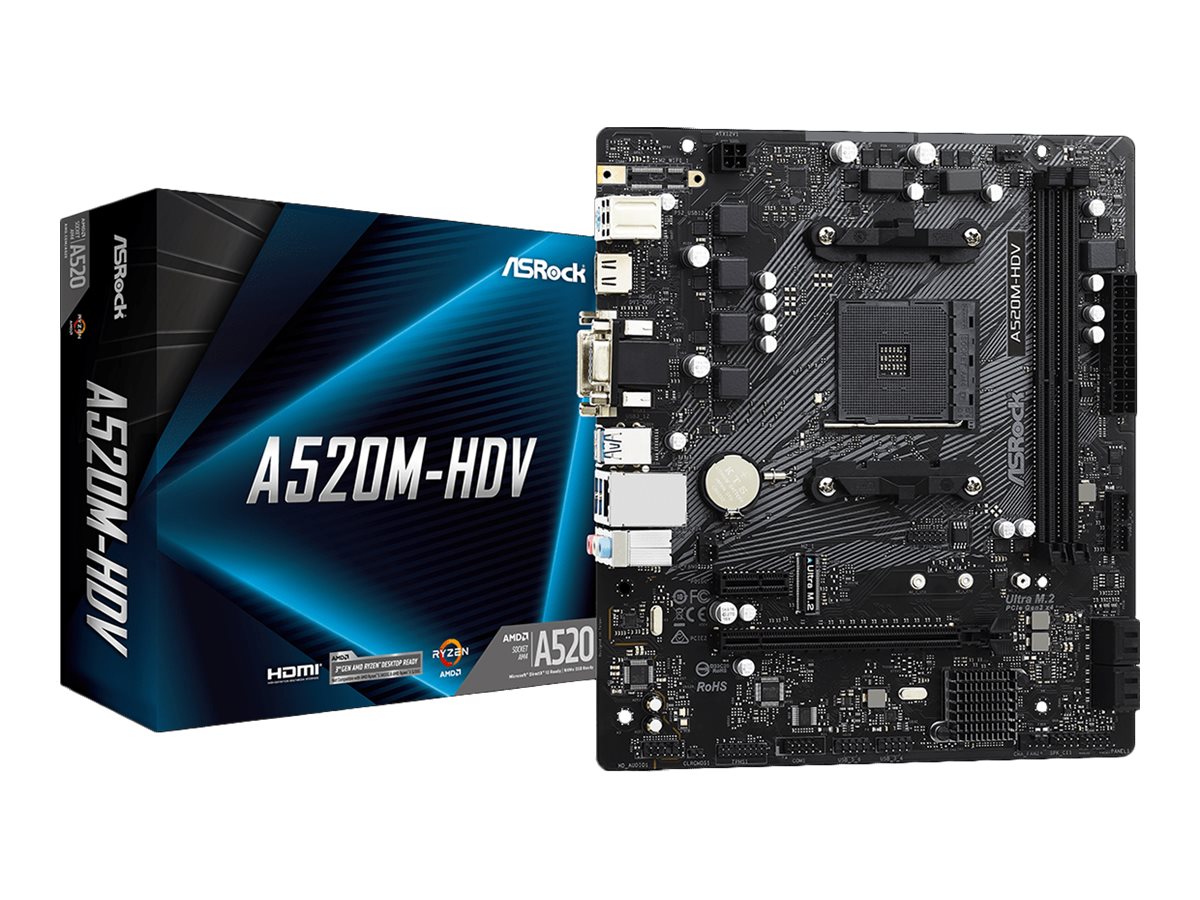

ASRock A520M-HDV - Motherboard
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ASRock A520M-HDV - Motherboard
- micro ATX
- Socket AM4
- AMD A520 Chipset
- USB 3.2 Gen 1
- Gigabit LAN
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | A520M-HDV |
| SHI Part #: | 40708079 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock A520M-HDV - Motherboard - micro ATX - Socket AM4 - AMD A520 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASRock |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 20.1 cm |
| Dimensions & Weight / Width | 23 cm |
| Header / Brand | ASRock |
| Mainboard / Chipset Type | AMD A520 |
| Mainboard / Compatible Processors | Ryzen |
| Mainboard / Processor Socket | Socket AM4 |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support |
| BIOS Type | AMI |
| Hardware Features | ASRock Super Alloy, Premium 50A Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB, ASRock Ultra M.2, ASRock Full Spike Protection, ASRock APP Shop, ASRock Live Update, 6 Phase Power Design, 15µ Gold Contact, Triple Monitor, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ESD Protection, ASRock Full HD UEFI, ASRock Instant Flash, All-Solid Capacitor motherboard Design |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection |
| Sleep / Wake Up | Wake on LAN (WOL) |
| General | |
| Chipset Type | AMD A520 |
| Compatible Processors | Ryzen (supports 3rd Generation Ryzen) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - micro ATX |
| Graphics | |
| Max Allocated RAM Size | 16 GB |
| LAN | |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | FCC, EuP Ready, ErP Ready |
| Depth | 20.1 cm |
| Included Accessories | I/O back plate, 1 x M.2 screw |
| Software Included | Drivers & utilities, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock A-Tuning, ASRock XFast LAN |
| Width | 23 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3200 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4200 MHz (O.C.), 4266 MHz (O.C.), 4333 MHz (O.C.), 4400 MHz (O.C.), 4466 MHz (O.C.), 4533 MHz (O.C.), 4600 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Technology | DDR4 |
