Juniper Networks PTX Series PTX10003-160C-AC
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

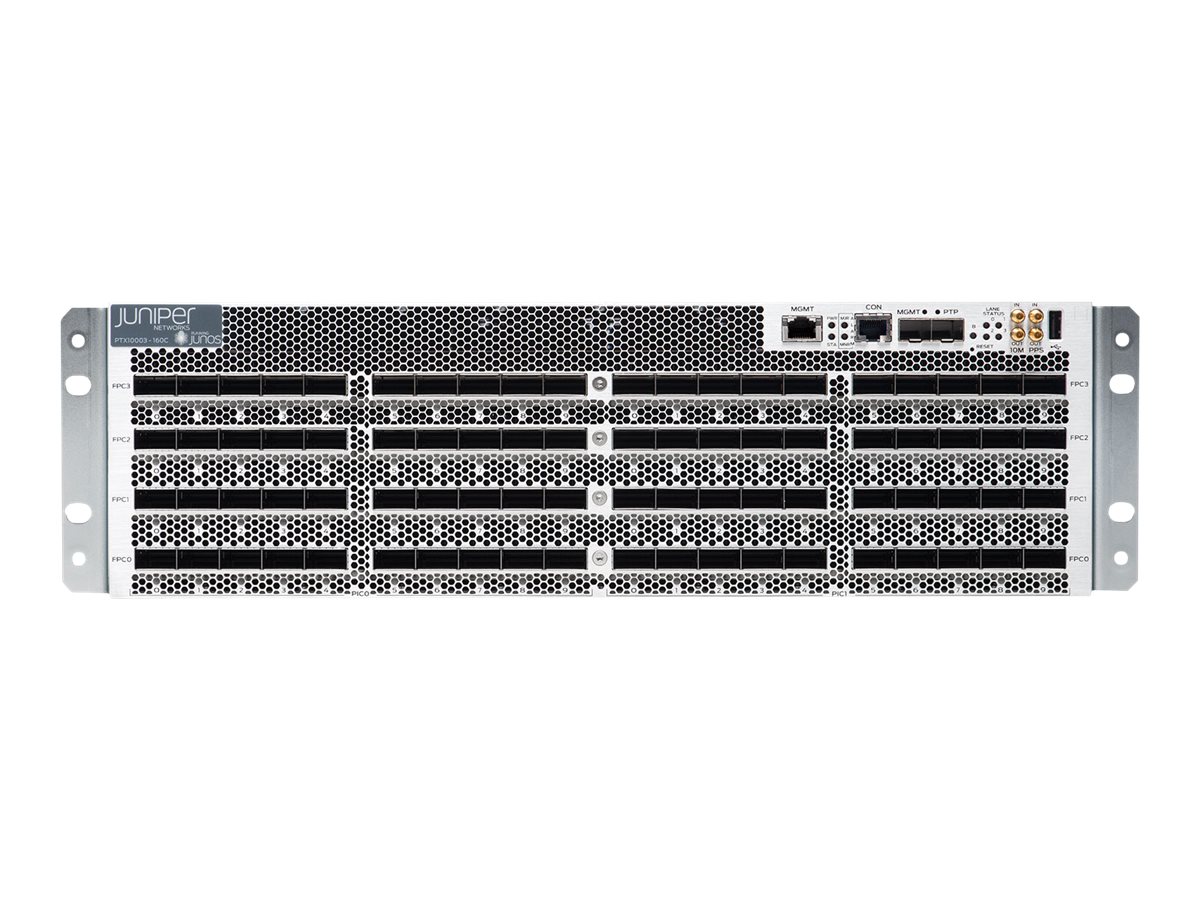

Juniper Networks PTX Series PTX10003-160C-AC
- Router 40GbE, 100GbE, 200GbE, 400GbE
- front to back airflow
- rack-mountable
| Additional Details | |
|---|---|
| Mfr Part #: | PTX10003-160C-AC |
| SHI Part #: | 37582691 |
| Category: | Routers |
| UNSPSC: | 43222609 |
| Manufacturer: | Juniper Networks |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Routers |
| Description | Juniper Networks PTX Series PTX10003-160C-AC - Router 40GbE, 100GbE, 200GbE, 400GbE - front to back airflow - rack-mountable |
| Manufacturer | Juniper Networks |
| UNSPSC | 43222609 |
| Main Specifications | |
| Dimensions & Weight / Depth | 78.7 cm |
| Dimensions & Weight / Height | 13.3 cm |
| Dimensions & Weight / Weight | 50 kg |
| Dimensions & Weight / Width | 44.2 cm |
| Header / Brand | Juniper Networks |
| Miscellaneous / Product Color | Gray |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | Rack-mountable |
| Networking / Type | Router |
| OS Provided / Type | JUNOS |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 78.7 cm |
| Height | 13.3 cm |
| Weight | 50 kg |
| Width | 44.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 46 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Compliant Standards | ETSI, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS 6/6, REACH, EN 60825-1, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, SPRING, KCC KN22 Class A, CAN/CSA-C22.2 No. 60950-1, ETSI EN 300 019, ETSI EN 300 019-2-1, ETSI EN 300 019-2-2, ETSI EN 300 019-2-3, ETSI EN 300 019-2-4 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 200 Gigabit Ethernet, 400 Gigabit Ethernet |
| Device Type | Router |
| Enclosure Type | Front to back airflow rack-mountable - 3U |
| Features | Firewall protection, 5 fans, L3VPN support, ZTP, IRB, DDoS Protection |
| Hard Drive | 400 GB |
| Performance |
|
| Processor | 1 x Intel |
| RAM | 64 GB SDRAM |
| Remote Management Protocol | NETCONF, OAM, YANG |
| Routing Protocol | BGP, MPLS, URPF |
| Miscellaneous | |
| Cables Included | 2 x power cable |
| Rack Mounting Kit | Included |
| Power | |
| Installed Qty | 4 |
| Power Consumption Operational | 3100 Watt |
| Power Device | Internal power supply - hot-plug - 3000 Watt |
| Power Redundancy | Yes |
| Voltage Required | AC 100 - 240 V (50 - 60 Hz) |
| Software / System Requirements | |
| OS Provided | JUNOS |
