SIIG JU-P70011-S1 - USB adapter
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

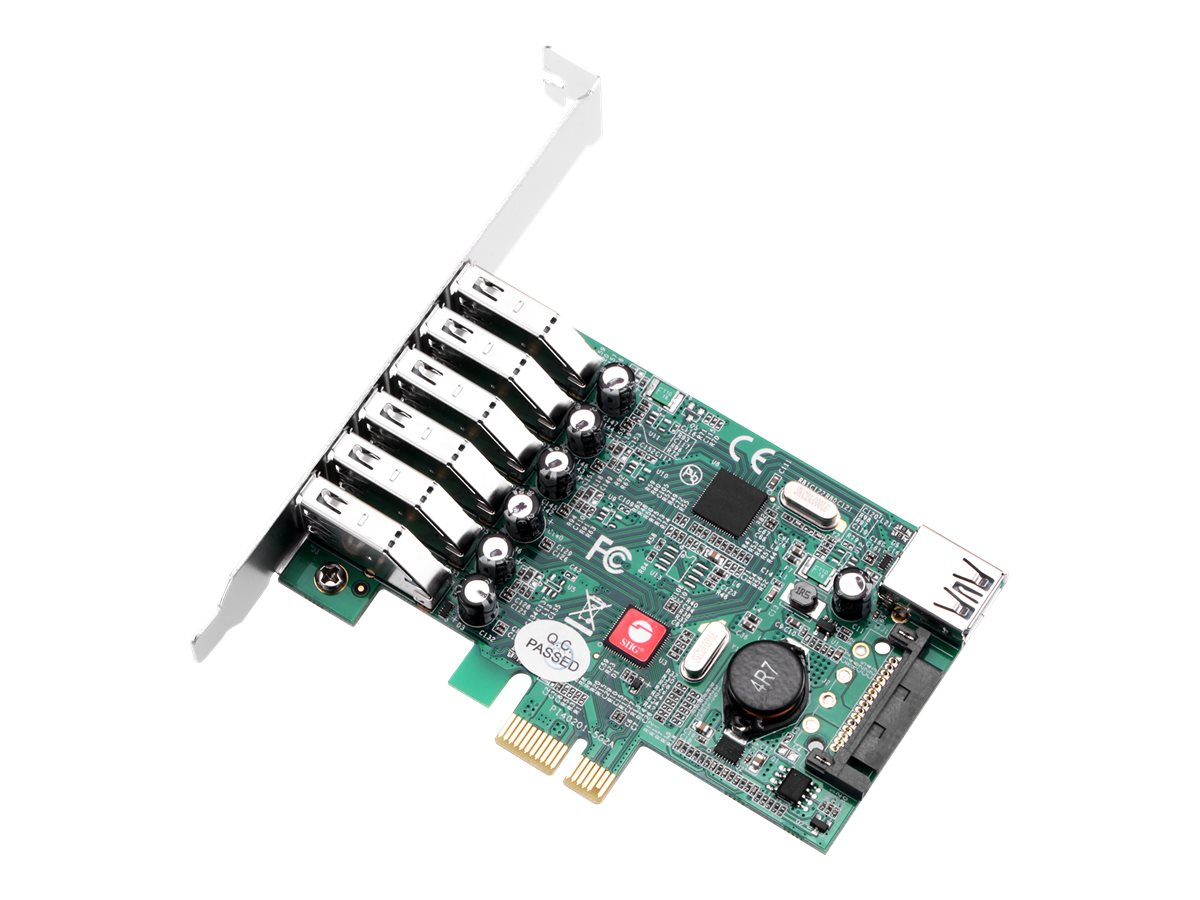

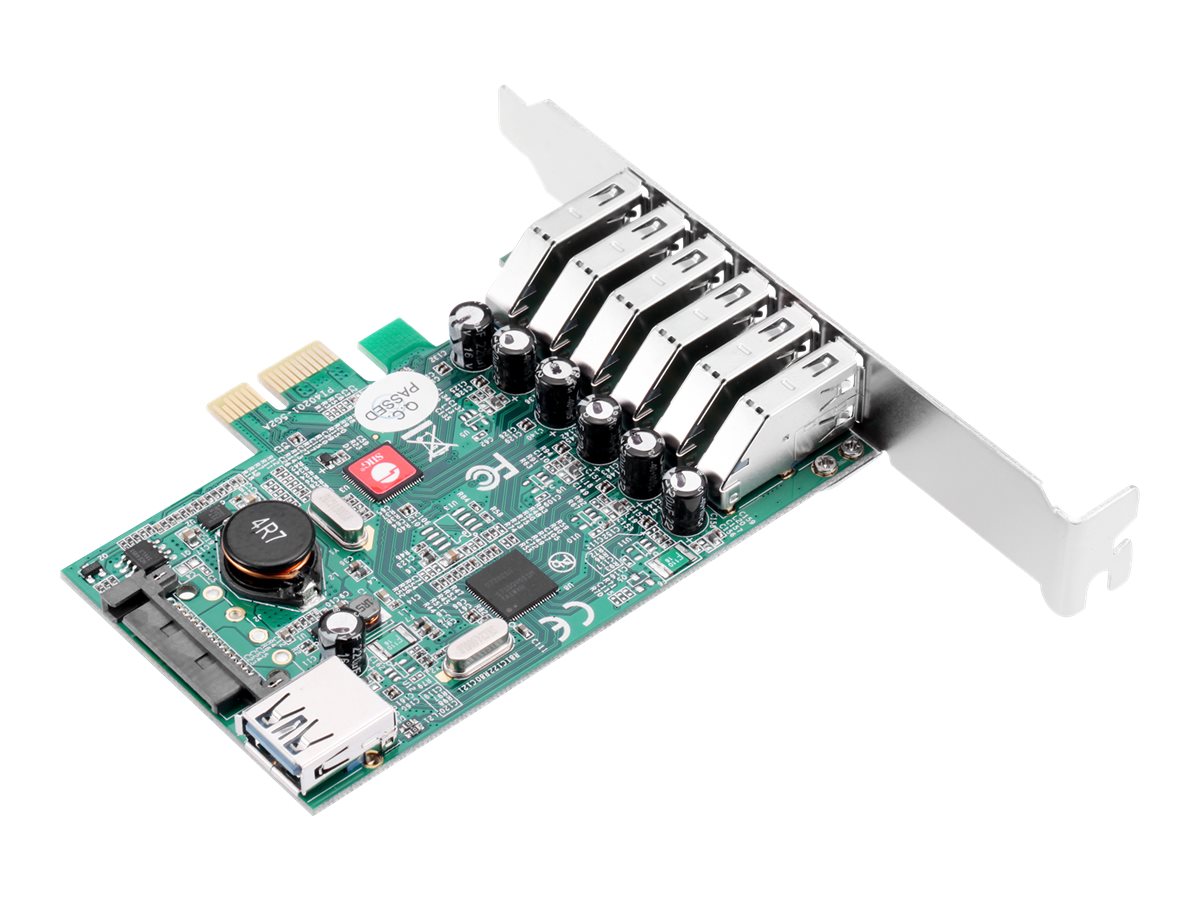

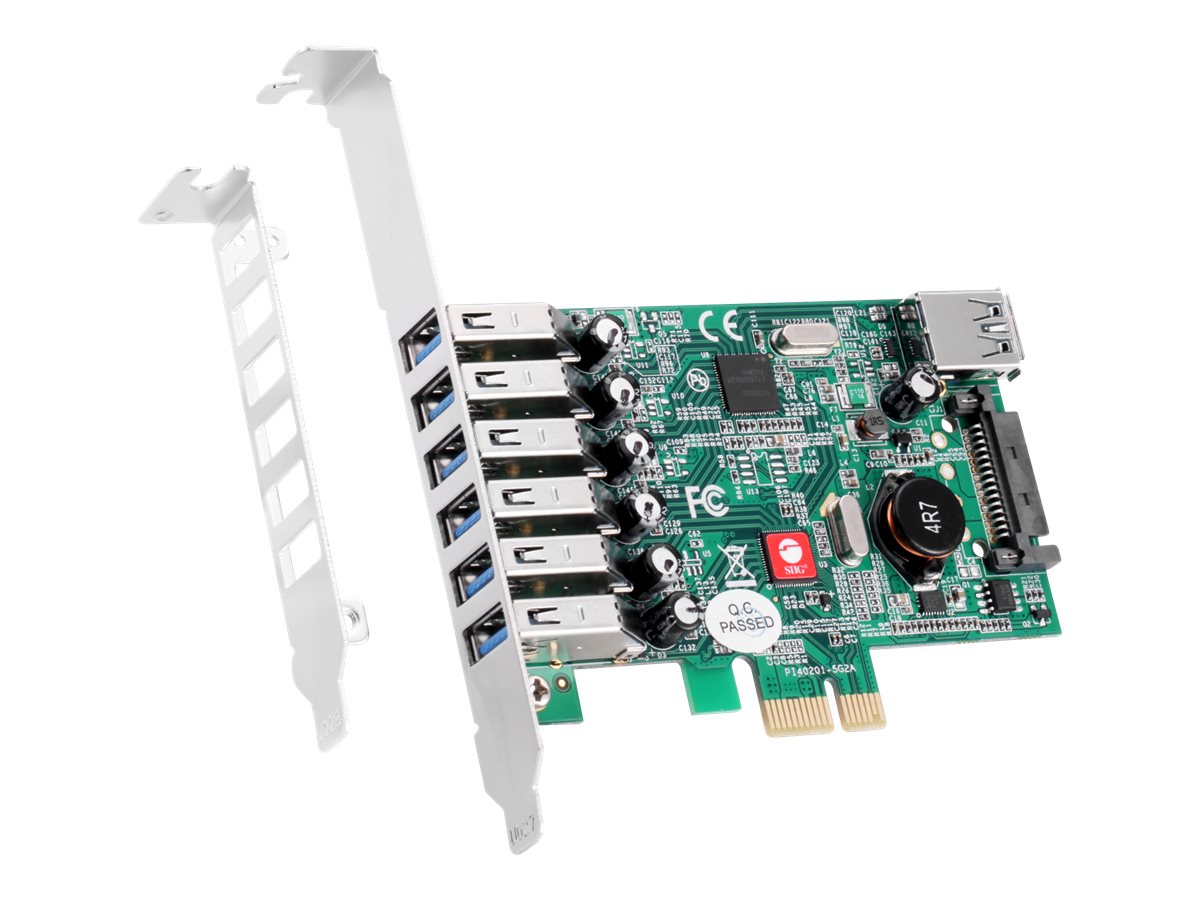

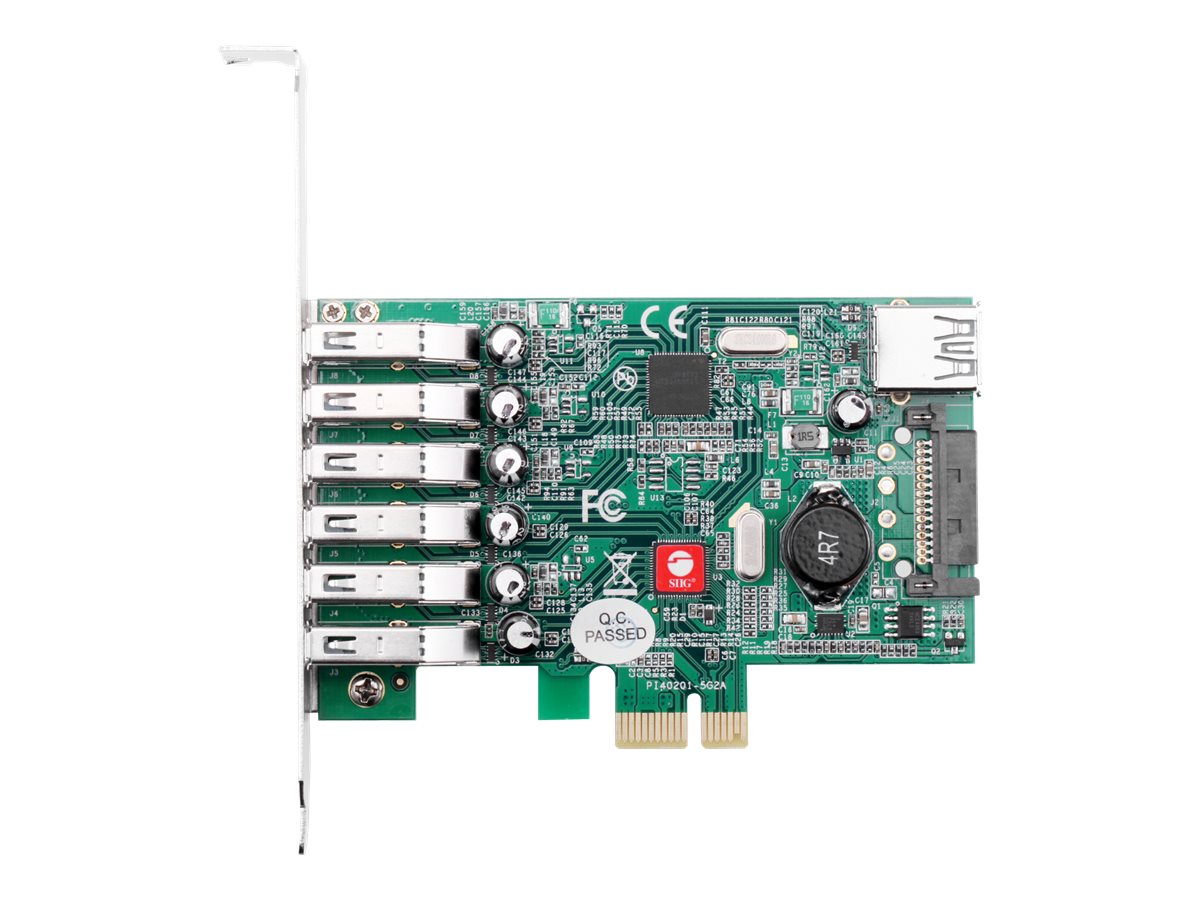

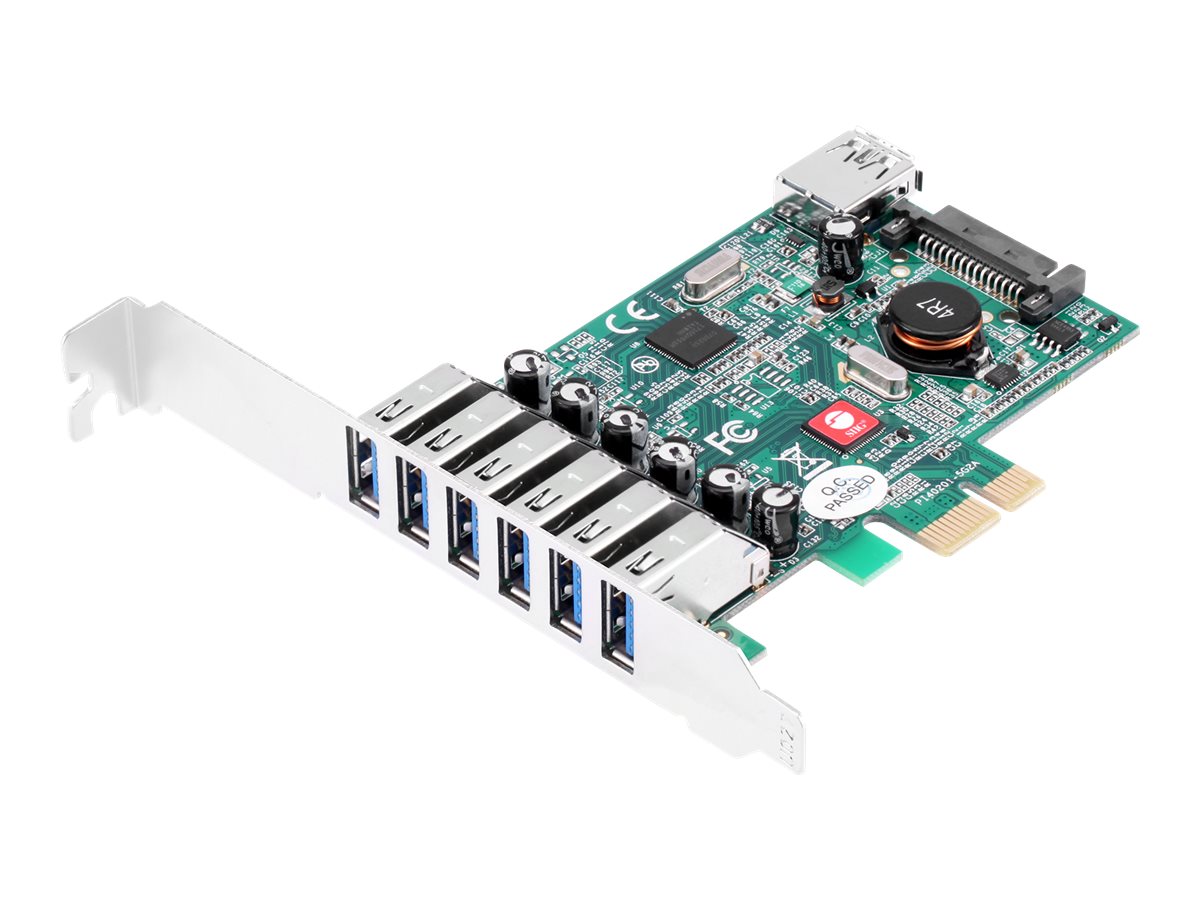

SIIG JU-P70011-S1 - USB adapter
- PCIe 2.0 low profile
- USB 3.0 x 6 + USB 3.0 (internal) x 1
- green
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | JU-P70011-S1 |
| SHI Part #: | 37417352 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | SIIG |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | SIIG JU-P70011-S1 - USB adapter - PCIe 2.0 low profile - USB 3.0 x 6 + USB 3.0 (internal) x 1 - green |
| Manufacturer | SIIG |
| MSRP | $0.00 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 11.2 cm |
| Dimensions & Weight / Height | 12 cm |
| Dimensions & Weight / Weight | 68 g |
| Dimensions & Weight / Width | 2.3 cm |
| Header / Brand | SIIG |
| Miscellaneous / Product Color | Green |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 5 Gbps |
| Networking / Type | USB adapter |
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 11.2 cm |
| Height | 12 cm |
| Weight | 68 g |
| Width | 2.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | USB adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| PCI Specification Revision | PCIe 2.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Color | Green |
| Compliant Standards | RoHS |

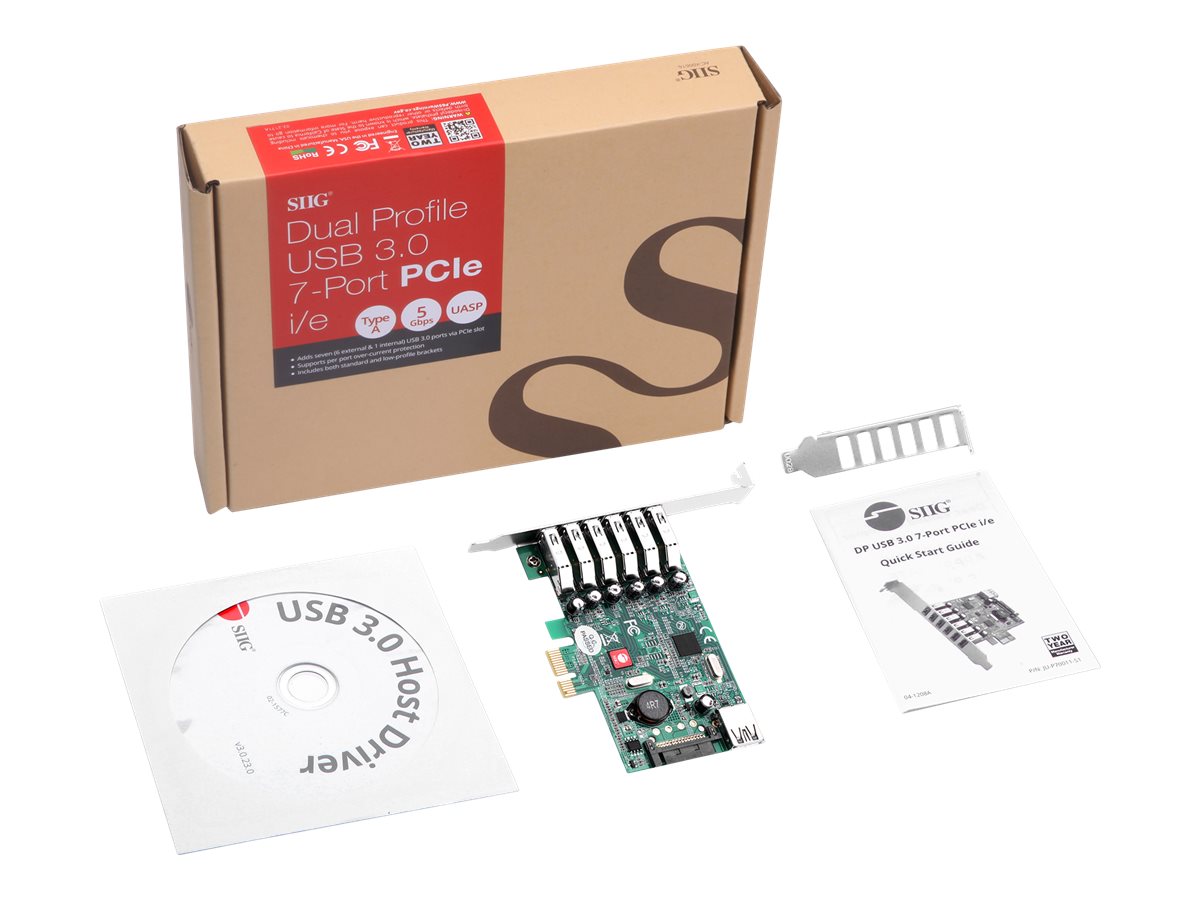

| Included Accessories | Low-profile bracket |
| Networking | |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0 |
| Connectivity Technology | Wired |
| Data Link Protocol | USB 2.0, SuperSpeed USB 3.0 |
| Data Transfer Rate | 5 Gbps |
| Features | Over-current protection, UASP |
| Ports | USB 3.0 x 6 + USB 3.0 (internal) x 1 |
| Processor / Memory | |
| Processor | Renesas uPD720201/uPD720210 |
