Grandstream GXW4504 - VoIP gateway
MSRP$2,999.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

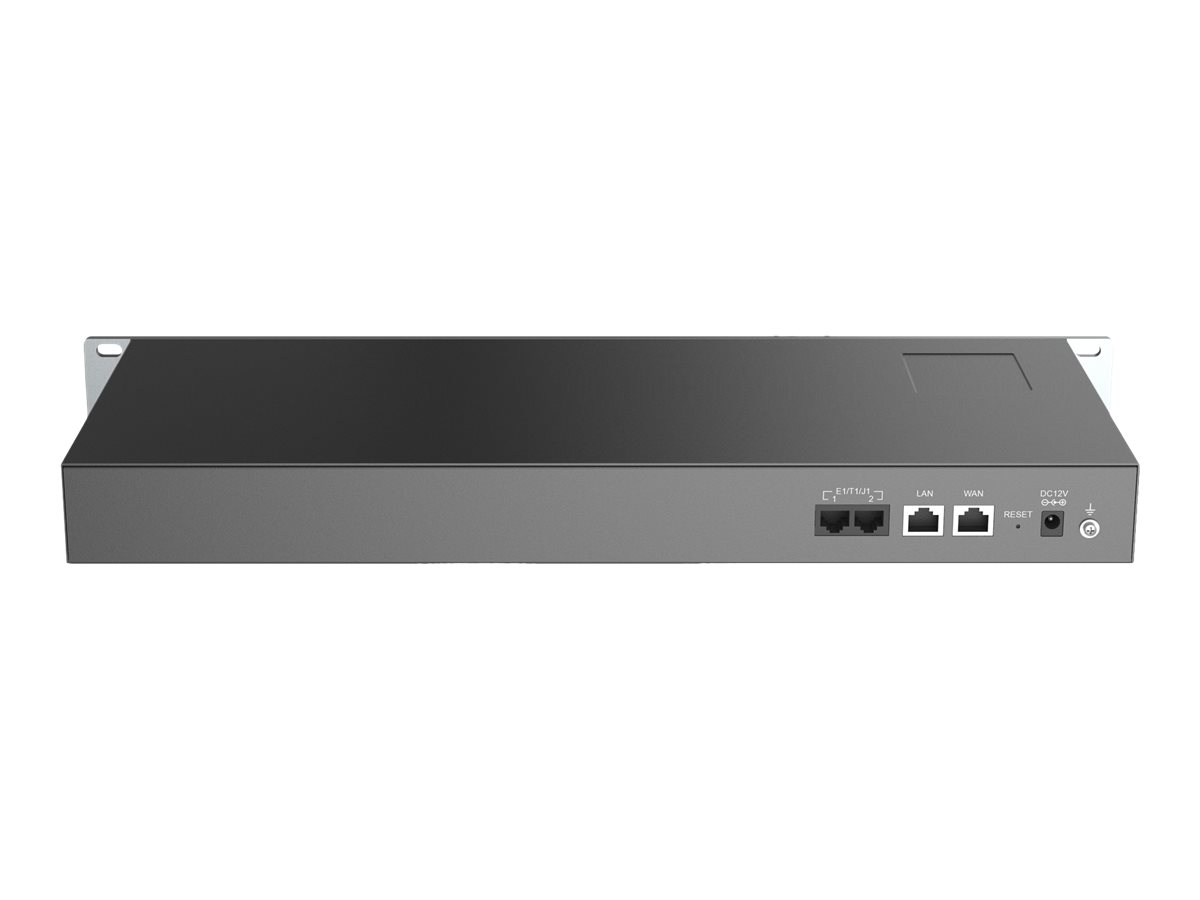

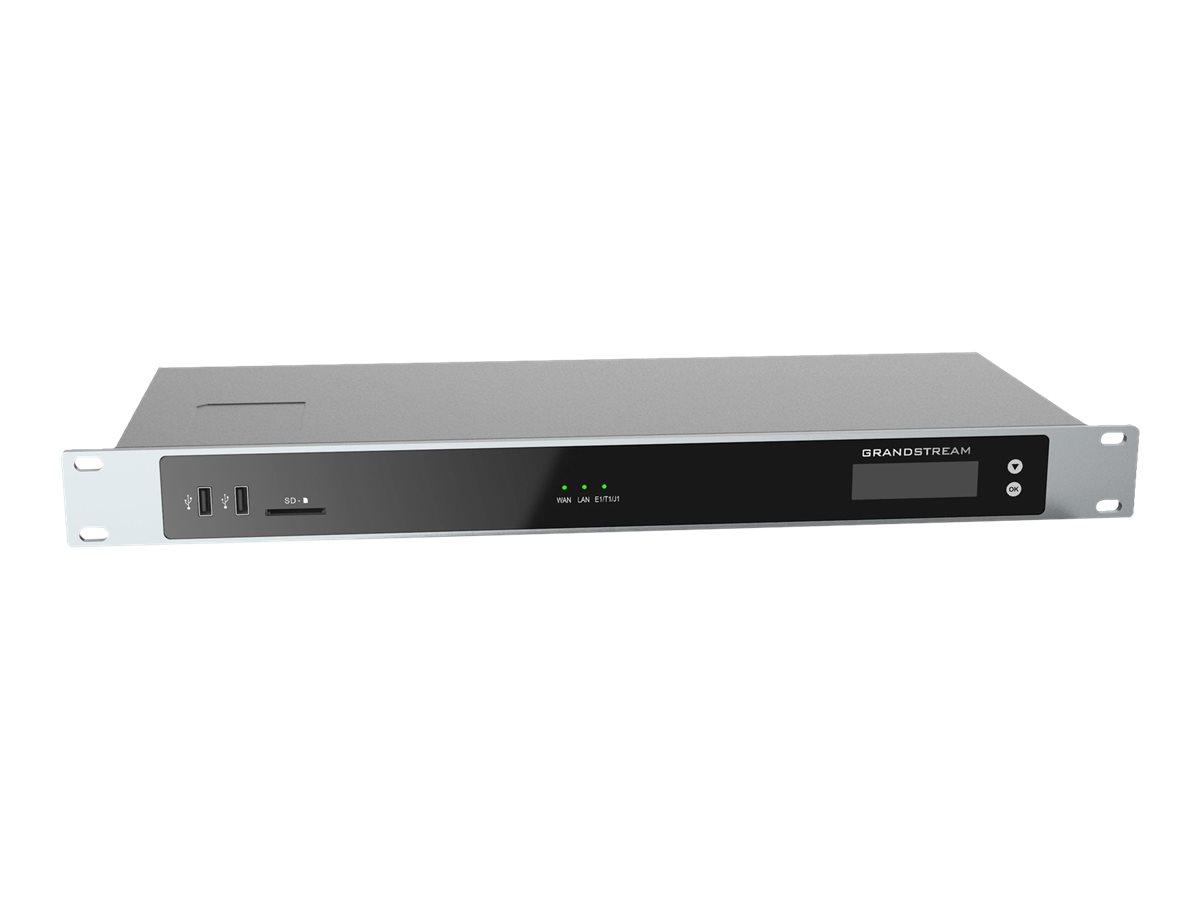

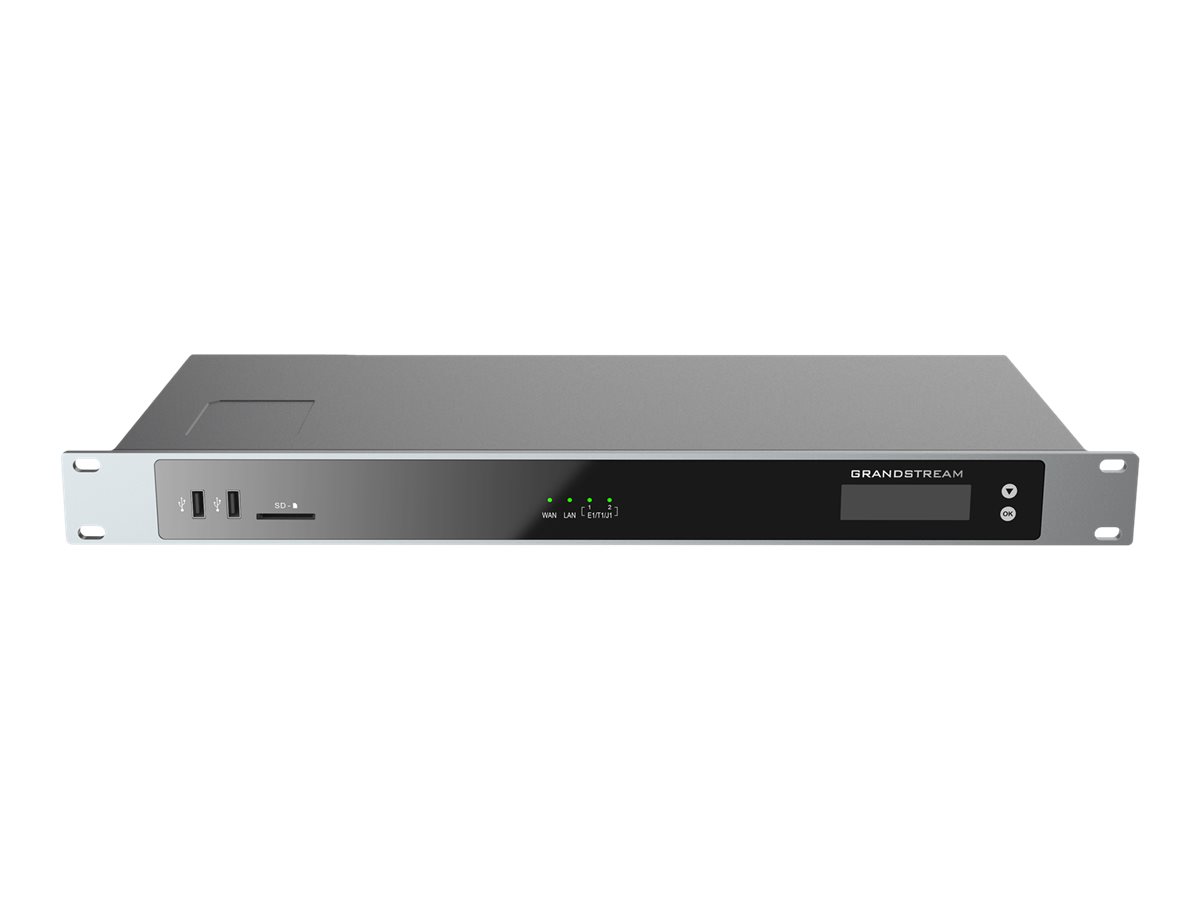

Grandstream GXW4504 - VoIP gateway
- 4 ports
- 1GbE, Frame Relay, PPP
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,999.00 |
| Mfr Part #: | GXW4504 |
| SHI Part #: | 37222189 |
| Category: | Telephones |
| UNSPSC: | 43191500 |
| Manufacturer: | Grandstream |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Telephones |
| Description | Grandstream GXW4504 - VoIP gateway - 4 ports - 1GbE, Frame Relay, PPP |
| Manufacturer | Grandstream |
| MSRP | $2,999.00 |
| UNSPSC | 43191500 |
| Main Specifications | |
| Dimensions & Weight / Depth | 19.1 cm |
| Dimensions & Weight / Height | 4.62 cm |
| Dimensions & Weight / Weight | 2.38 kg |
| Dimensions & Weight / Width | 48.5 cm |
| Header / Brand | Grandstream |
| Miscellaneous / Product Color |
|
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | External |
| Networking / Ports Qty | 4 |
| Networking / Type | VoIP gateway |
| Packaged Quantity | 1 |
| Communications | |
| Supported Flash Memory Cards | SD Memory Card |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 3.16 kg |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Built-in Devices | Status LCD |
| Depth | 19.1 cm |
| Device Type | VoIP gateway |
| Height | 4.62 cm |
| Weight | 2.38 kg |
| Width | 48.5 cm |
| IP Telephony | |
| IP Telephony Features | Comfort noise generation (CNG), voice activity detection (VAD), echo cancellation (G.168), adaptative jitter buffer, packet loss concealment (PLC), DTMF inband |
| Telephony Interfaces | 2 line (ISDN T-1/E-1) |
| Voice Codecs | G.722, G.723.1, G.729a, G.711u, G.711a, G.726, iLBC, T.38, G.729b, Opus |
| VoIP Protocols | SIP, SRTP |
| Miscellaneous | |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, UL 60950, EN55022 Class B, FCC Part 68, RoHS, EN 60950-1, FCC CFR47 Part 15 B, TBR21, AS/NZS 60950, AS/ACIF S002, TBR4, TBR12, TBR13, AS/NZS CISPR 22, RCM, ITU-T K.21, AS/NZS CISPR 24, TIA-968-B |
| Networking | |
| Capacity | Concurrent calls: 60 |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, Frame Relay, PPP |
| Encryption Algorithm | TLS |
| Features | Routing, NAT support, MPLS support, LDAP support, Syslog support, DiffServ support, manageable, IPv6 support, firmware upgradable, event log, Quality of Service (QoS), reset button, Type of Service (ToS), black list, white list, OpenVPN client |
| Form Factor | External |
| Line Rate | T-1/E-1/J-1 |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ICMP/IP, PPPoE, ARP, DHCP, DNS, DDNS, RTP, RTCP |
| Ports Qty | 4 |
| Remote Management Protocol | HTTP, HTTPS, TFTP, SSH, TR-069 |
| Status Indicators | Port status, WAN, LAN |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
