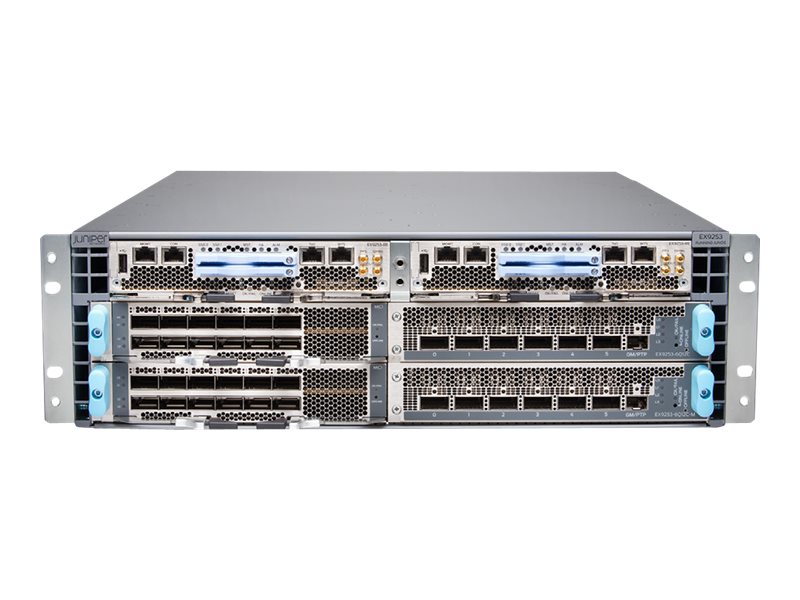

Juniper Networks EX Series 9253
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Juniper Networks EX Series 9253
- Bundle
- switch
- L3
- managed
- front to back airflow
- rack-mountable
- with Juniper Networks EX9253-6Q12C Line Card
| Additional Details | |
|---|---|
| Mfr Part #: | EX9253-AC-BND1 |
| SHI Part #: | 35453265 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Juniper Networks |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Juniper Networks EX Series 9253 - Bundle - switch - L3 - managed - front to back airflow - rack-mountable - with Juniper Networks EX9253-6Q12C Line Card |
| Manufacturer | Juniper Networks |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 76.2 cm |
| Dimensions & Weight / Height | 13.25 cm |
| Dimensions & Weight / Weight | 54.43 kg |
| Dimensions & Weight / Width | 48.26 cm |
| Header / Brand | Juniper Networks |
| Miscellaneous / Product Color | Gray |
| Networking / Form Factor | Rack-mountable |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| System Requirements / OS Required | JUNOS |
| Dimensions & Weight | |
| Depth | 76.2 cm |
| Height | 13.25 cm |
| Weight | 54.43 kg |
| Width | 48.26 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Expansion Slots | 3 (total) / 3 (free) x line-card slot |
| Installed Modules Qty (Max) | 0 (installed) / 3 (max) |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+ |
| Built-in Devices | 2 x 100 GB SSD |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3ba |
| Device Type | Switch - L3 - managed - with Juniper Networks EX9253-6Q12C Line Card |
| Enclosure Type | Front to back airflow rack-mountable 3U |
| Features | Modular design, firewall protection, BOOTP support, RARP support, ARP support, load balancing, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, WRR queuing, IPv6 support, High Availability, ASIC VPN, firmware upgradable, SNTP support, WRED, sFlow, STP support, RSTP support, MSTP support, TFTP support, ACL support, QoS, DHCP server, temperature sensor, NSB, NSR, GRES, reset button, IPv4 support, LLDP support, DHCP relay, LACP, fan tray, MIB, NDP, GRE tunneling, VSTP, NTP time synchronization, redundant hot swappable fans, static routing, SP, GVRP, redundant fans, MSDP, 4 fan trays |
| Jumbo Frame Support | 9192 bytes |
| MAC Address Table Size | 1M entries |
| Performance |
|
| Processor | 1 x Intel Xeon: 1.6 GHz |
| RAM | 64 GB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH-2, CLI |
| Routing Protocol | OSPF, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, MSDP, RIPng, MLDv2, MLD, Bidirectional Forwarding Detection (BFD), CIDR |
| Status Indicators | Link OK, alarm, SSD activity, online |
| Miscellaneous | |
| Compliant Standards | NEBS level 3, ETSI, TUV GS, CISPR 24, cUL, EN 60950, EN55022, EN 61000-3-3, EN55024, CISPR 22, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, CSA C22.2 No. 60950-00, EN 61000-4-5, UL 1950 Third Edition, EN 61000-4-11, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, RoHS, BSMI CNS 13438, EN 60825-1, VCCI V-3, EN 60825-2, CSA C22.2 No. 60950-1 Second Edition, EN 61000-3-2:2006, VCCI V-4, GR-1089-CORE, ICES-003 issue 4 Class A, GR-63-CORE, EN 300 386 |
| Power | |
| Installed Qty | 3 |
| Max Supported Qty | 6 |
| Power Consumption Operational | 2692 Watt |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 1600 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | N+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | JUNOS |
