ASRock Rack EP2C612 WS
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

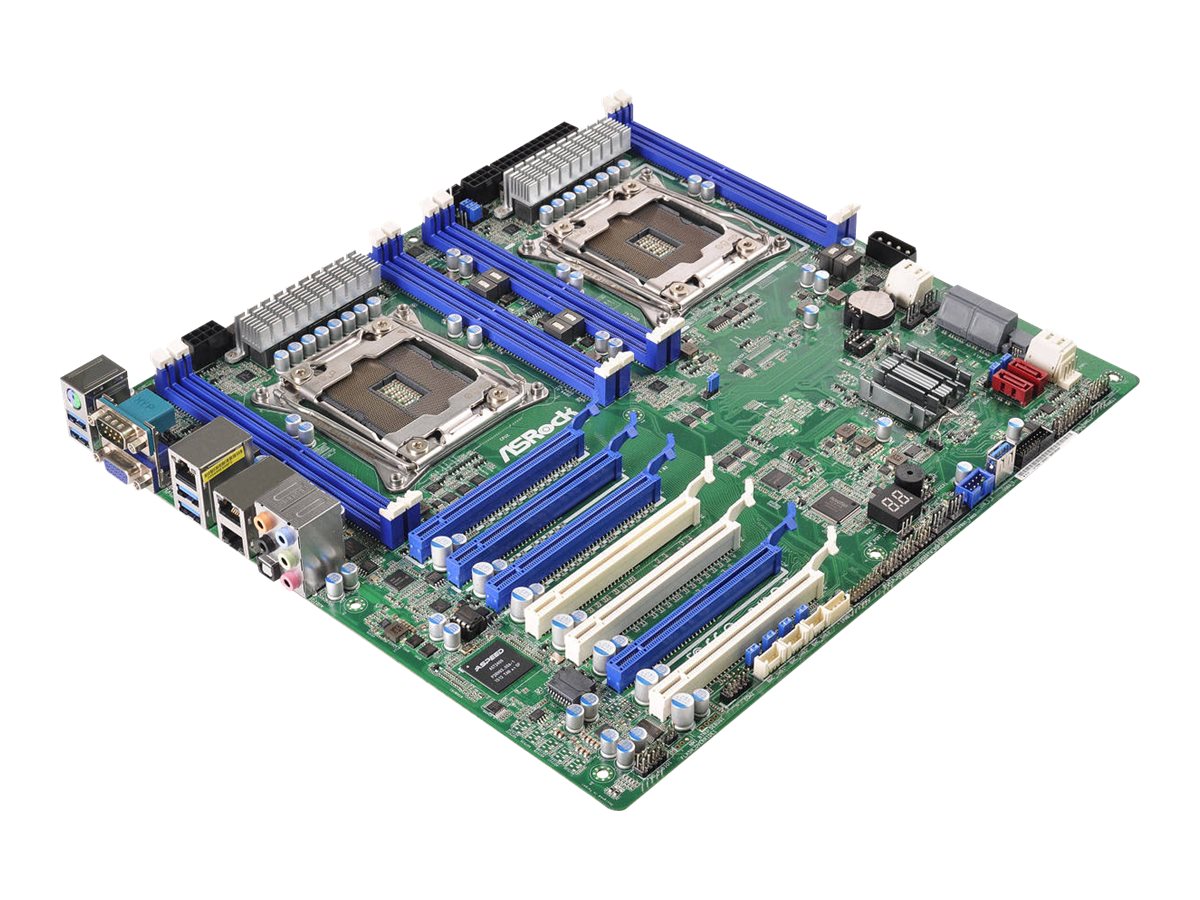

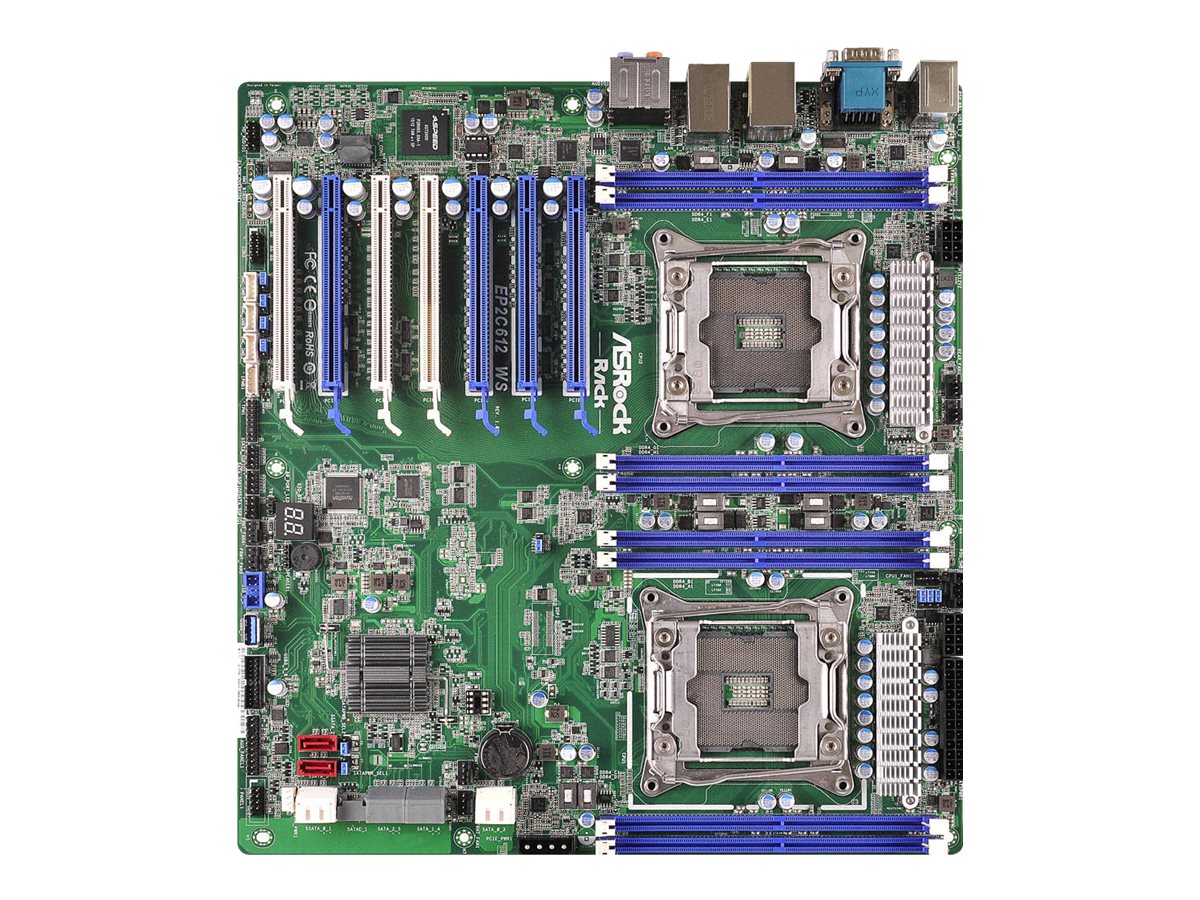

ASRock Rack EP2C612 WS
- Motherboard
- SSI EEB
- LGA2011-v3 Socket
- 2 CPUs supported
- C612 Chipset
- USB 3.0
- 2 x Gigabit LAN
- onboard graphics
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | EP2C612 WS |
| SHI Part #: | 34569845 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock Rack EP2C612 WS - Motherboard - SSI EEB - LGA2011-v3 Socket - 2 CPUs supported - C612 Chipset - USB 3.0 - 2 x Gigabit LAN - onboard graphics - HD Audio (8-channel) |
| Manufacturer | ASRock |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 33 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | ASRock Rack |
| Mainboard / Chipset Type | Intel C612 |
| Mainboard / Compatible Processors |
|
| Mainboard / Processor Socket | LGA2011-v3 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Graphics Processor | ASPEED AST2400 |
| Video Output / Type | Graphics adapter |
| Audio | |
| Audio Codec | Realtek ALC1150 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Storage Interfaces | SATA-600 -connectors: 8 x 7pin SATA, 1 x SATA Express port - 10 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Features | |
| BIOS Features | ACPI 2.0 support, UEFI BIOS, SMBIOS 2.8 support, IPMI 2.0 support |
| BIOS Type | AMI |
| Hardware Features | NVIDIA SLI Technology Support, ASRock Instant Flash, NVIDIA 3-way SLI Technology Support, NVIDIA Quad SLI Technology Support, NVIDIA 4-way SLI Technology Support, Dual LAN Teaming, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, AMD 3-way CrossFireX technology support, AMD 4-way CrossFireX technology support, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE) |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| General | |
| Chipset Type | Intel C612 |
| Compatible Processors | Xeon E5-2600 v3 series, Xeon E5-2600 v4 series |
| Max Processors Qty | 2 |
| Processor Socket | LGA2011-v3 Socket |
| Product Type | Motherboard - SSI EEB |
| Graphics | |
| Dedicated Video Memory | 16 MB DDR3 SDRAM |
| Graphics Controller | ASPEED AST2400 |
| LAN | |
| Network Controller | 2 x Intel I210 |
| Network Interfaces | 2 x Gigabit Ethernet |
| Miscellaneous | |
| Depth | 33 cm |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 1600 MHz, 1866 MHz, 2133 MHz |
| Features | Quad channel memory architecture |
| Registered or Buffered | Registered, Load-Reduced, Non-Volatile |
| Supported RAM Integrity Check | ECC |
| Technology | DDR4 |
