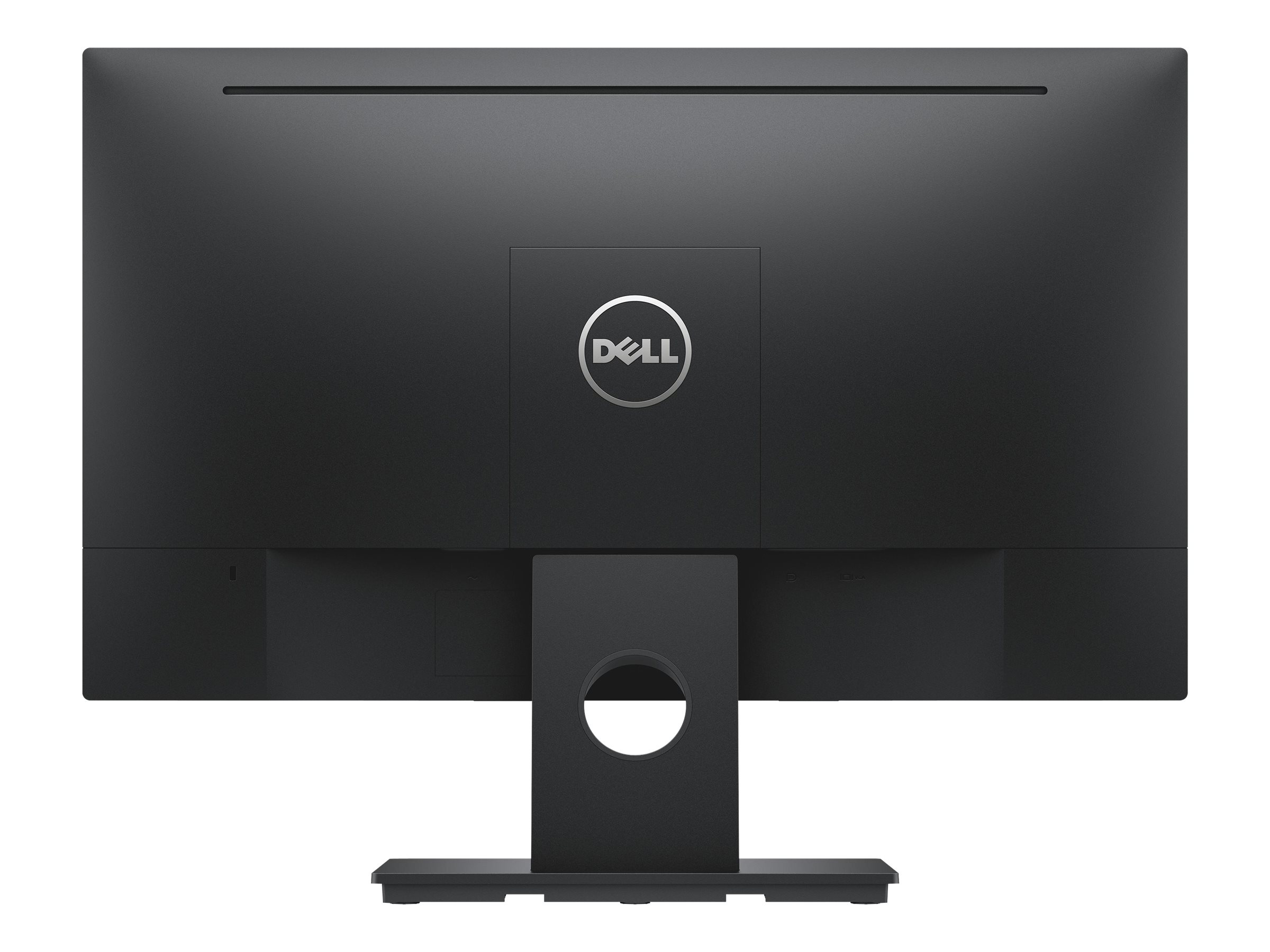

Dell E2316H - LED monitor
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Dell E2316H - LED monitor
- 23" (23" viewable)
- 1920 x 1080 Full HD (1080p) @ 60 Hz
- TN
- 250 cd/m²
- 1000:1
- 5 ms
- VGA, DisplayPort
- black
- for Chromebook 3120; Latitude 3350, E5270, E5470, E5570, E7270, E7470; OptiPlex 3040, 5040
| Additional Details | |
|---|---|
| Mfr Part #: | E2316H |
| SHI Part #: | 30888854 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | Dell |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | Dell E2316H - LED monitor - 23" (23" viewable) - 1920 x 1080 Full HD (1080p) @ 60 Hz - TN - 250 cd/m² - 1000:1 - 5 ms - VGA, DisplayPort - black - for Chromebook 3120; Latitude 3350, E5270, E5470, E5570, E7270, E7470; OptiPlex 3040, 5040 |
| Manufacturer | Dell |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 18 cm |
| Dimensions & Weight / Height | 41.5 cm |
| Dimensions & Weight / Weight | 3.5 kg |
| Dimensions & Weight / Width | 54.48 cm |
| Display / Diagonal Size | 23 in |
| Display / Diagonal Size (metric) | 58.42 cm |
| Display / Interface |
|
| Display / Native Resolution | 1920 x 1080 |
| Display / Pixel Pitch | 0.265 mm |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | Dell |
| Image Brightness | 250 cd/m² |
| Miscellaneous / Compliant Standards |
|
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Compatibility Information | |
| Designed For |
|
| Connectivity | |
| Interfaces |
|
| Dimensions & Weight | |
| Dimensions & Weight Details |
|
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Aspect Ratio | 16:9 |
| Backlight Technology | WLED |
| Brightness | 250 cd/m² |
| Color | Black |
| Color Gamut | 72% (CIE 1931), 83% (CIE 1976) |
| Color Support | 16.7 million colors |
| Contrast Ratio | 1000:1 |
| Controls & Adjustments | Brightness, contrast, H/V position, sharpness, input select, color temperature, phase, clock, aspect control |
| Diagonal Size | 23" |
| Dimensions (WxDxH) | 54.48 cm x 18 cm x 41.5 cm - with stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Features | Flicker Free technology, Energy Gauge, backlight dimming control, LED light bar system |
| Horizontal Refresh Rate | 30 - 83 kHz |
| Horizontal Viewing Angle | 170 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| OSD Languages | Chinese (simplified), Brazilian Portuguese, English, German, French, Russian, Spanish, Japanese |
| Panel Type | TN |
| Pixel Pitch | 0.265 mm |
| Response Time | 5 ms (black-to-white) |
| Screen Coating | Anti-glare, 3H Hard Coating |
| Vertical Refresh Rate | 56 - 76 Hz |
| Vertical Viewing Angle | 160 |
| Video Bandwidth | 148.5 MHz |
| Weight | 3.5 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Mechanical | |
| Display Position Adjustments | Tilt |
| Tilt Angle | -6/+22 |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Cables Included | 1 x DisplayPort cable |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Compliant Standards | Plug and Play, DDC/CI, RoHS, CECP, EDID compatible |
| Features | Security lock slot (cable lock sold separately), LED indicator, integrated cable management, VESA interface support, Dell Soundbar mounting slots |
| Included Accessories | Stand, VESA screw cover |
| Security Slot Type | Kensington security slot |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (Typical) | 25 watt |
| Power Consumption Sleep | 0.3 watt |
| Power Consumption Stand by | 0.3 watt |
| Software / System Requirements | |
| Included Software | Drivers & Utilities, Dell Display Manager |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
