EDGE E3 - SSD - 1 TB
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

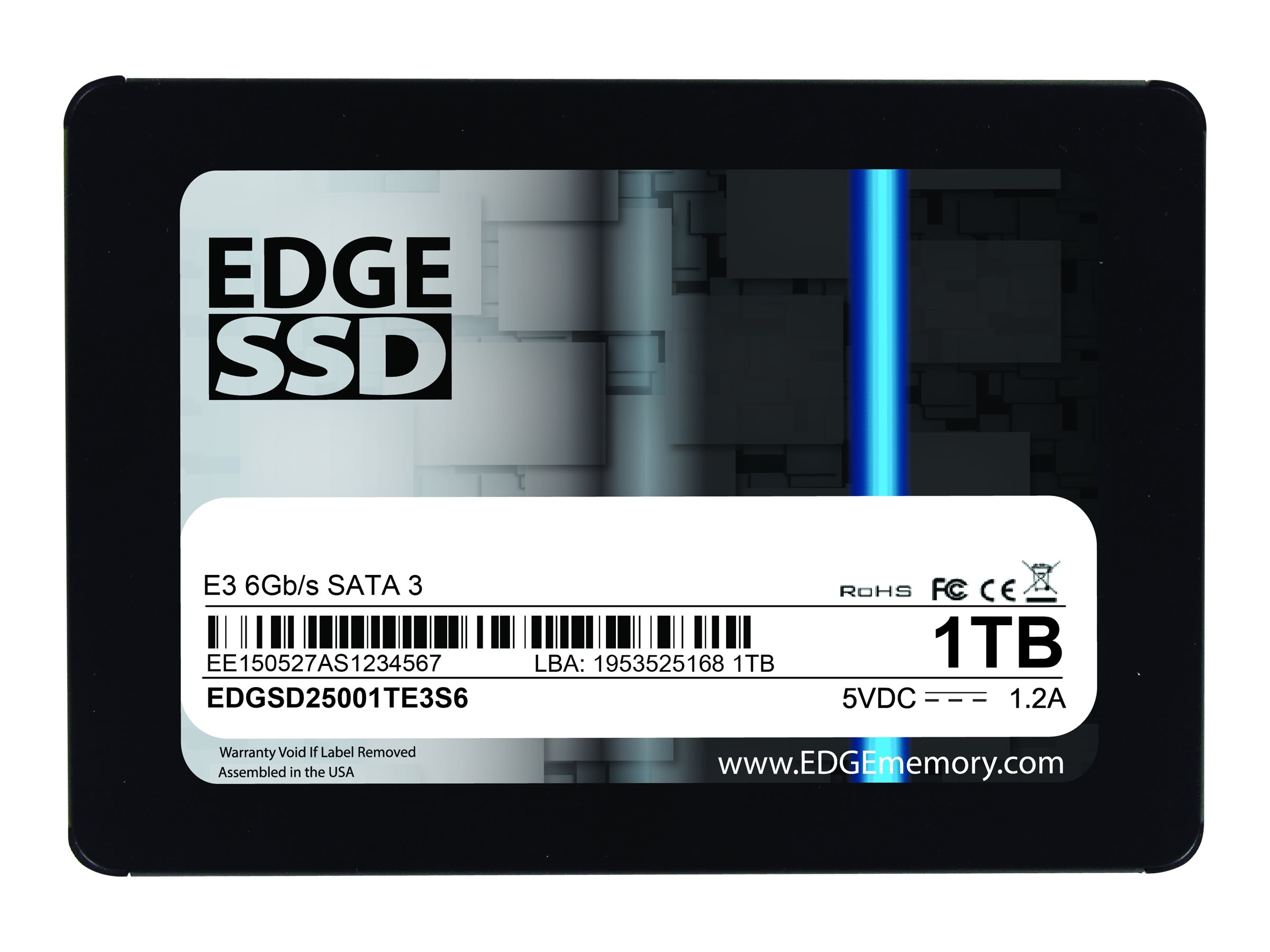

EDGE E3 - SSD - 1 TB
- internal
- 2.5"
- SATA 6Gb/s
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PE246631 |
| SHI Part #: | 30515545 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Edge Memory |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | EDGE E3 - SSD - 1 TB - internal - 2.5" - SATA 6Gb/s - TAA Compliant |
| Manufacturer | Edge Memory |
| MSRP | $0.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 7 mm |
| Dimensions & Weight / Weight | 54.4 g |
| Dimensions & Weight / Width | 69.85 mm |
| Hard Drive / Capacity | 1 TB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface | Serial ATA-600 |
| Header / Brand | EDGE |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x SATA 6 Gb/s - 7 pin Serial ATA |
| General | |
| Capacity | 1 TB |
| Depth | 100 mm |
| Device Type | Solid state drive - internal |
| Features | Temperature sensor, TRIM support, Secure Erase function, Wear Leveling Support, Error Correction Code (ECC), DDR3 DRAM Cache, DEVSLP SATA low power mode, Silicon Motion SM2246EN controller, Early Bad Block Retirement, DataRefresh, upgradable firmware, S.M.A.R.T. |
| Form Factor | 2.5" |
| Height | 7 mm |
| Interface | SATA 6Gb/s |
| NAND Flash Memory Type | Multi-level cell (MLC) |
| Weight | 54.4 g |
| Width | 69.85 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, WWN |
| TAA Compliant | Yes |
| Performance | |
| 4KB Random Read | 76000 IOPS |
| 4KB Random Write | 76000 IOPS |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 560 MBps (read) / 460 MBps (write) |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 1,500,000 hours |
| Software & System Requirements | |
| OS Required | Linux, Apple MacOS X 10.4 or later, Microsoft Windows Vista or later |
