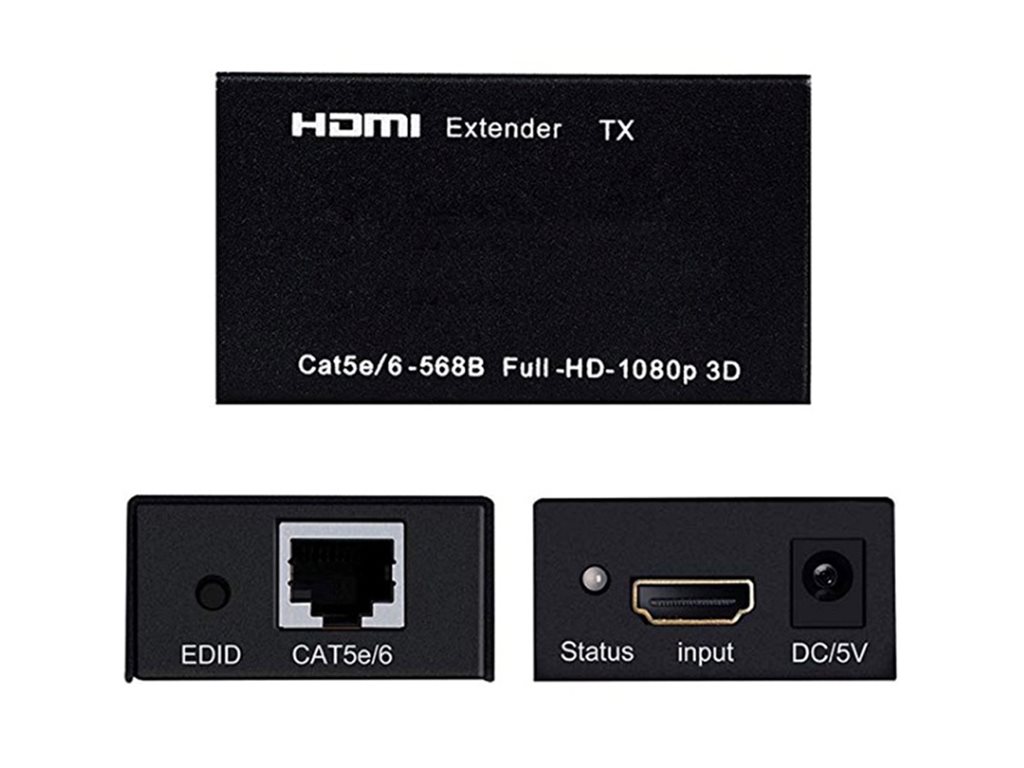

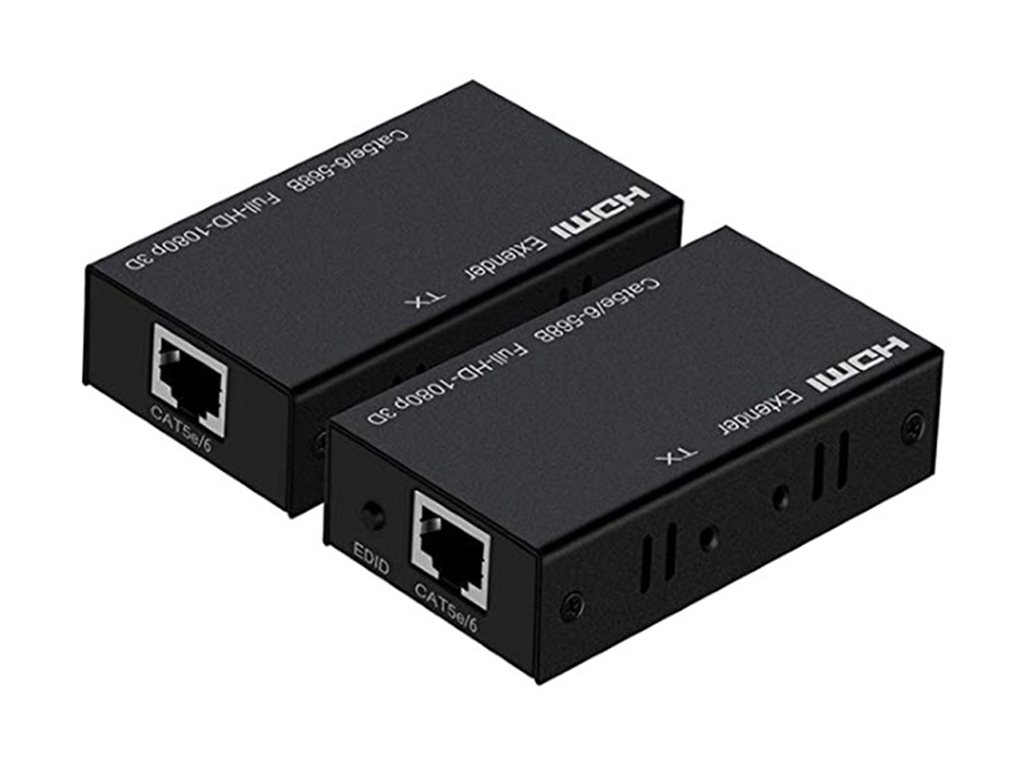

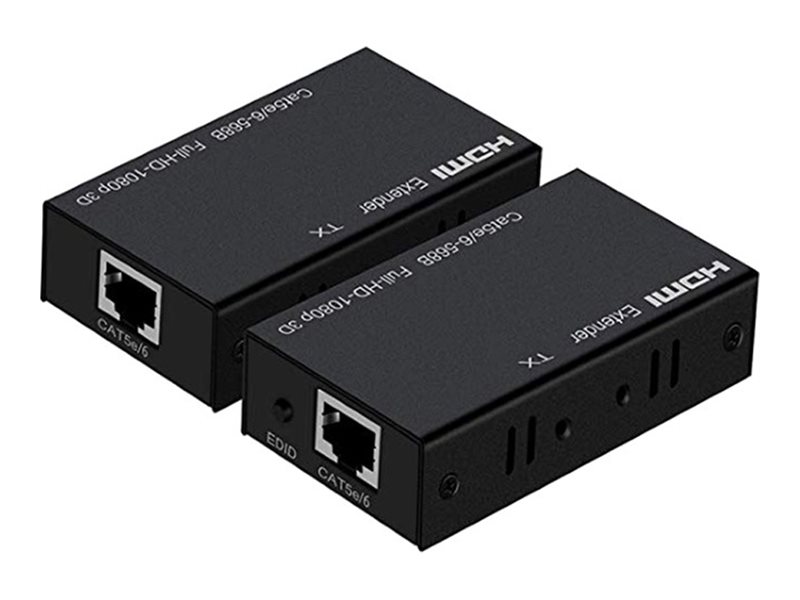

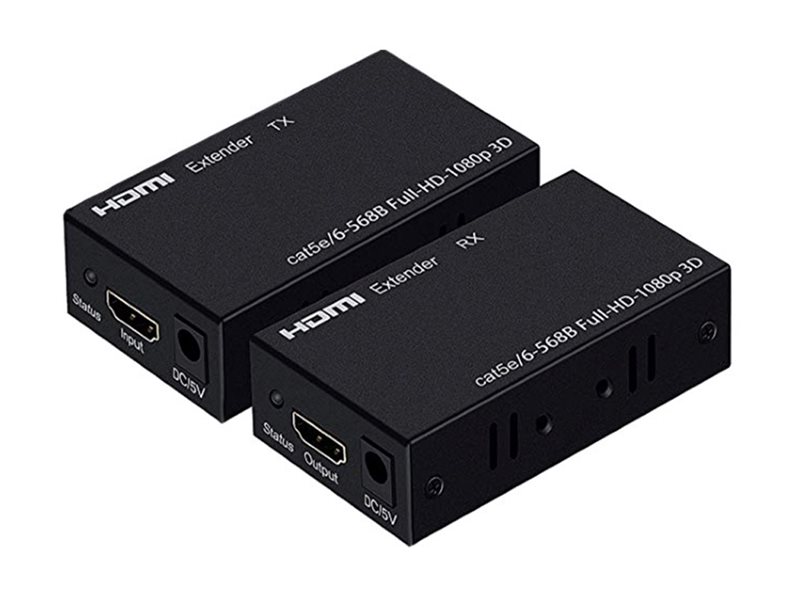

4XEM HDMI Extender Over Double Cat-5e/Cat-6
MSRP$129.99
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
4XEM HDMI Extender Over Double Cat-5e/Cat-6
- Video/audio extender
- HDMI
- over 2 x CAT 5e/6
- up to 30 m
- for P/N: 4XHDMI4K2KPRO100
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $129.99 |
| Mfr Part #: | 4XHDMIEXT30M |
| SHI Part #: | 26833205 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | 4XEM |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | 4XEM HDMI Extender Over Double Cat-5e/Cat-6 - Video/audio extender - HDMI - over 2 x CAT 5e/6 - up to 30 m - for P/N: 4XHDMI4K2KPRO100 |
| Manufacturer | 4XEM |
| MSRP | $129.99 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Header / Brand | 4XEM |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | HDMI |
| Networking / Form Factor | External |
| Networking / Type | Video/audio extender |
| Packaged Quantity | 1 |
| Compatibility Information | |
| Designed For | P/N: 4XHDMI4K2KPRO100 |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -15 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (output) female |
| General | |
| Device Type | Video/audio extender |
| Form Factor | External |
| Miscellaneous | |
| Compliant Standards | CEC |
| Networking | |
| Compliant Standards | HDCP 1.2 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Features | HDCP compliant |
| Max Resolution | 1920 x 1200 / 1080p |
| Max Transfer Distance | 30 m |
| Max Video Bandwidth | 165 MHz |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
