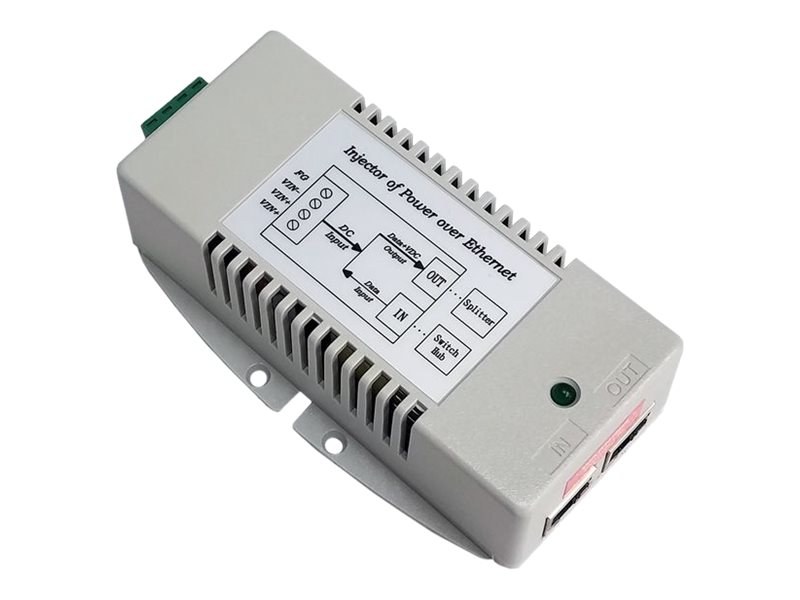

Tycon Power Systems TP-DCDC-1248GD-HP
MSRP$114.95
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Tycon Power Systems TP-DCDC-1248GD-HP
- PoE injector
- DC 12 V
- 35 Watt
- output connectors: 1
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $114.95 |
| Mfr Part #: | TP-DCDC-1248GD-HP |
| SHI Part #: | 26807472 |
| Category: | Power adapters or inverters |
| UNSPSC: | 39121006 |
| Manufacturer: | Tycon Power Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power adapters or inverters |
| Description | Tycon Power Systems TP-DCDC-1248GD-HP - PoE injector - DC 12 V - 35 Watt - output connectors: 1 |
| Manufacturer | Tycon Power Systems |
| MSRP | $114.95 |
| UNSPSC | 39121006 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.6 cm |
| Dimensions & Weight / Height | 3.6 cm |
| Dimensions & Weight / Weight | 134 g |
| Dimensions & Weight / Width | 12.5 cm |
| Header / Brand | Tycon Power Systems |
| Miscellaneous / Product Color | Gray |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 1 |
| Power Device / Voltage Required | DC 12 V |
| Product Type | PoE injector |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 7.6 cm |
| Height | 3.6 cm |
| Weight | 134 g |
| Width | 12.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| General | |
| Device Type | PoE injector - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | IEEE 802.3at, IEEE 802.3af, UL, FCC Class B certified, EN55022 Class B, CSA 22.2, TUV, EN 60950, RoHS |
| Features | Redundant power connector, short-circuit protection, overcurrent protection, reverse polarity protection, overvoltage protection |
| MTBF | 106,924 hours |
| Power Device | |
| Efficiency | 75%+ |
| Input Connectors | 2 x screw terminal |
| Input Voltage | DC 12 V |
| Input Voltage Range | DC 10 - 15 V |
| Output Voltage | DC 56 V |
| Power Capacity | 35 Watt |
| Power Output Connectors Details | 1 x RJ-45 - 56 V 0.625 A |
