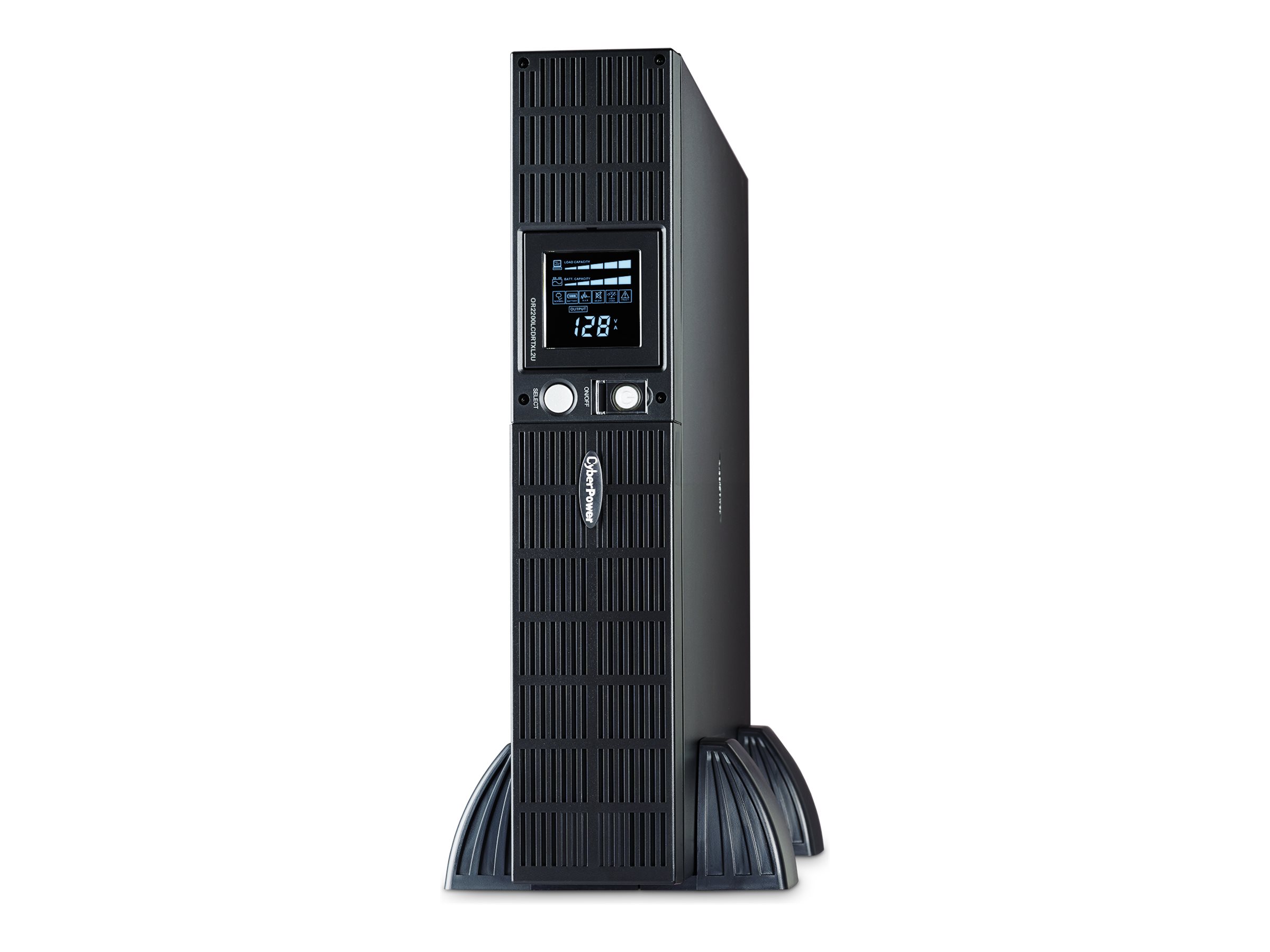

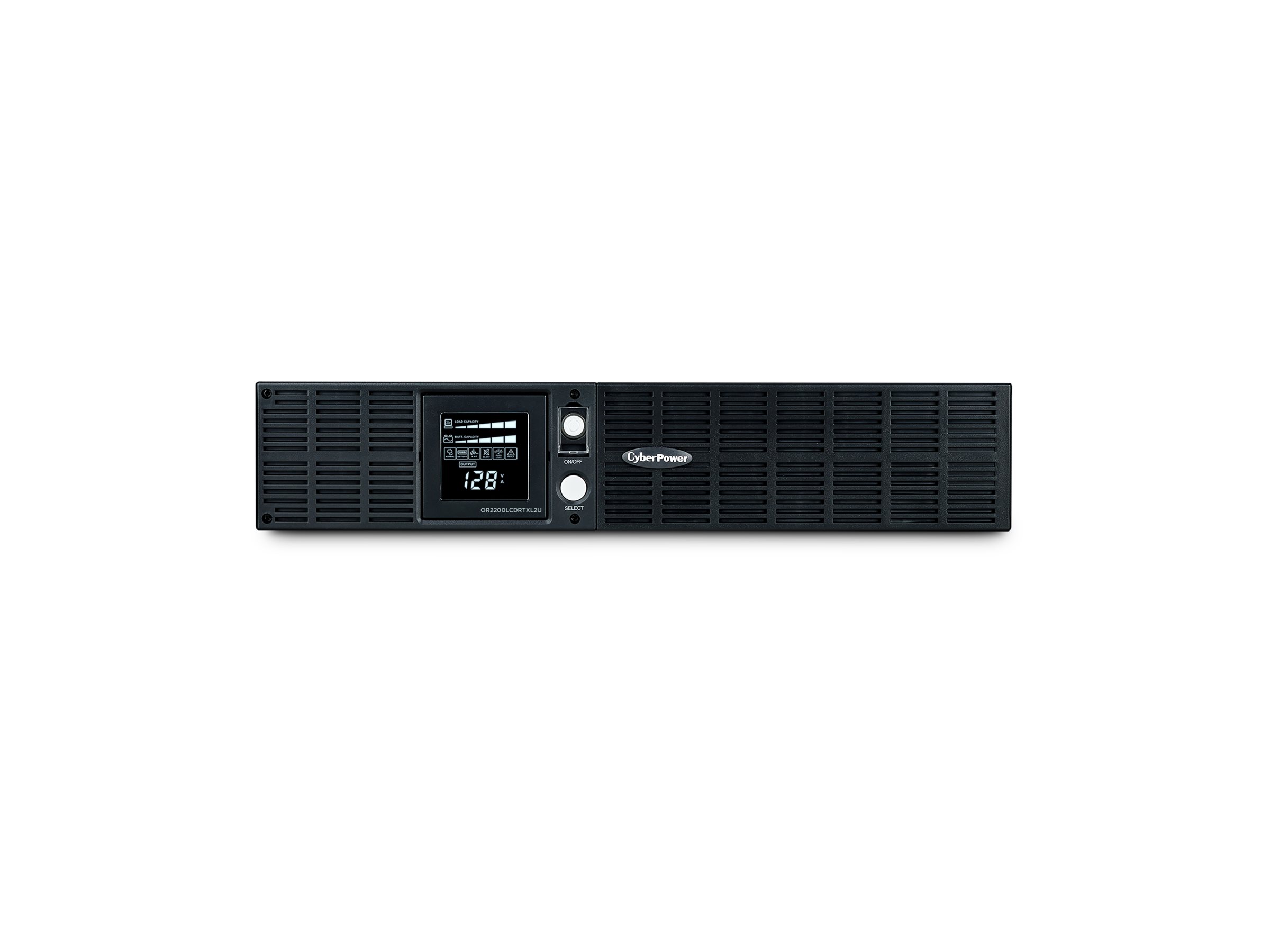

CyberPower Smart App Intelligent LCD OR2200LCDRTXL2U

MSRP$1,039.95
$1,005.84
CyberPower Smart App Intelligent LCD OR2200LCDRTXL2U
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • UPS
  • AC 90-140 V
  • 1650 Watt
  • 2190 VA 9 Ah
  • RS-232, USB
Contracts
   DIR-CPO-5094
CyberPower Smart App Intelligent LCD OR2200LCDRTXL2U
  • UPS
  • AC 90-140 V
  • 1650 Watt
  • 2190 VA 9 Ah
  • RS-232, USB
  • output connectors: 8
  • 2U
  Additional Details
Price: $1,005.84
MSRP: $1,039.95
Mfr Part #: OR2200LCDRTXL2U
SHI Part #: 21478164
Category: Power conditioning equipment
UNSPSC: 39121000
Manufacturer: CyberPower
Product Type: Hardware
General Information
CategoryPower conditioning equipment
DescriptionCyberPower Smart App Intelligent LCD OR2200LCDRTXL2U - UPS - AC 90-140 V - 1650 Watt - 2190 VA 9 Ah - RS-232, USB - output connectors: 8 - 2U
ManufacturerCyberPower
MSRP$1,039.95
UNSPSC39121000
Main Specifications
Dimensions & Weight / Depth47.7 cm
Dimensions & Weight / Height8.9 cm
Dimensions & Weight / Weight40.82 kg
Dimensions & Weight / Width43.2 cm
Header / BrandCyberpower
Networking / Remote Management Interface
  • RS-232
  • USB
Packaged Quantity1
Power Device / Form FactorExternal
Power Device / Output Connector Qty8
Power Device / Power Capacity (VA)2190 VA
Power Device / UPS TechnologyLine interactive
Power Device / Voltage RequiredAC 90-140 V
Product TypeUPS
Service & Support / Type3-year warranty
System Requirements / OS Required
  • Microsoft Windows 2000
  • Microsoft Windows 2003
  • Microsoft Windows 7
  • Microsoft Windows Server 2008
  • Microsoft Windows Vista (32/64 bits)
  • Microsoft Windows XP
  • Microsoft Windows XP 64-bit Edition
Battery
Capacity9 Ah
Quantity4
Recharge Time8 hours
Run Time (Up To)6 min at full load
TechnologyLead acid
Voltage Provided12 V
Dimensions & Weight
Depth47.7 cm
Height8.9 cm
Weight40.82 kg
Width43.2 cm
Environmental Parameters
Humidity Range Operating0 - 90%
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x expansion slot
Interfaces

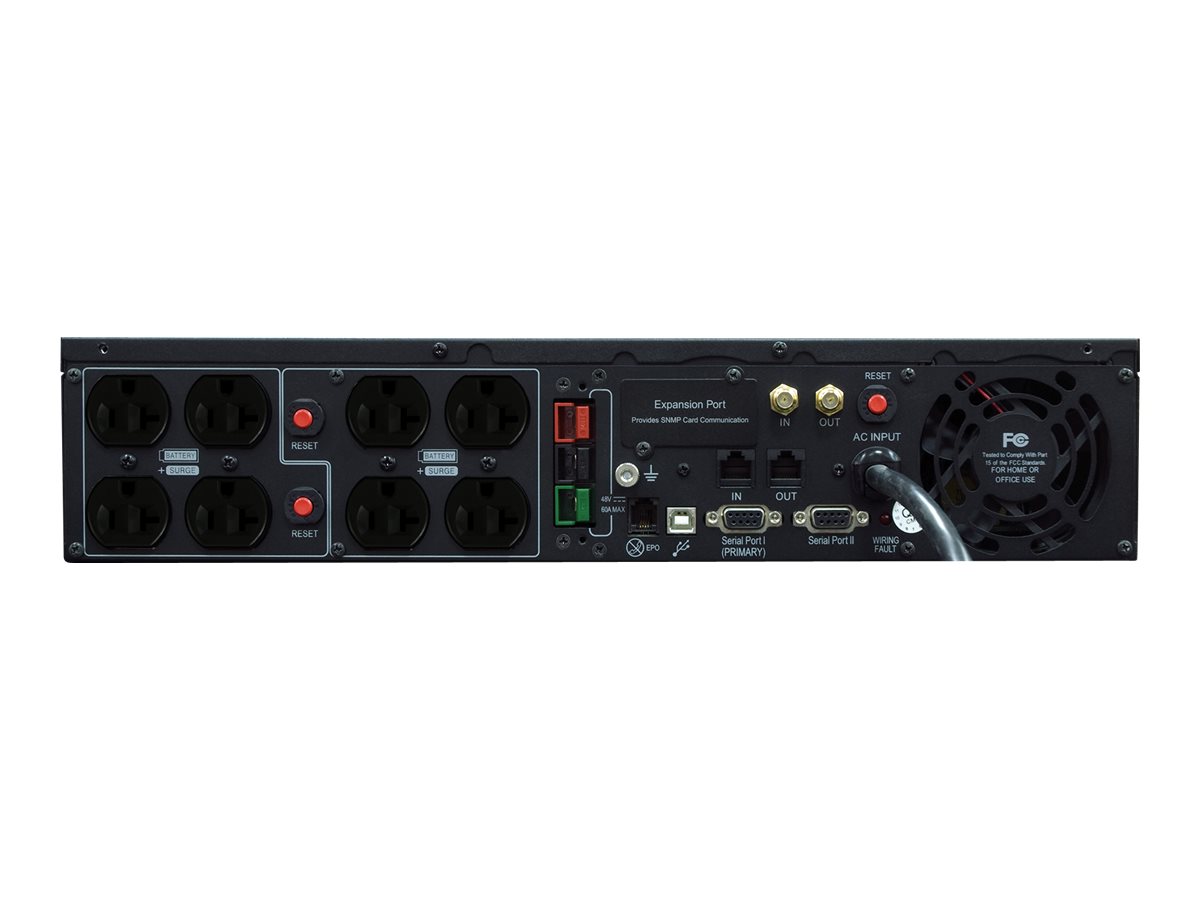

  • 2 x management (RS-232) - 9 pin D-Sub (DB-9)
  • 1 x management (USB) - 4 pin USB Type B
General
Device TypeUPS - external
Height (Rack Units)2U
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Cables Included
  • USB cable - external
  • 2 x serial cable - external
  • Power cable - integrated - 3 m
Compliant StandardsFCC Class B certified, ISO 9001, cUL, DOC-B, RoHS
Equipment Protection Value300000 US Dollars
FeaturesAudible alarm, LCD display, Automatic Voltage Regulation (AVR), GreenPower UPS Technology
Networking
Remote Management InterfaceRS-232, USB
Power Device
Circuit ProtectionCircuit breaker
Dataline Surge ProtectionNetwork/phone line - RJ-45/RJ-11
Frequency Provided60 Hz
Frequency Required47 - 63 Hz
Input Connectors1 x power NEMA 5-20
Input VoltageAC 90-140 V
Output VoltageAC 120 V ± 5% - 60 Hz
Output WaveformSinewave
Power Capacity1650 watt / 2190 VA
Power Output Connectors Details8 x power NEMA 5-20
Surge Energy Rating2060 joules
Surge SuppressionYes
UPS TechnologyLine interactive
Software / System Requirements
OS RequiredMicrosoft Windows 2000, Microsoft Windows XP, Microsoft Windows XP 64-bit Edition, Microsoft Windows 7, Microsoft Windows 2003, Microsoft Windows Server 2008, Microsoft Windows Vista (32/64 bits)
Software IncludedPowerPanel Business Edition
